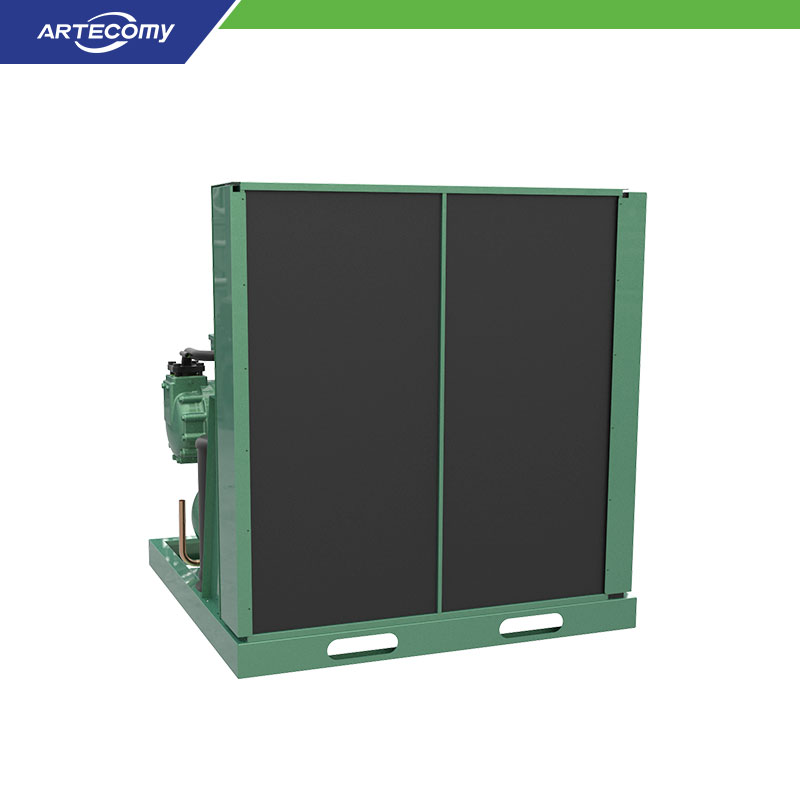

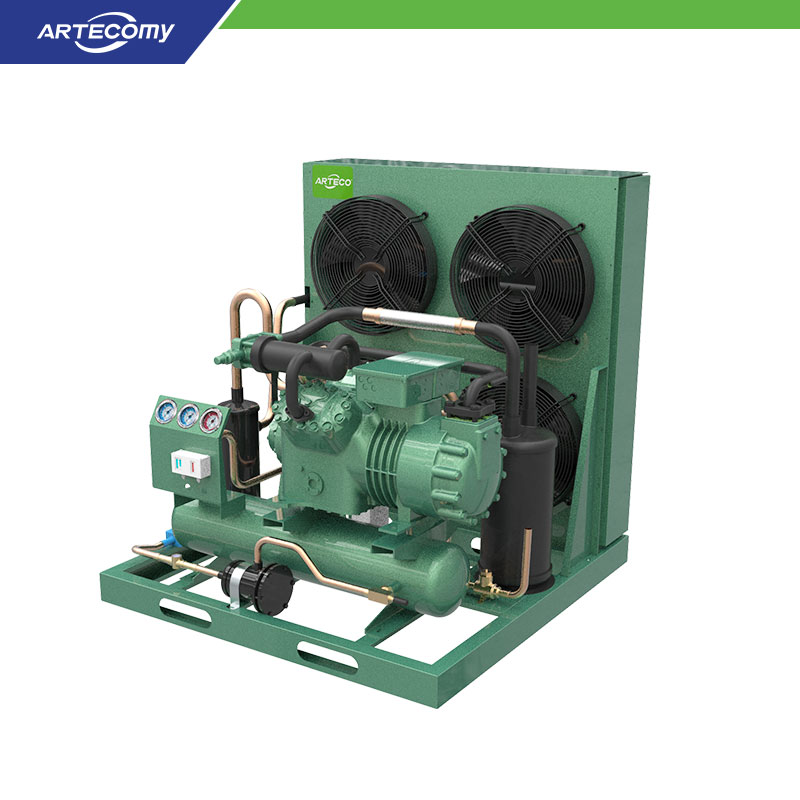

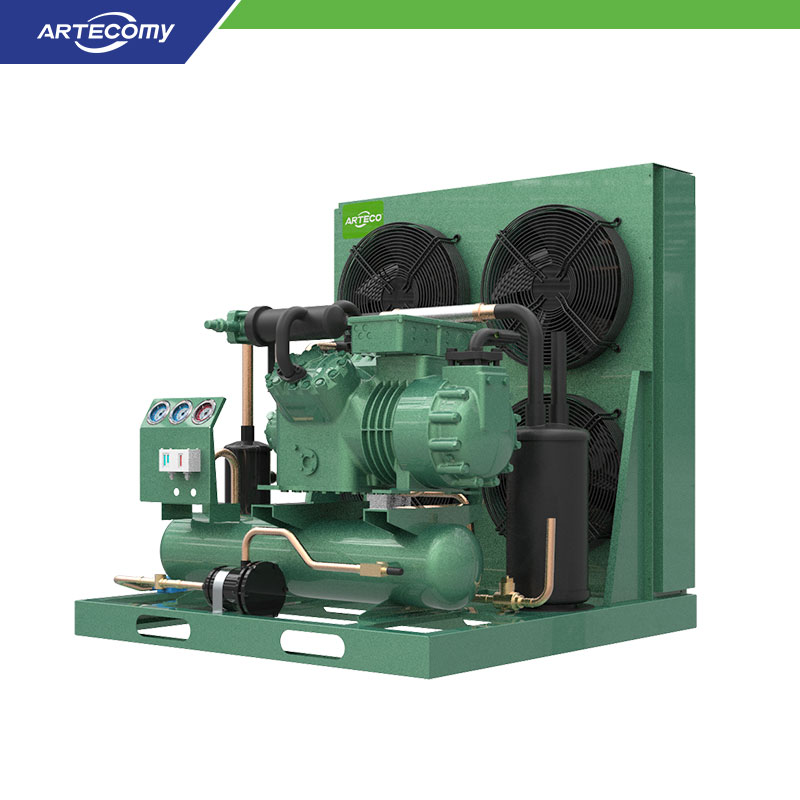

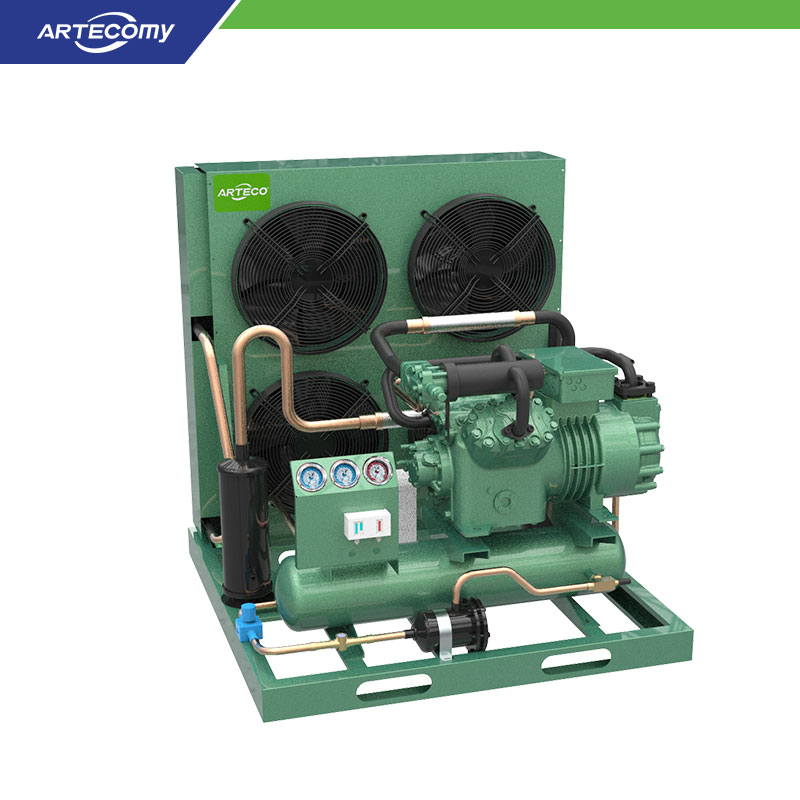

Bitzer S6H-20.2Y 20HP Two-Stage Condensing Unit for Large-Scale Cold Room Systems

Bitzer S6H-20.2Y 20HP Two-Stage Condensing Unit for Large-Scale Cold Room Systems

Product Series:

CP Air-Cooled

Compressor Brand:

Bitzer

Compressor Model:

S6H-20.2Y

Order(MOQ):

Power Supply:

3P/380V/50Hz

Application Temperature:

-30℃～-50℃

Product Origin:

Germany

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

The CP series open-type air-cooled condensing units are primarily developed for cold storage applications.

1. High-quality and reliable BlTZER semi-hermetic piston refrigeration compressors.

2. The air-cooled condenser, compressor, and various accessories are installed on a single frame, resulting in a compact structure and convenient operation and maintenance.

3. It uses an external rotor fan, which has low noise and high efficiency.

4. It can accommodate refrigerants such as R22, R404A, R507A, R448A, and R449A.

Product Parameter

Model				CPBBF05J	CPBBF08J	CPBBF12J	CPBBF16J	CPBBF20J	CPBBF25J	CPBBF30J
Power Supply				3P/380V/50Hz
Apply Temp				-30℃~-50℃
Compressor	Model			S4T-5.2Y	S4N-8.2Y	S4G-12.2Y	S6J-16.2Y	S6H-20.2Y	S6G-25.2Y	S6F-30.2Y
Compressor	Max.1(A)			14.0	17.0	24.0	31.0	37.0	45.0	53.0
Capacity/Power KW)	Evap.	R404A R507A	-30℃	7.0/5.0	9.8/7.2	15.1/10.8	21.0/15.4	24.1/17.9	27.5/20.5	32.5/24.4
			-35℃	5.7/4.6	8.1/6.5	12.6/9.8	17.6/13.8	20.3/16.0	23.1/18.4	27.3/21.9
			-40℃	4.6/4 1	6.5/5.9	10.4/8.8	14.5/12.4	16.7/14.3	19.1/16.4	22.6/19.7
			-45℃	3.7/3.7	5.2/5.2	8.4/7.8	11.8/11.0	13.6/12.7	15.5/14.6	18.5/17.5
			-50℃	2.9/3.2	4.4/4.4	6.6/6.9	9.4/9.7	10.9/11.2	12.4/12.9	14.8/15.4
			-55℃	2.2/2.8	3.1/4.0	5.1/6.0	7.3/8.4	8 5/9.8	9.7/11.2	11.5/13.4
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			0.9	1.2	1.8	2.4	4.4	4.4	5.1
	Power(W)			216x2	290x2	216x4	290x4	548x4	548x4	670x4
	Rev.(r/min)			1380	1380	1380	1380	1380	1380	1380
Suction Line(mm)				Φ28	Φ28	Φ35	Φ42	Φ42	Φ42	Φ42
Liquid Line(mm)				Φ12.7	Φ16	Φ16	Φ22	Φ22	Φ22	Φ22
Weight			kg	237	269	343	427	472	500	525
Size	L(mm)			1050	1260	1260	1300	1650	1650	1650
	W(mm)			1100	1100	1100	1250	1250	1250	1250
	H(mm)			740	890	1340	1340	1630	1630	1630
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K
