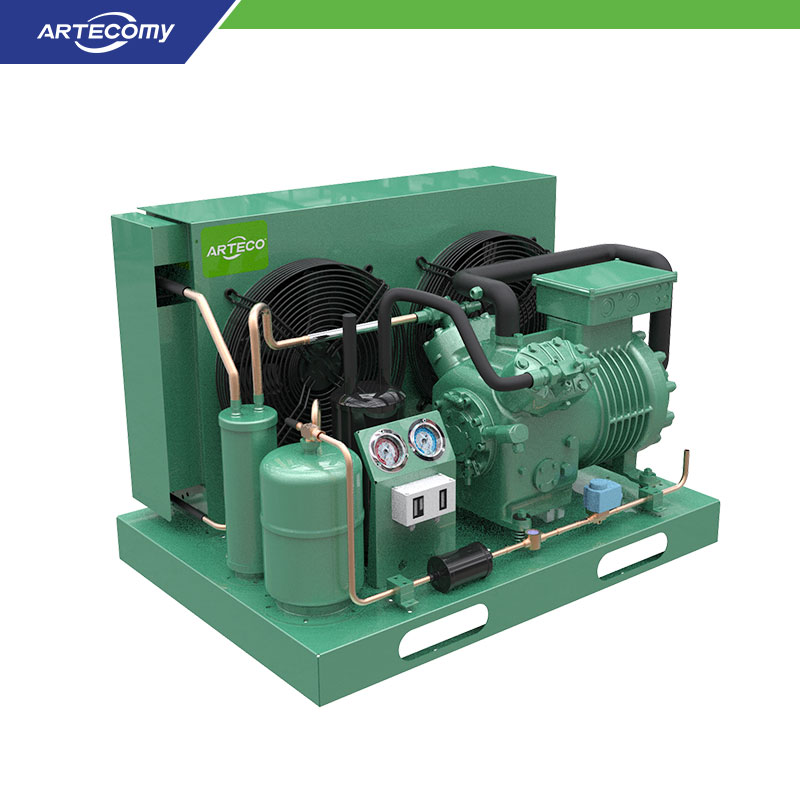

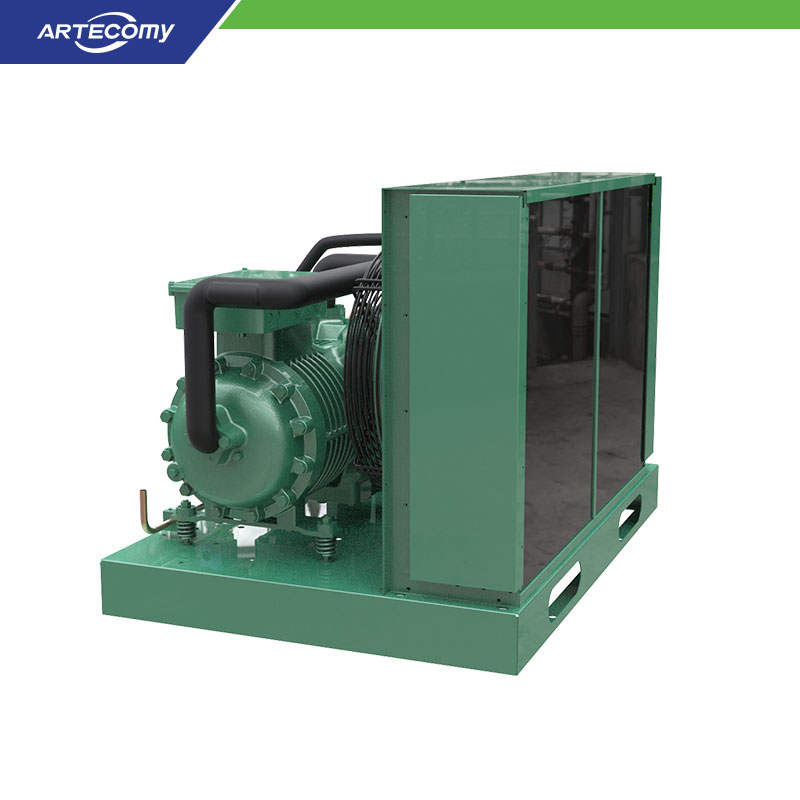

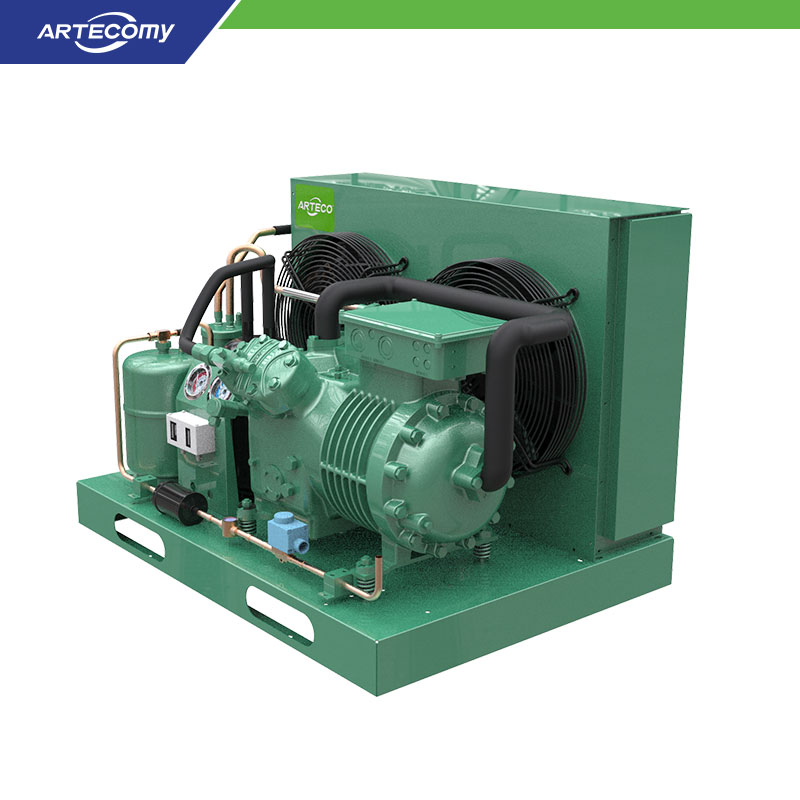

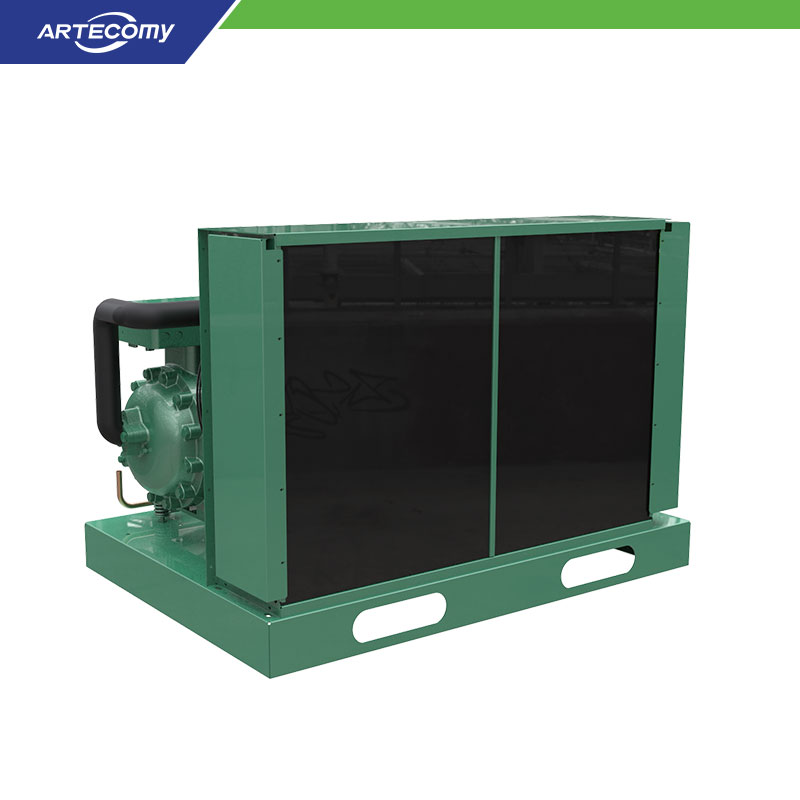

The CP series open-type air-cooled condensing units are primarily developed for cold storage applications.
1. High-quality and reliable BlTZER semi-hermetic piston refrigeration compressors.
2. The air-cooled condenser, compressor, and various accessories are installed on a single frame, resulting in a compact structure and convenient operation and maintenance.
3. It uses an external rotor fan, which has low noise and high efficiency.
4. It can accommodate refrigerants such as R22, R404A, R507A, R448A, and R449A.
Product Parameter
Model | CPBBF05J | CPBBF08J | CPBBF12J | CPBBF16J | CPBBF20J | CPBBF25J | CPBBF30J | |||
Power Supply | 3P/380V/50Hz | |||||||||
Apply Temp | -30℃~-50℃ | |||||||||
Compressor | Model | S4T-5.2Y | S4N-8.2Y | S4G-12.2Y | S6J-16.2Y | S6H-20.2Y | S6G-25.2Y | S6F-30.2Y | ||
Max.1(A) | 14.0 | 17.0 | 24.0 | 31.0 | 37.0 | 45.0 | 53.0 | |||
Capacity/Power KW) | Evap. | R404A R507A | -30℃ | 7.0/5.0 | 9.8/7.2 | 15.1/10.8 | 21.0/15.4 | 24.1/17.9 | 27.5/20.5 | 32.5/24.4 |
-35℃ | 5.7/4.6 | 8.1/6.5 | 12.6/9.8 | 17.6/13.8 | 20.3/16.0 | 23.1/18.4 | 27.3/21.9 | |||
-40℃ | 4.6/4 1 | 6.5/5.9 | 10.4/8.8 | 14.5/12.4 | 16.7/14.3 | 19.1/16.4 | 22.6/19.7 | |||
-45℃ | 3.7/3.7 | 5.2/5.2 | 8.4/7.8 | 11.8/11.0 | 13.6/12.7 | 15.5/14.6 | 18.5/17.5 | |||
-50℃ | 2.9/3.2 | 4.4/4.4 | 6.6/6.9 | 9.4/9.7 | 10.9/11.2 | 12.4/12.9 | 14.8/15.4 | |||
-55℃ | 2.2/2.8 | 3.1/4.0 | 5.1/6.0 | 7.3/8.4 | 8 5/9.8 | 9.7/11.2 | 11.5/13.4 | |||
Fan | Voltage (V) | 3P/380V/50Hz | ||||||||
Current(A) | 0.9 | 1.2 | 1.8 | 2.4 | 4.4 | 4.4 | 5.1 | |||
Power(W) | 216x2 | 290x2 | 216x4 | 290x4 | 548x4 | 548x4 | 670x4 | |||
Rev.(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |||
Suction Line(mm) | Φ28 | Φ28 | Φ35 | Φ42 | Φ42 | Φ42 | Φ42 | |||
Liquid Line(mm) | Φ12.7 | Φ16 | Φ16 | Φ22 | Φ22 | Φ22 | Φ22 | |||
Weight | kg | 237 | 269 | 343 | 427 | 472 | 500 | 525 | ||
Size | L(mm) | 1050 | 1260 | 1260 | 1300 | 1650 | 1650 | 1650 | ||
W(mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1250 | 1250 | |||
H(mm) | 740 | 890 | 1340 | 1340 | 1630 | 1630 | 1630 | |||
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K |
