Bitzer 4GE-23Y 23HP Condensing Unit for Large Refrigeration Systems

Bitzer 4GE-23Y 23HP Condensing Unit for Large Refrigeration Systems

Product Series:

CP Air-Cooled

Compressor Brand:

Bitzer

Compressor Model:

4GE-23Y

Order(MOQ):

Power Supply:

3P/380V/50Hz(Accept customization)

Application Temperature:

-15℃～-35℃

Refrigerant:

R22, R404A, R507A

Product Origin:

Germany

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

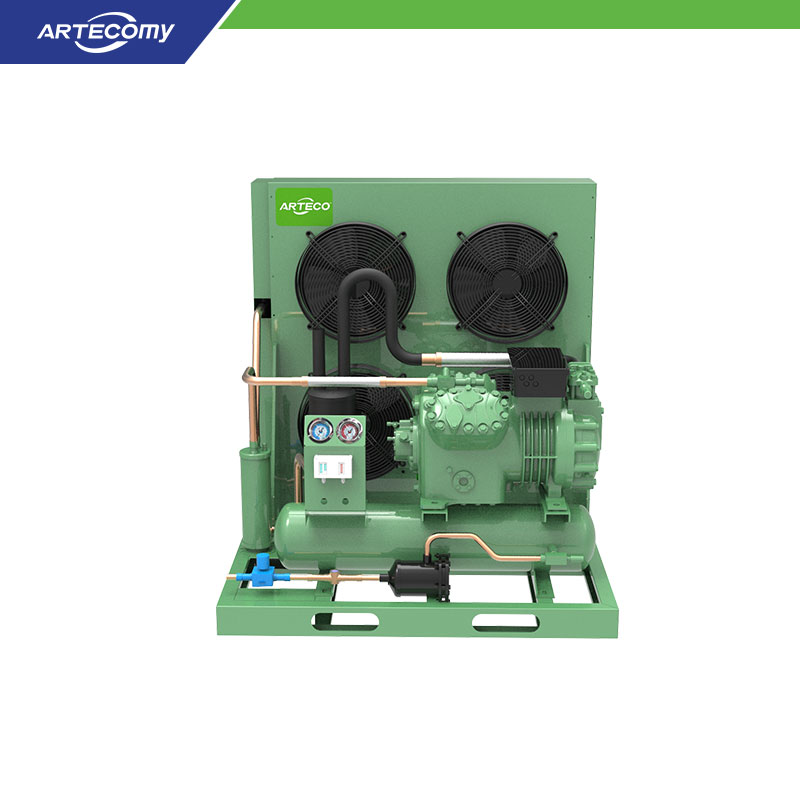

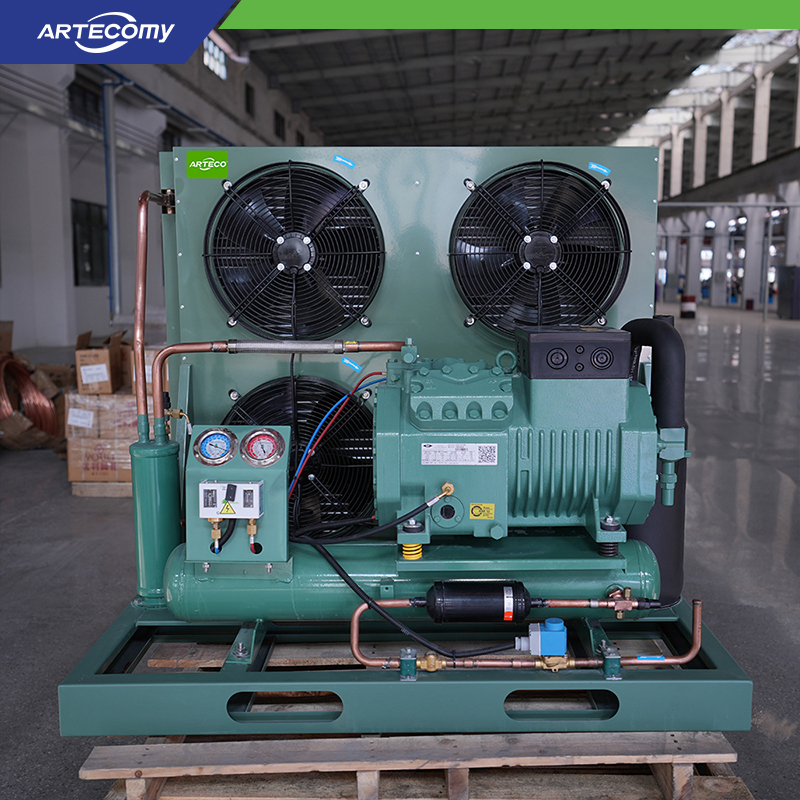

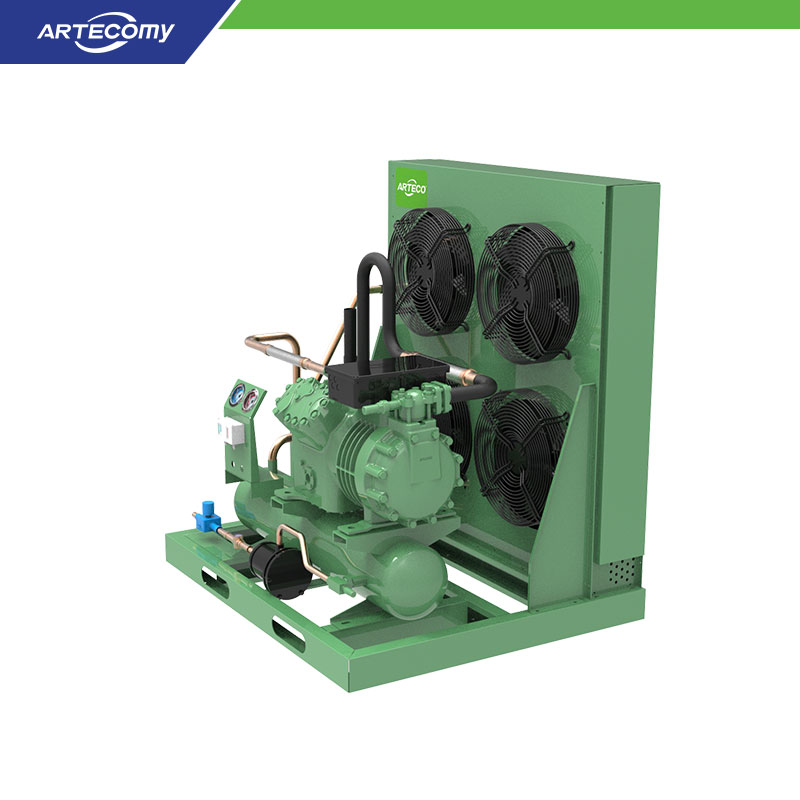

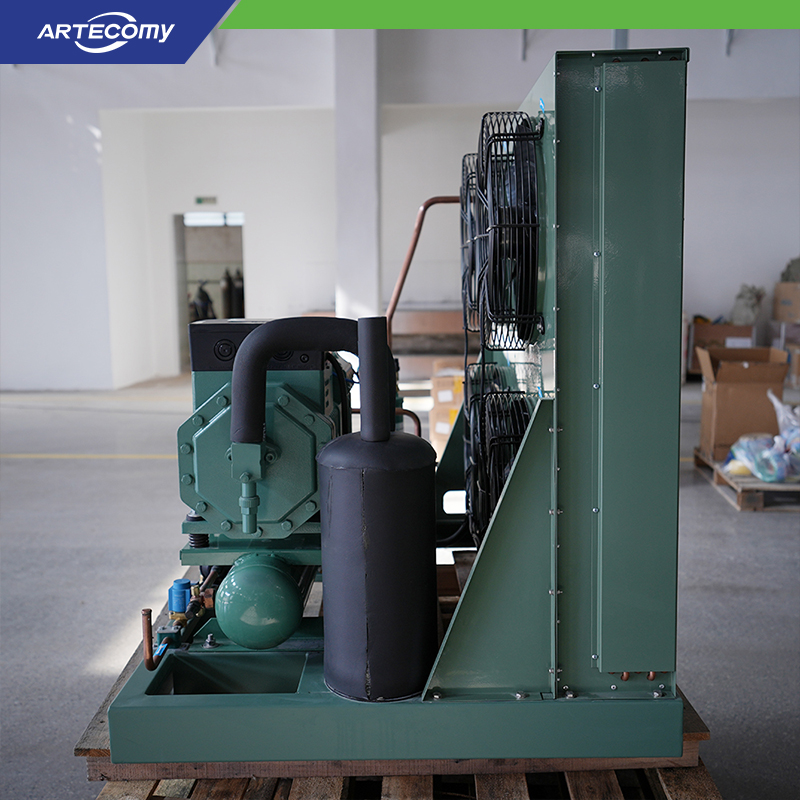

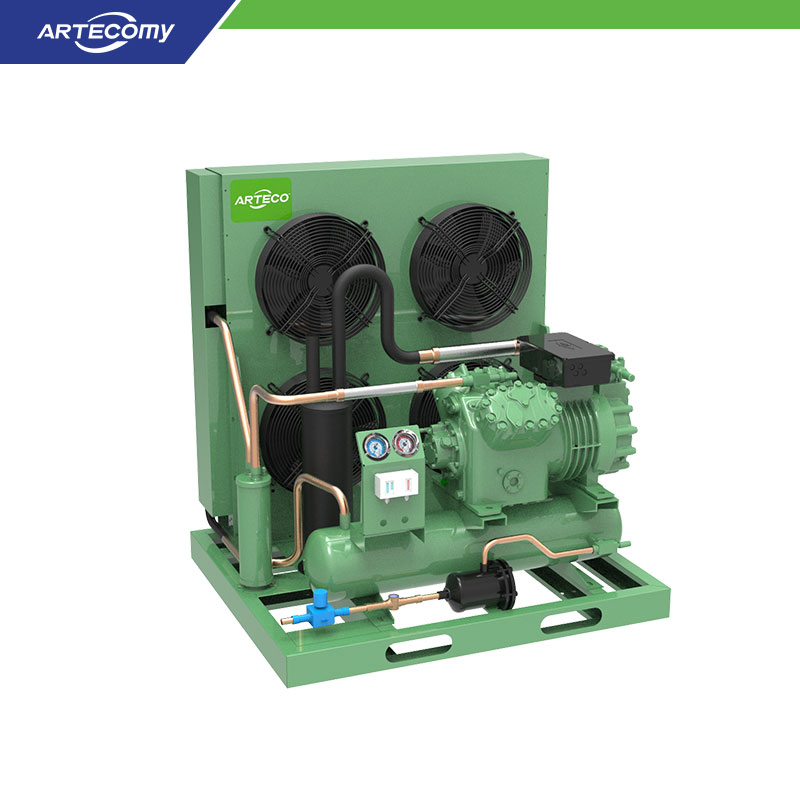

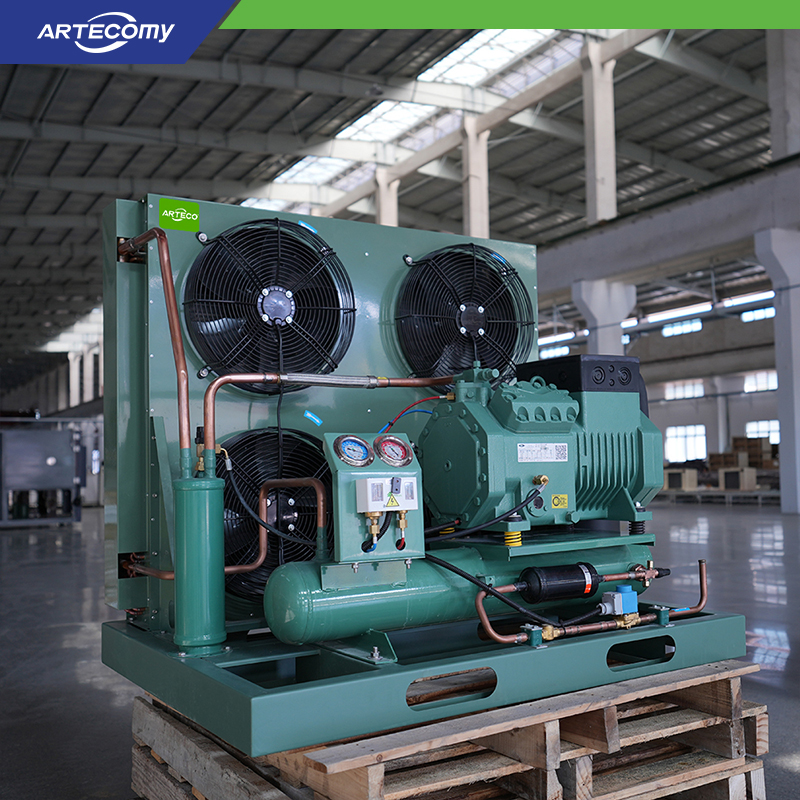

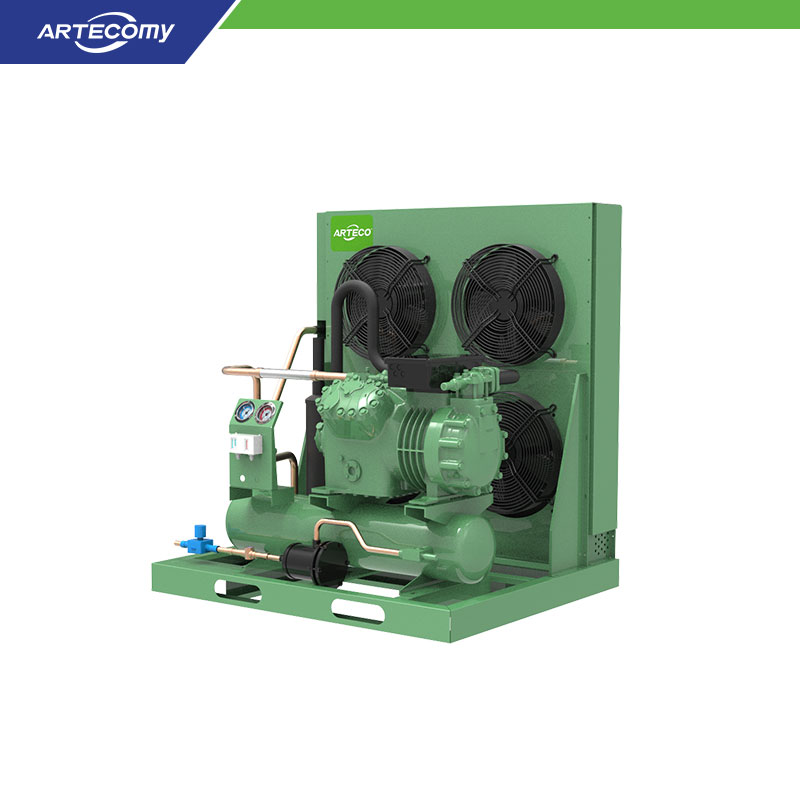

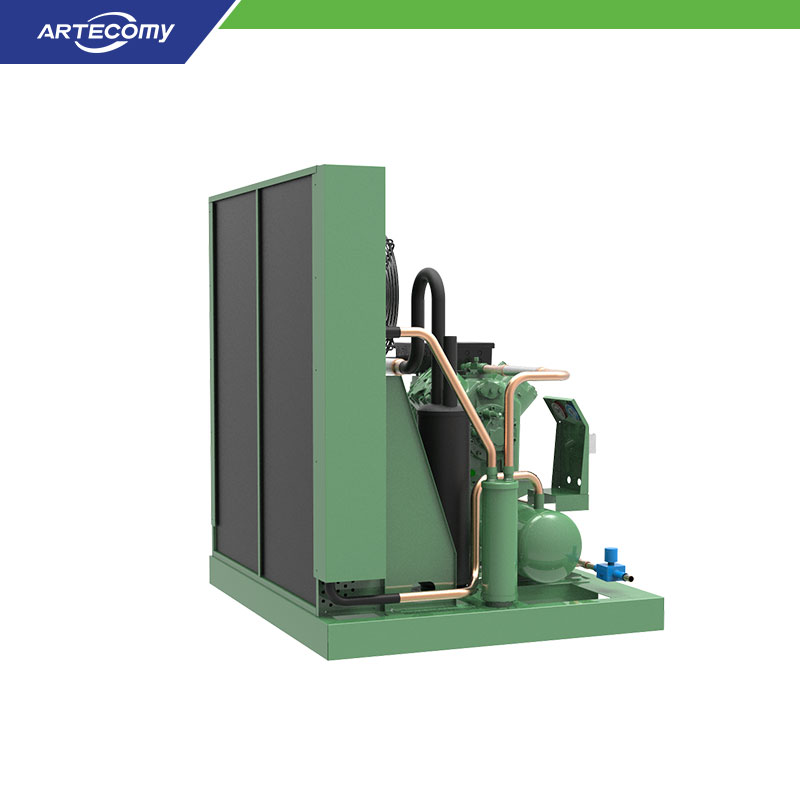

CP Series Open-Type Air-Cooled Condensing Units.

Designed for demanding cold storage applications, the CP series delivers reliable performance within a temperature range of -15°C to -35°C. Key features include:

1. Robust Compressor: Utilizes high-quality, reliable Bitzer semi-hermetic reciprocating refrigeration compressors.

2. Integrated Design: Compact frame incorporating the air-cooled condenser, compressor, and essential accessories for simplified operation and maintenance.

3. Efficient Cooling: Employs an external rotor fan for quiet and high-efficiency airflow.

4. Refrigerant Versatility: Compatible with a range of refrigerants, including R22, R404A, R507A, R448A, and R449A.

Product Parameter

Model				CPBBF15L	CPBBF18L	CPBBF23L	CPBBF28L	CPBBF28L	CPBBF34L	CPBBF44L
Power Supply				3P/380V/50Hz
Apply Temp.				-15℃~-35℃
Compressor	Model			4JE-15Y	4HE-18Y	4GE-23Y	4FE-28Y	6HE-28Y	6GE-34Y	6FE-44Y
Compressor	Max.1(A)			30.8	36.7	43.9	52.8	65.5	65.5	83.2
Capacity/Power KW)	Evap.	R22	-25℃	14.7/9.0	17.1/10.4	19.8/12.5	23.6/14.9	25.6/15.6	29.7/18.7	35.7/22.6
			-30℃	11.0/7.6	12.7/8.9	14.8/10.7	17.7/12.8	19.1/13.3	22.2/16.0	26.9/19.3
			-35℃	7.9/6.3	9.1/7.4	10.6/8.9	12.7/10.6	13.7/11.0	15.9/13.3	19.5/16.1
		R404A R507A	-25℃	15.3/10.1	18.2/12.0	21.5/14.3	25.7/17.1	26.8/17.7	32.4/21.8	38.5/26.2
			-30℃	11.7/8.6	14.1/10.3	16.7/12.3	20.0/14.7	20.6/15.2	25.3/18.9	29.9/22.7
			-35℃	8.7/7.3	10.5/8.7	12.6/10.4	15.1/12.5	15.5/12.8	19.4/16.1	22.7/19.3
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			2.4	2.4	2.4	4.4	4.4	4.4	5.1
	Power(W)			290x4	290x4	290x4	548x4	548x4	548x4	670×4
	Rev.(r/min)			1380	1380	1380	1380	1380	1380	1380
Suction Line(mm)				Φ42	Φ42	Φ54	Φ54	Φ54	Φ54	Φ54
Liquid Line(mm)				Φ22	Φ22	Φ22	Φ22	Φ22	Φ22	Φ28
Weight			kg	375	374	396	451	481	493	534
Size	L(mm)			1260	1260	1260	1650	1650	1650	1650
	W(mm)			1100	1100	1180	1180	1180	1180	1180
	H(mm)			1340	1340	1340	1630	1630	1630	1630
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K
