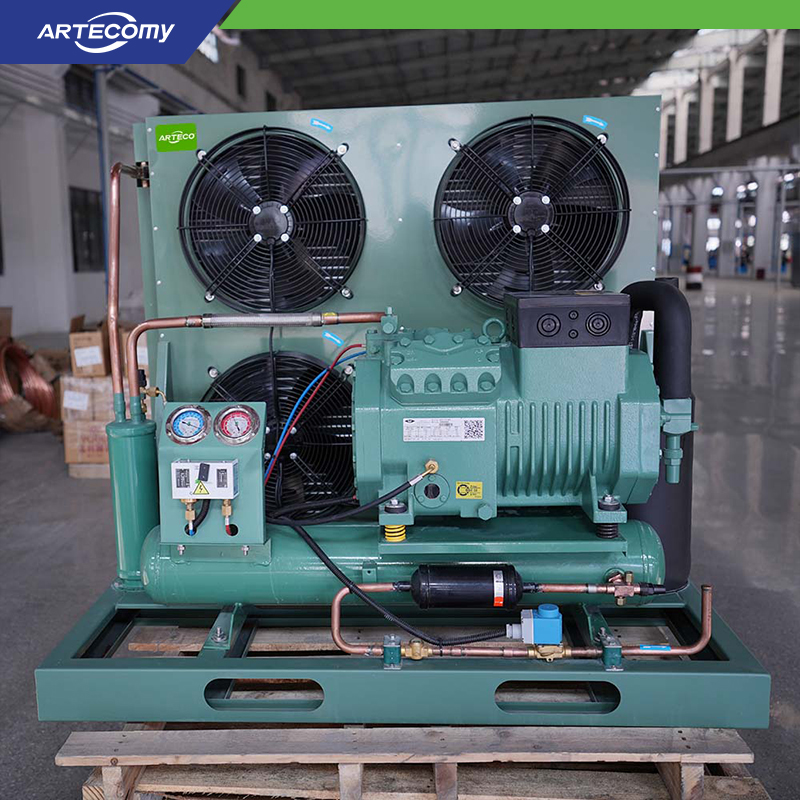

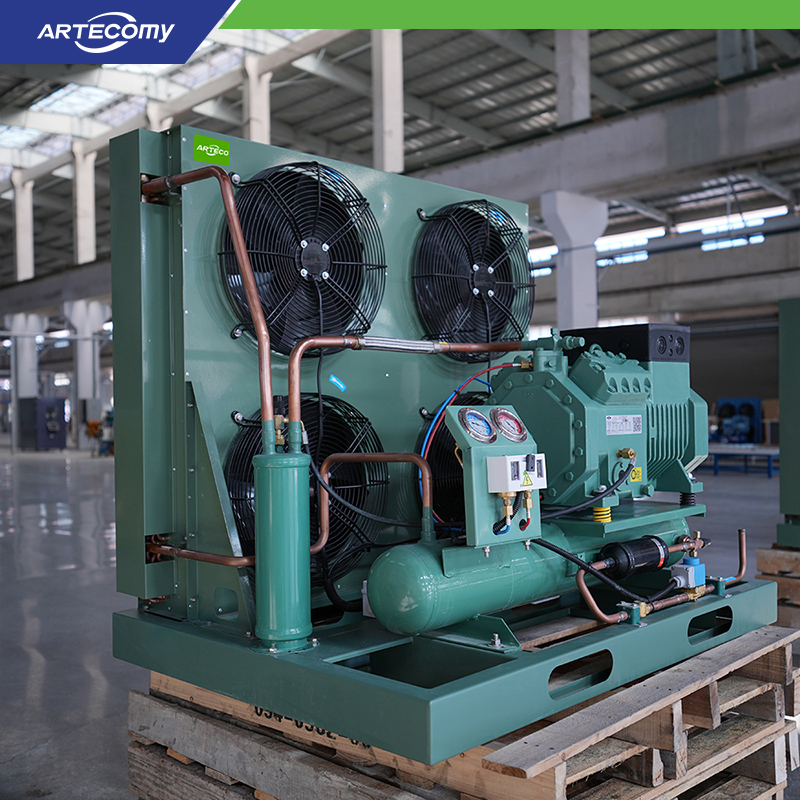

Bitzer 4VES-10Y 10HP Condensing Unit for Food Cold Storage

Bitzer 4VES-10Y 10HP Condensing Unit for Food Cold Storage

Product Series:

CP Air-Cooled

Compressor Brand:

Bitzer

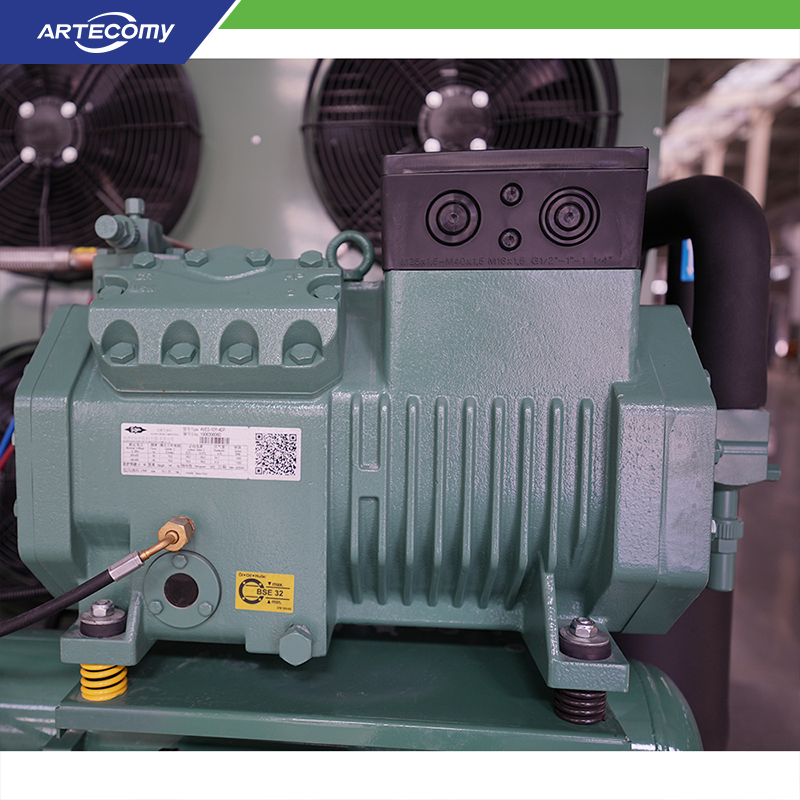

Compressor Model:

4VES-10Y

Order(MOQ):

Power Supply:

3P/380V/50Hz(Accept customization)

Application Temperature:

5℃～15℃

Refrigerant:

R22, R404A, R507A

Product Origin:

Germany

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

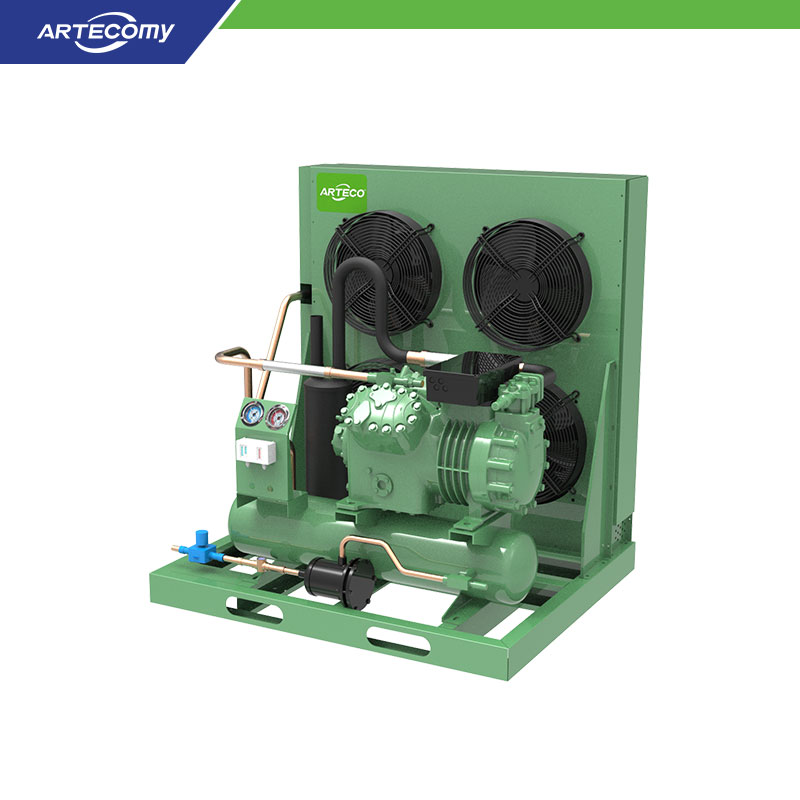

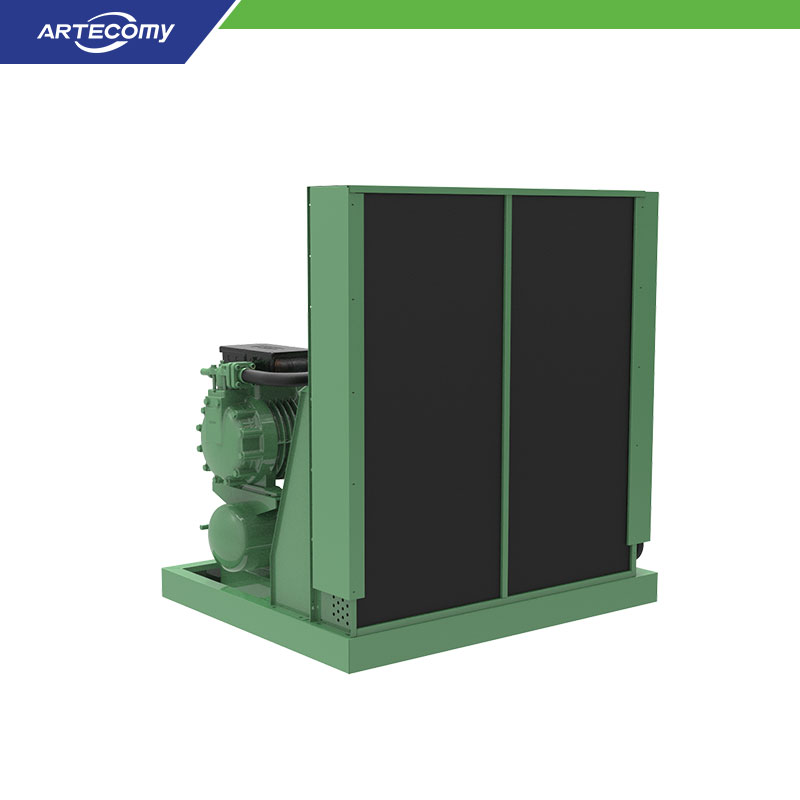

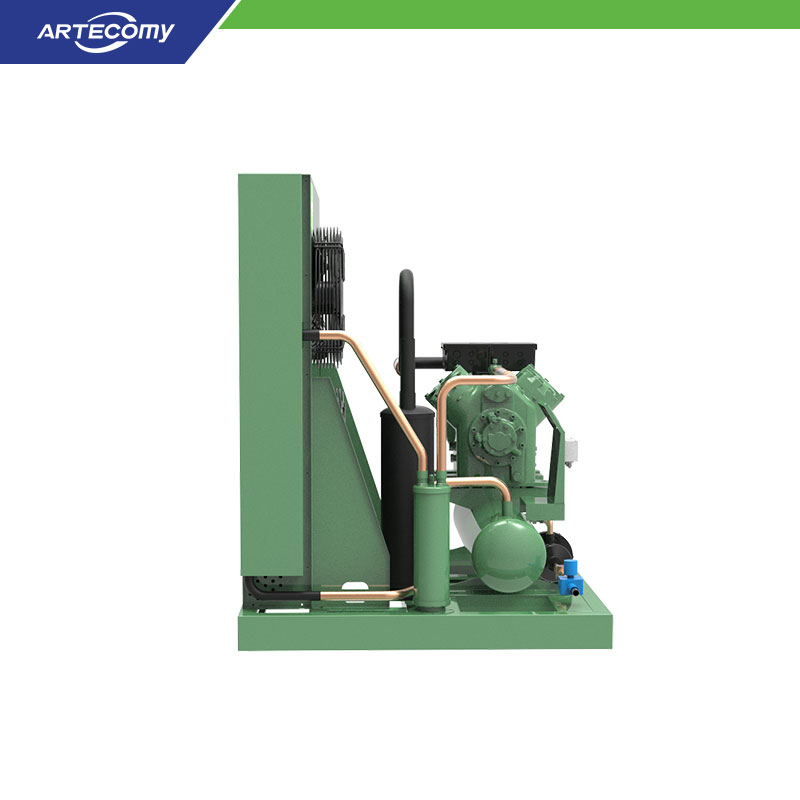

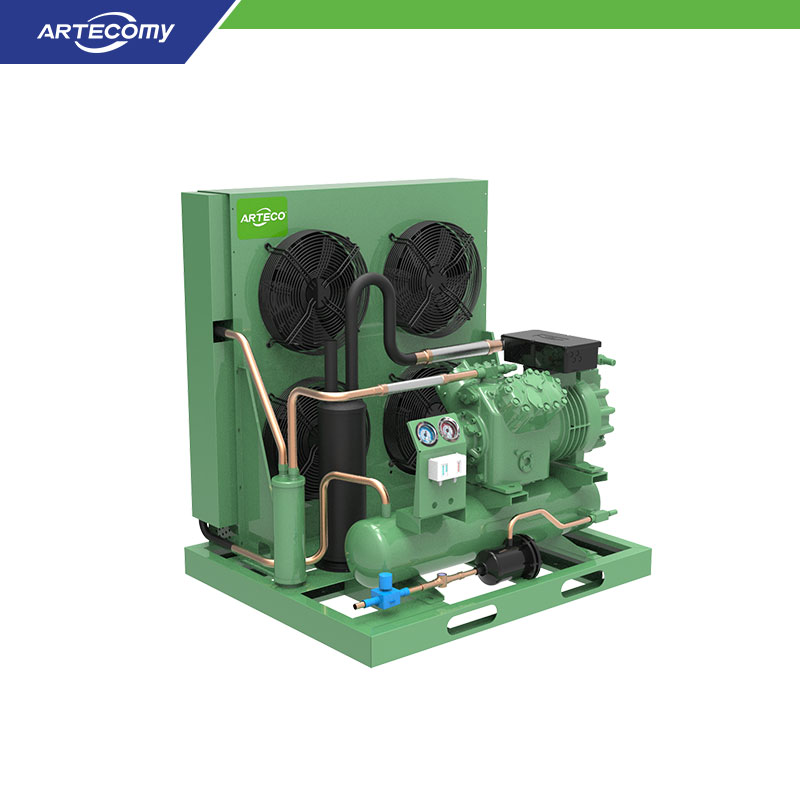

CP Series Open-Type Air-Cooled Condensing Units.

This series features an integrated design that combines brand bitzer compressor, making it a strategic investment for businesses aiming to enhance their cold storage solutions. Operating effectively within a temperature range of 5°C to 15°C, these units are perfect for maintaining the freshness of your products while optimizing energy consumption.

Product Parameter

Model				CPBBF02H	CPBBF03H	CPBBF04H	CPBBF05H	CPBBF06H	CPBBF07H	CPBBF09H	CPBBF10H
Power Supply				3P/380V/50Hz
Apply Temp.				5℃~15℃
Compressor	Model			2GES-2Y	2DES-3Y	2CES-4Y	4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4VES-10Y
Compressor	Max.I(A)			5.0	8.6	10.0	10.8	13.6	16.5	20.2	19.9
Capacity/Power KW)	Evap.	R22	10℃	7.4/2.1	13.3/3.4	16.8/4.3	18.2/4.5	23.1/5.8	26.7/6.6	33.6/8.5	37.2/8.7
			5℃	6.3/2.0	11.3/3.2	14.3/4.1	15.5/4.3	19.6/5.5	22.7/6.3	28.8/8.0	31.5/8.2
			0℃	5.3/1.9	9.5/3.1	12.0/3.9	12.9/4.1	16.4/5.2	19.0/6.0	24.0/7.6	26.1/7.7
		R404A R507A	7.5℃	6.6/2.3	12.2/3.8	15.4/4.8	17.0/5.1	21.4/6.5	25.1/7.5	32.5/9.5	33.4/9.7
			5℃	6.2/2.2	11.5/3.7	14.5/4.6	16.0/4.9	20.1/6.3	23.6/7.2	29.7/9.1	31.2/9.3
			0℃	5.2/2.1	9.6/3.4	12.2/4.3	13.3/4.6	16.7/5.9	19.6/6.8	24.5/8.7	25.8/8.6

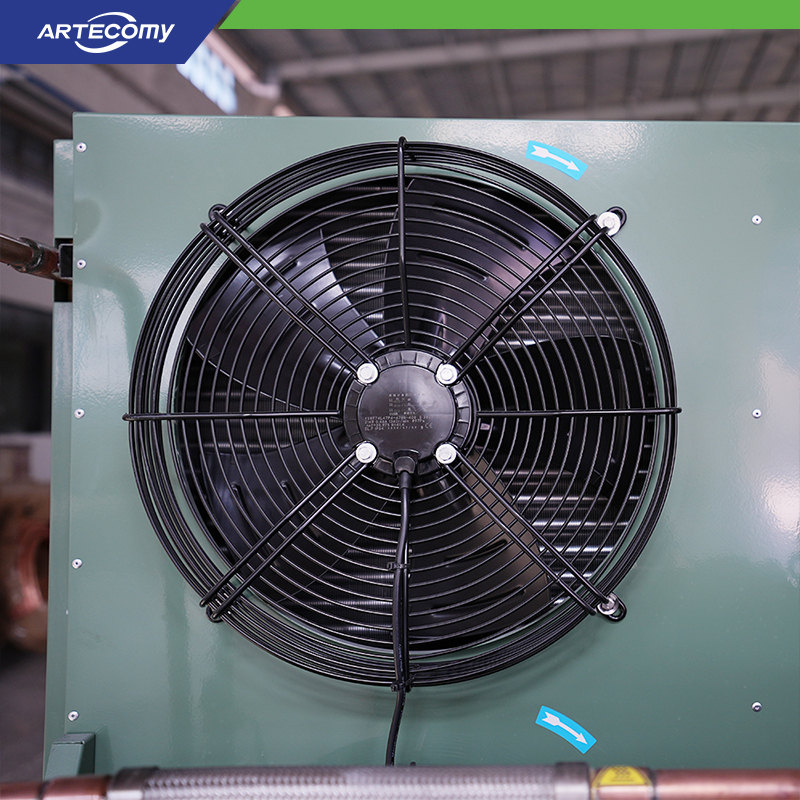

Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			0.5	0.9	0.9	0.9	1.2	1.2	1.8	1.8
	Power(W)			216×1	216×2	216×2	216×2	290×2	290×2	216×4	216×4
	Rev.(r/min)			1380	1380	1380	1380	1380	1380	1380	1380
Suction Line(mm)				φ16	φ22	φ22	φ22	φ28	φ28	φ28	φ28
Liquid Line(mm)				φ9.52	φ12.7	φ12.7	φ12.7	φ12.7	φ16	φ16	φ16
Weight			kg	106	155	164	183	206	216	249	296
Size	L (mm)			850	1050	1050	1050	1260	1260	1260	1260
	W (mm)			750	780	780	780	850	850	950	950
	H (mm)			590	740	740	740	890	890	1340	1340
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
