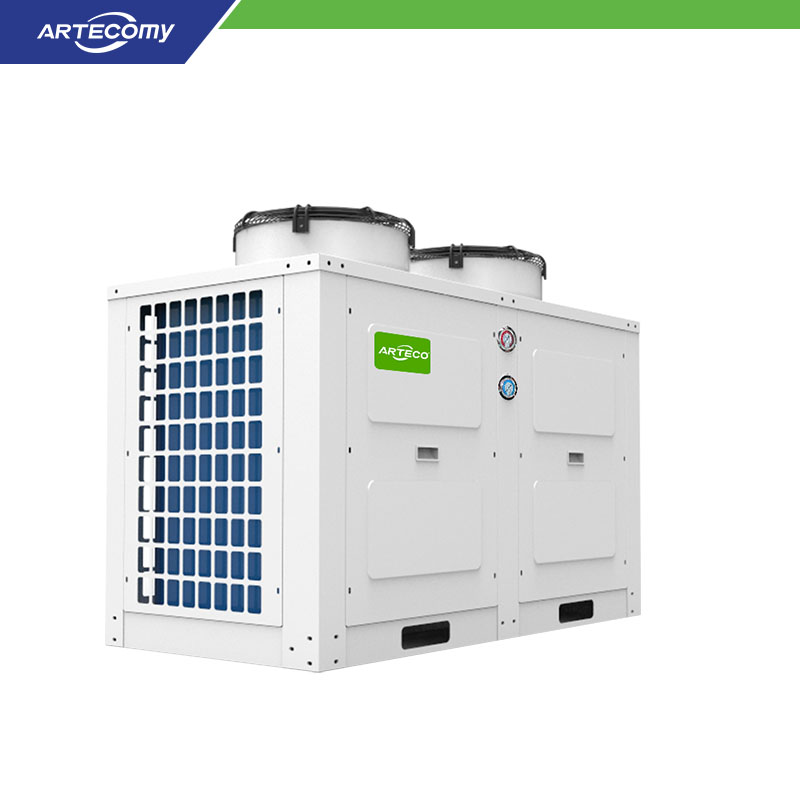

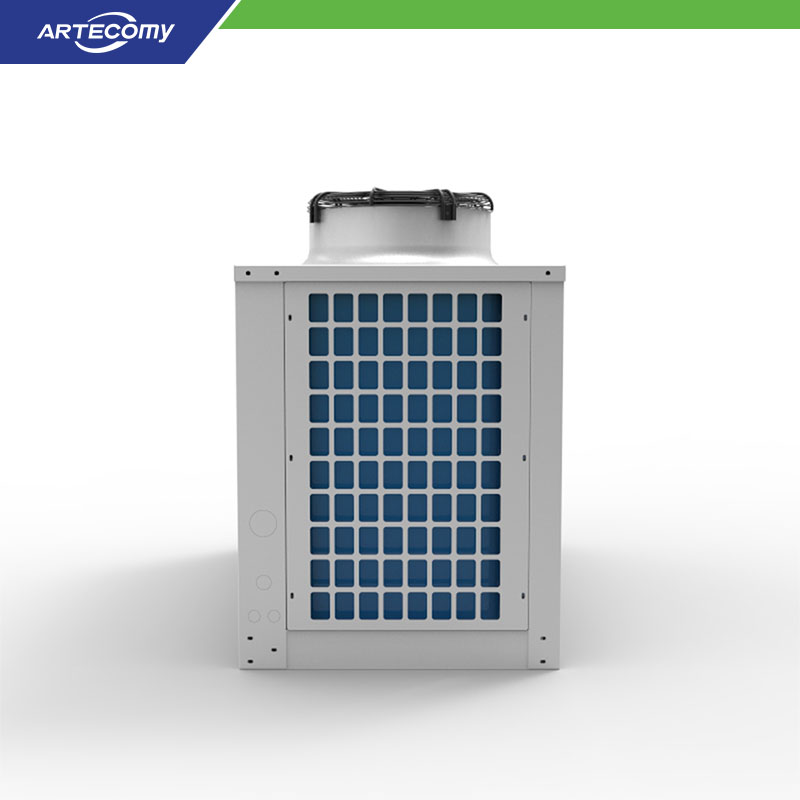

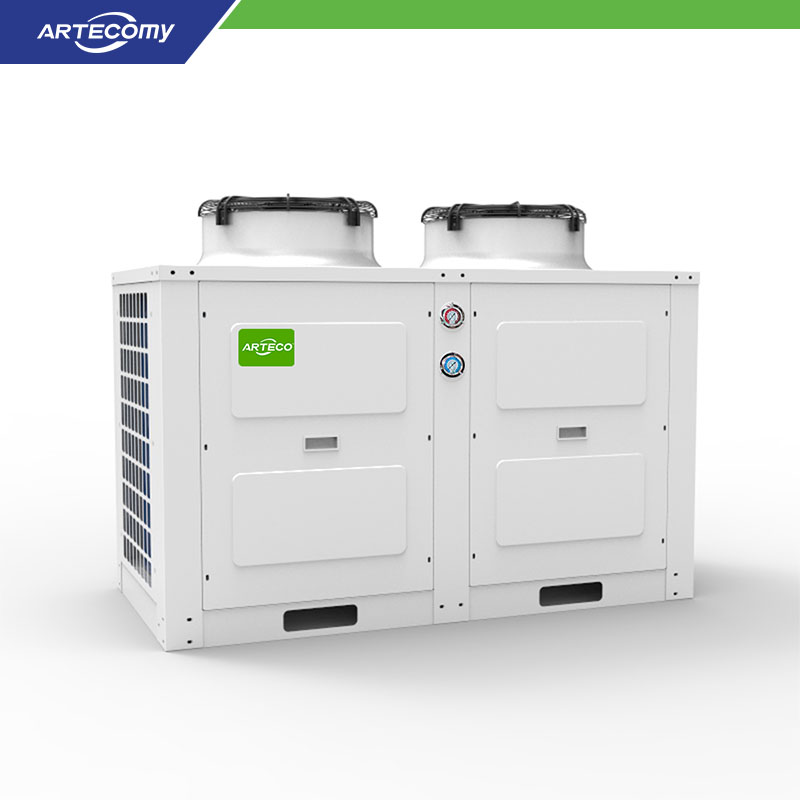

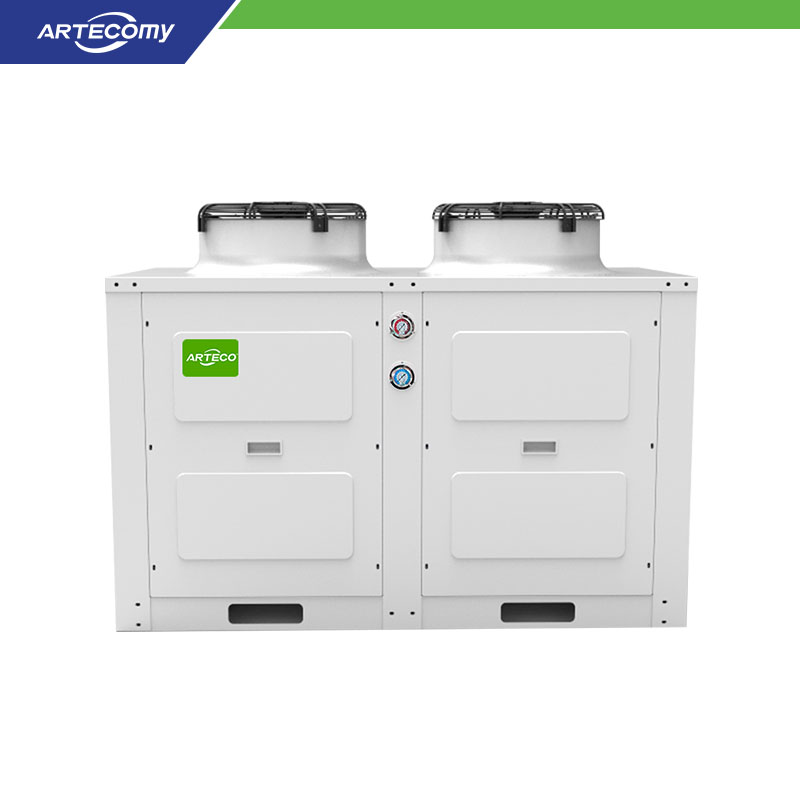

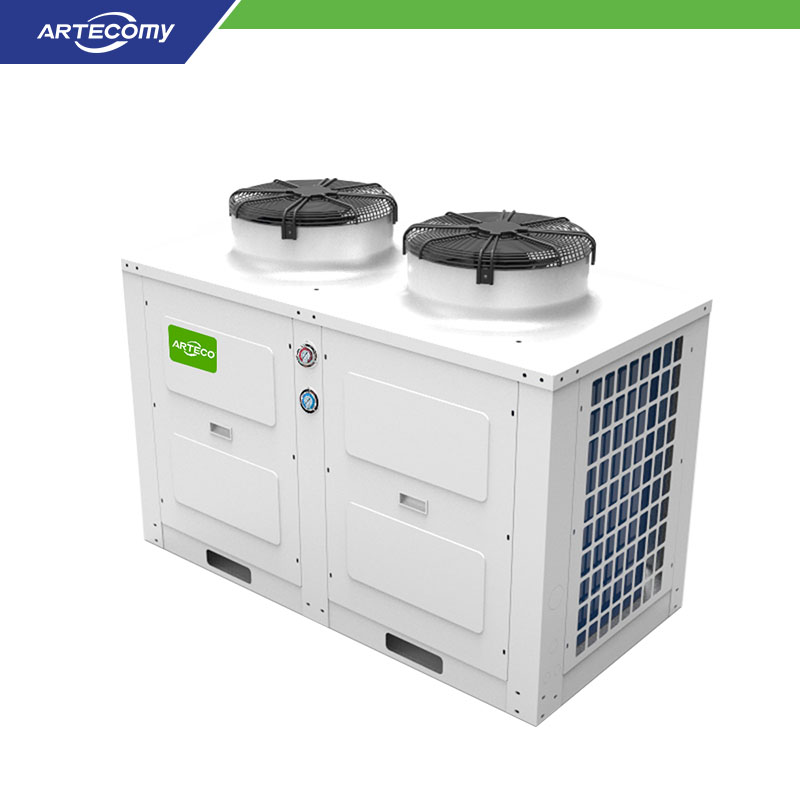

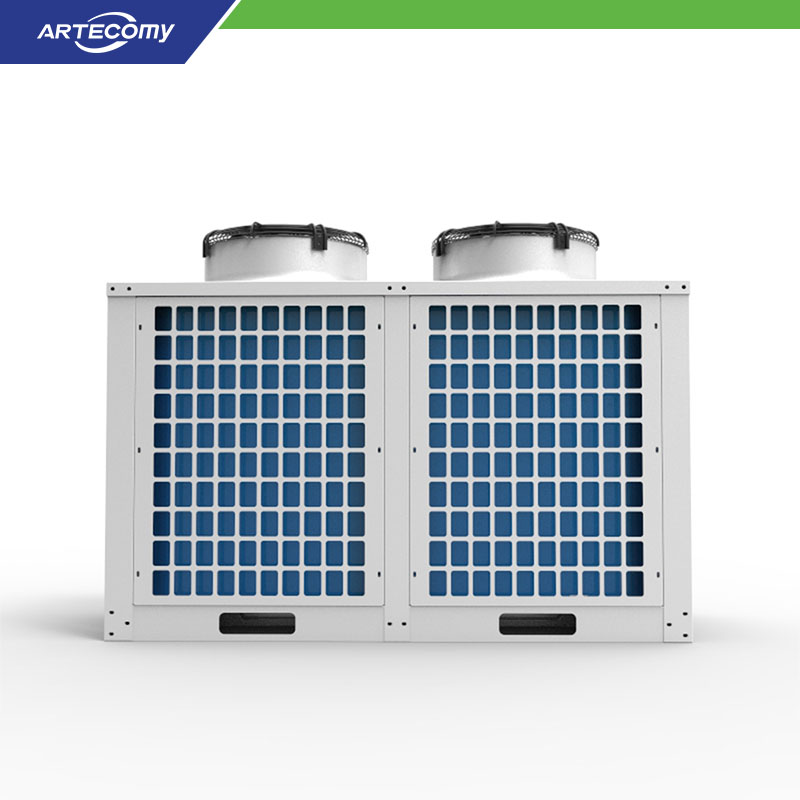

Bitzer 4DES-7Y 7HP Piston Unit Box Type for Frozen Meat Intermediate Storage

Product Series:

BT Air-Cooled

Compressor Brand:

Bitzer

Compressor Model:

4DES-7Y

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Application Temperature:

-5℃～5℃

Refrigerant:

R22, R404A, R507A

Product Origin:

Germany

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

The BT Series condensing units offers high-efficiency, box-type condensing units engineered for demanding cold storage applications.

Key Features:

Bitzer Compressors:Proven reliability with Bitzer semi-hermetic piston compressors.

Temperature range:-5℃ to +5℃.

Optimized Airflow:Large radius air duct design for efficient airflow and reduced noise.

Noise Reduction:Honeycomb sound-absorbing panels minimize operational noise.

Efficient Condensation:U-shaped condenser maximizes heat exchange.

Refrigerant Compatibility:Supports R22, R404A, R507A, R448A, and R449A.

Product Parameter

Model				BTBBF05M	BTBBF06M	BTBBF07M	BTBBF09M	BTBBF10M
Power Supply				3P/380V/50Hz
Apply Temp.				-5℃~5℃
Compressor	Model			4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4VES-10Y
Compressor	Max.I(A)			10.8	13.6	16.5	20.2	19.9
Capacity/Power (KW)	Evap.	R22	-5℃	10.5/3.8	13.3/4.9	15.5/5.6	19.6/7.2	21.2/7.2
			-8℃	9.3/3.7	11.8/4.7	13.7/5.4	17.3/6.9	18.7/6.9
			-10℃	8.6/3.5	10.9/4.5	12.7/5.2	16.0/6.7	17.2/6.6
		R404A R507A	-5℃	10.7/4.4	13.5/5.5	15.8/6.4	19.8/8.1	20.6/8.0
			-8℃	9.5/4.2	11.9/5.3	14.0/6.1	17.3/7.8	18.1/7.6
			-10℃	8.8/4.1	11.0/5.1	12.9/5.9	16.0/7.5	16.6/7.3
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			1.1	1.1	1.2	2.2	2.2
	Power(W)			548×1	548×1	290×2	548×2	548×2
	Rev.(r/min)			1380	1380	1380	1380	1380
Suction Line(mm)				φ22	φ28	φ28	φ28	φ28
Liquid Line(mm)				φ12.7	φ12.7	φ16	φ16	φ16
Weight			kg	230	230	247	292	339
Size	L (mm)			1050	1050	1420	1650	1650
	W (mm)			815	815	715	815	815
	H (mm)			1102	1102	1070	1202	1202
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
