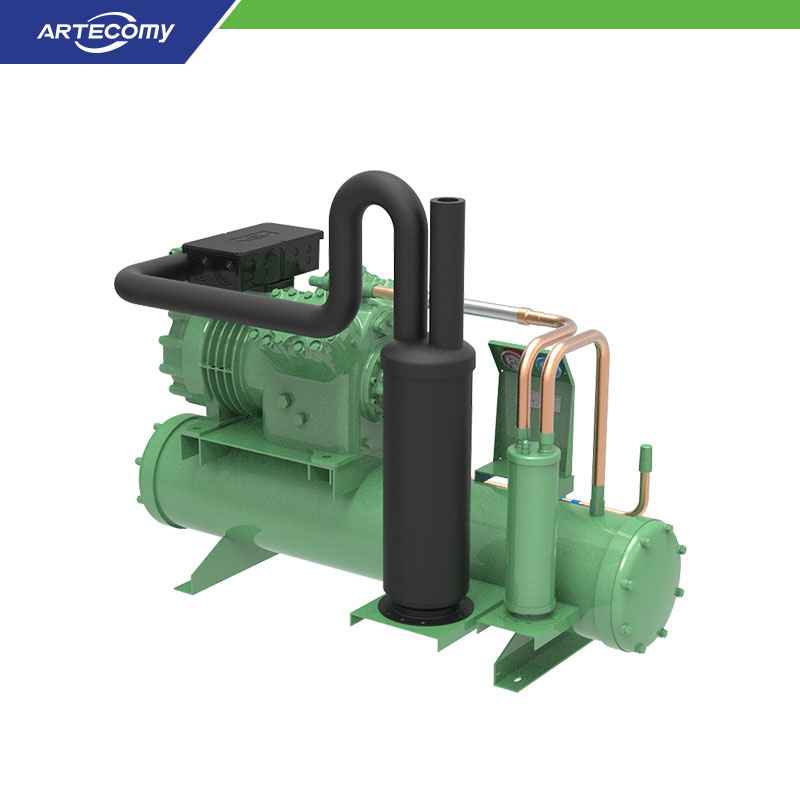

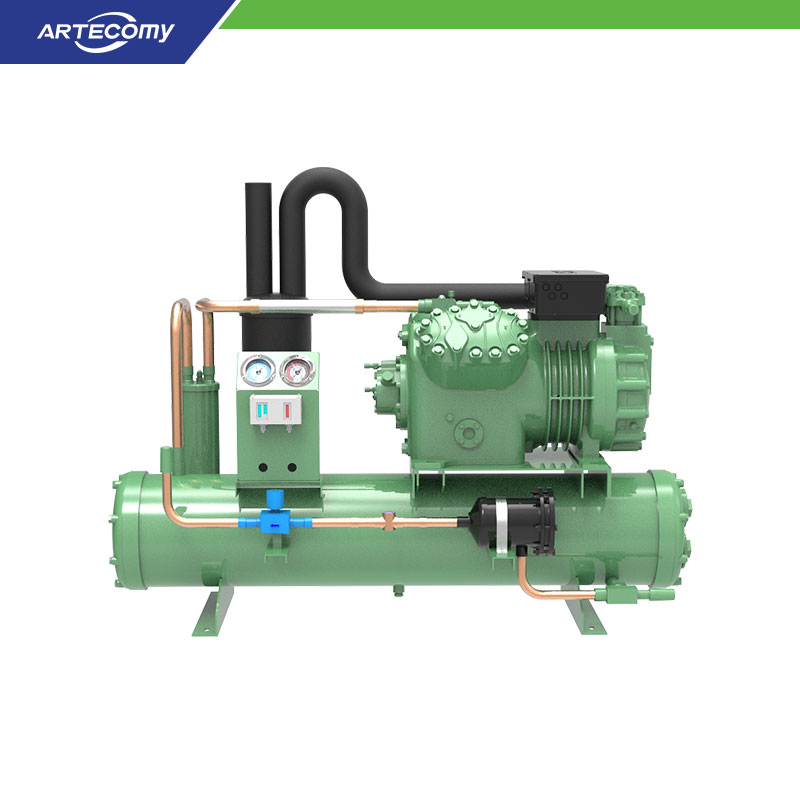

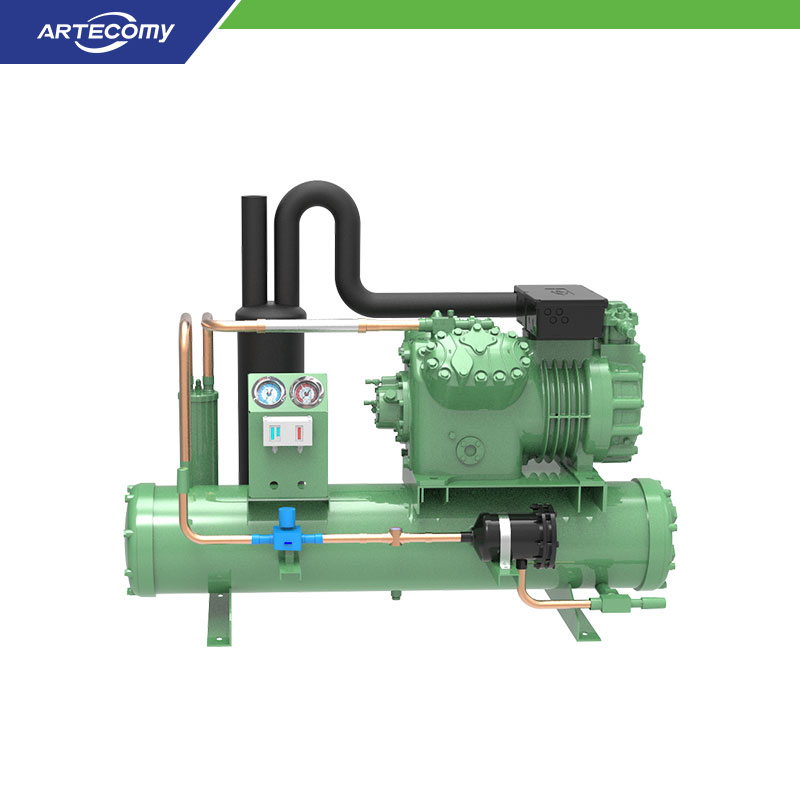

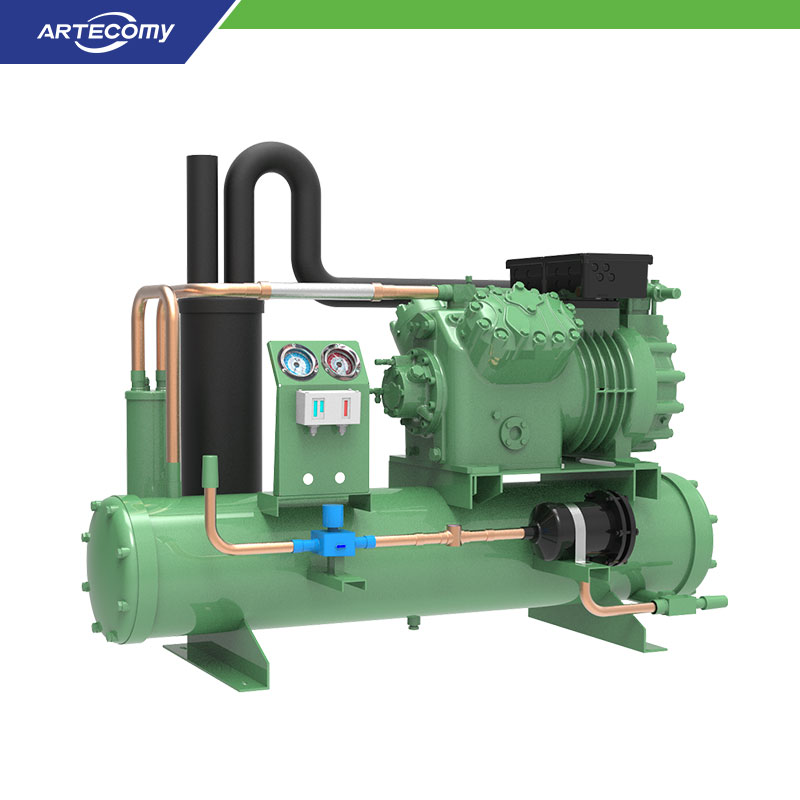

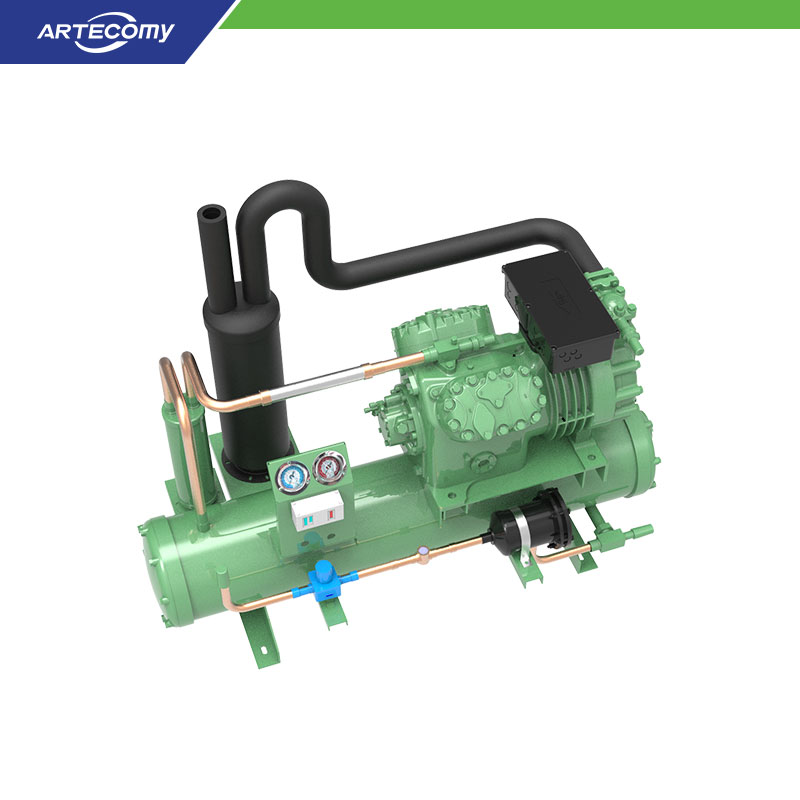

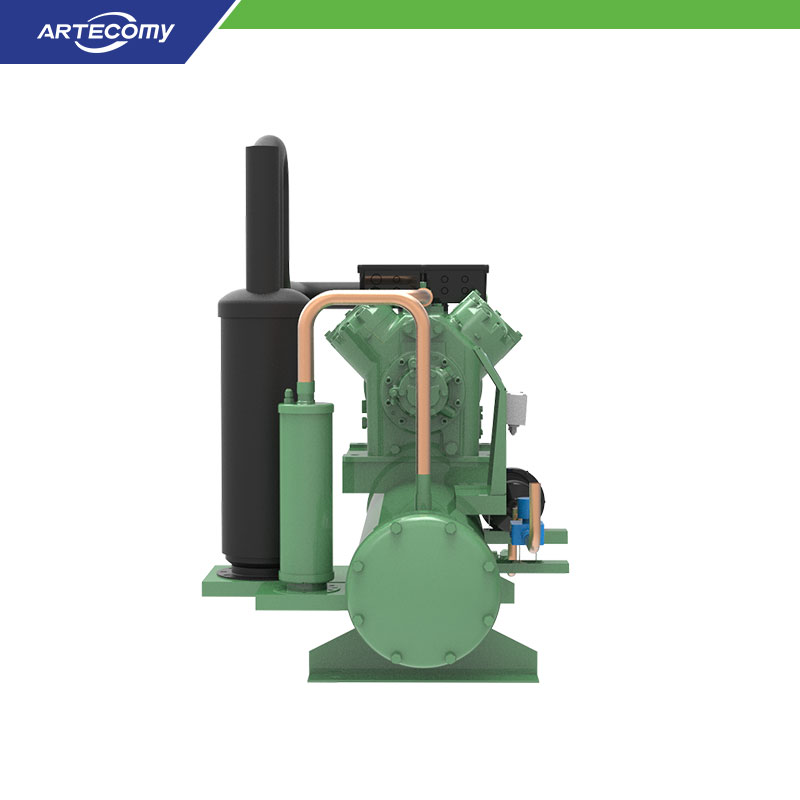

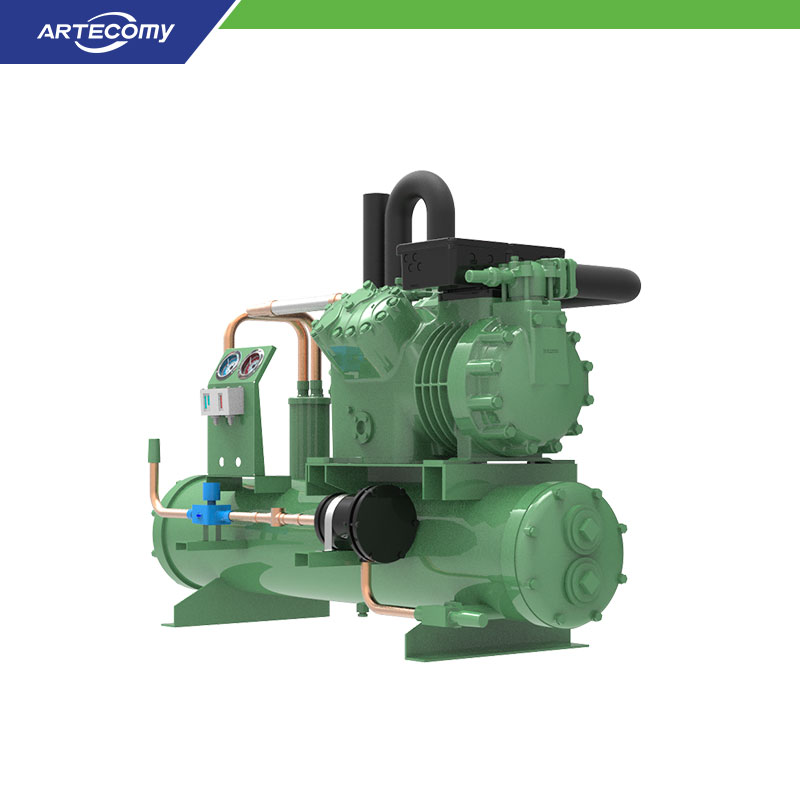

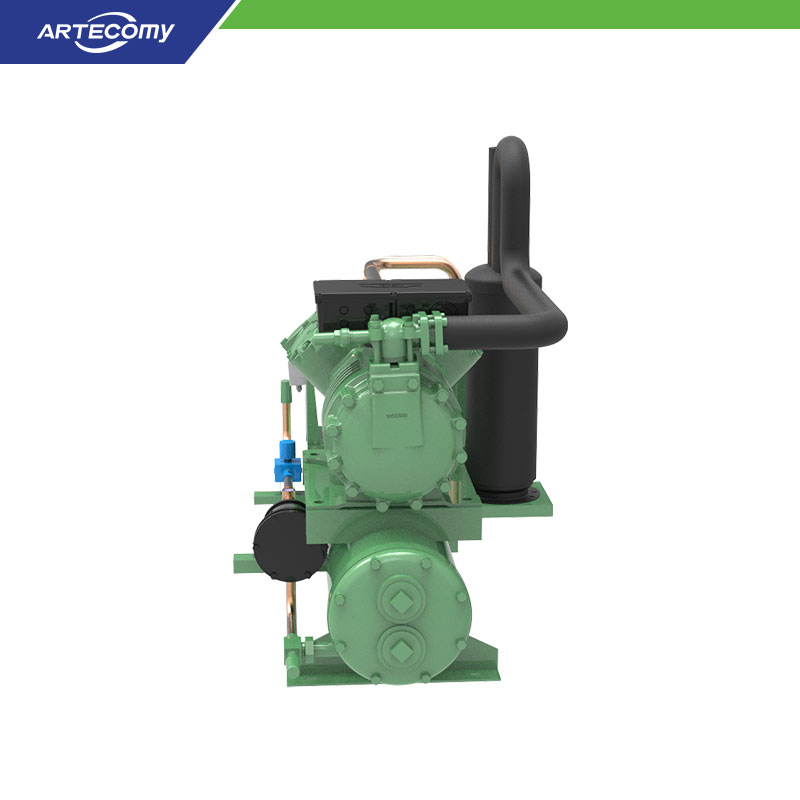

The CP series open type water-cooled condensing unit is mainly developed for cold storage applications;
The unit adopts a Bitzer semi hermetic piston refrigeration compressor, which has good quality and high reliability;
Temperature range: -15~-35℃;
The water-cooled condenser, compressor, and various accessories are installed on the same rack, with a compact structure and easy operation and maintenance;
Adopting an external rotor fan, with low noise and high efficiency;
Can meet the needs of refrigerants such as R22,R404A,R507A, R448A, R449A, etc.
Product Parameter
| Model | CPBBS05L | CPBBS06L | CPBBS09L | CPBBS12L | CPBBS14L | CPBBS15L |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -15℃~-35℃ |
| Compressor | Model | 4DES-5Y | 4CES-6Y | 4TES-9Y | 4PES-12Y | 4NES-14Y | 4JE-15Y |
| Max.I(A) | 14.5 | 17.7 | 19.9 | 22.7 | 26.6 | 30.8 |
| Capacity/Power (KW) | Evap.Temp. | R22 | -25℃ | 6.7/3.7 | 8.6/4.7 | 10.6/5.6 | 11.8/6.2 | 14.2/7.5 | 16.5/8.6 |
| -30℃ | 5.0/3.2 | 6.5/4.1 | 8.1/5.1 | 9.4/5.7 | 10.9/6.7 | 11.8/7.5 |
| -35℃ | 3.6/2.7 | 4.8/3.5 | 5.9/4.3 | 6.8/4.8 | 7.9/5.7 | 8.4/6.3 |
| R404A R507A | -25℃ | 7.1/4.3 | 8.7/5.2 | 10.7/6.2 | 12.0/6.8 | 14.6/8.5 | 17.4/9.8 |
| -30℃ | 5.3/3.7 | 6.6/4.5 | 8.0/5.3 | 8.8/5.8 | 10.9/7.2 | 13.1/8.7 |
| -35℃ | 3.9/3.2 | 4.8/3.9 | 5.8/4.4 | 6.2/4.7 | 7.8/6.1 | 9.5/7.3 |
| Condenser | Water Flow(m³/h) | 3.3 | 4.0 | 4.8 | 5.4 | 6.6 | 7.8 |
| Water Connect(inch) | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc2 |
| Suction Line(mm) | φ28 | φ28 | φ35 | φ35 | φ35 | φ42 |
| Liquid Line(mm) | φ12.7 | φ12.7 | φ16 | φ16 | φ16 | φ22 |
| Weight | kg | 179 | 184 | 237 | 250 | 254 | 329 |
| Size | L (mm) | 1140 | 1140 | 1140 | 1390 | 1390 | 1400 |
| W (mm) | 650 | 650 | 650 | 650 | 650 | 780 |
| H (mm) | 830 | 830 | 890 | 890 | 890 | 1100 |
|
