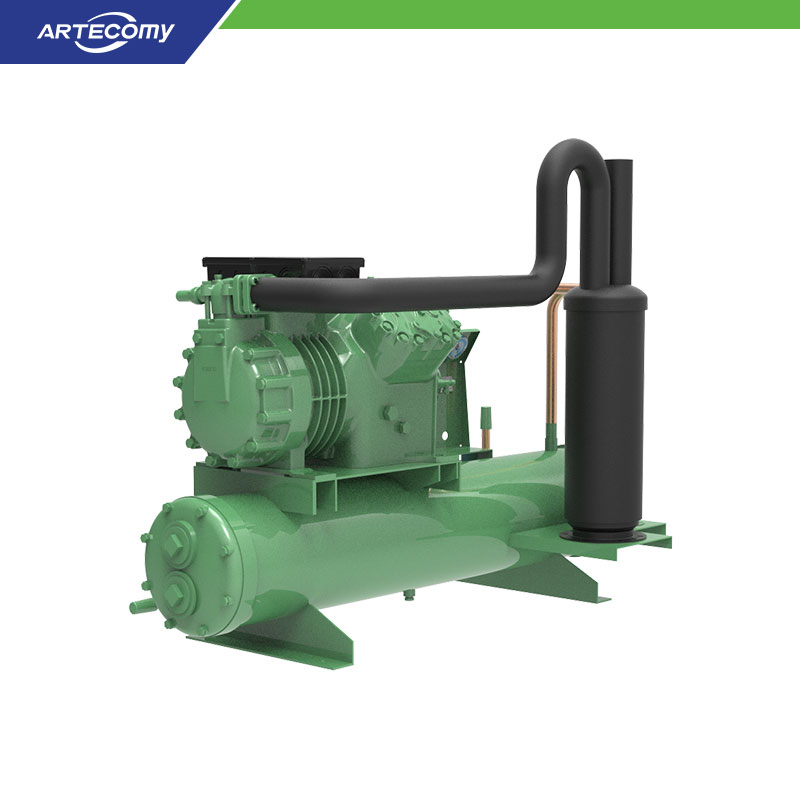

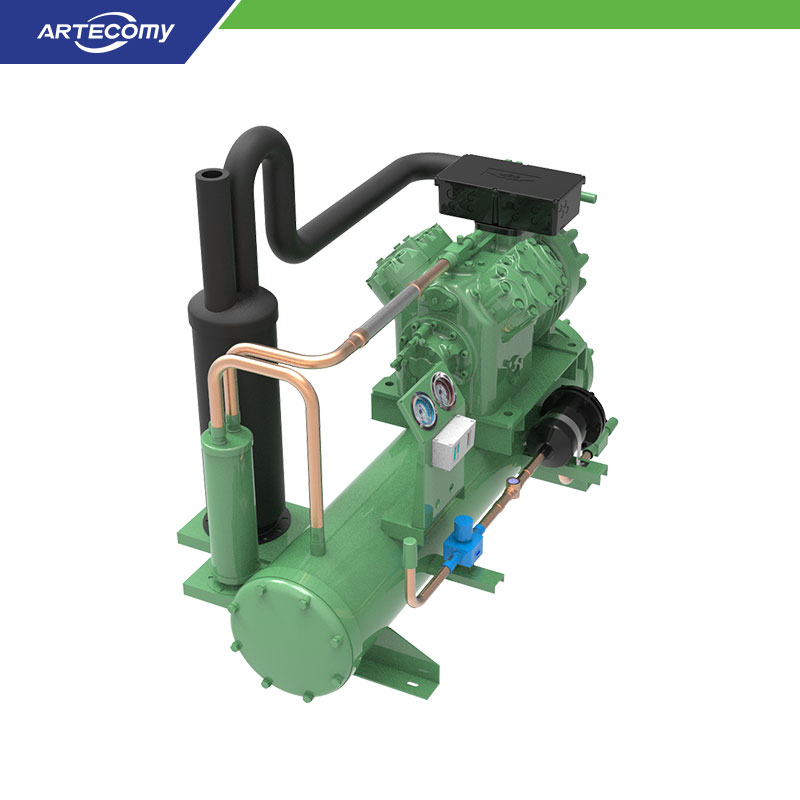

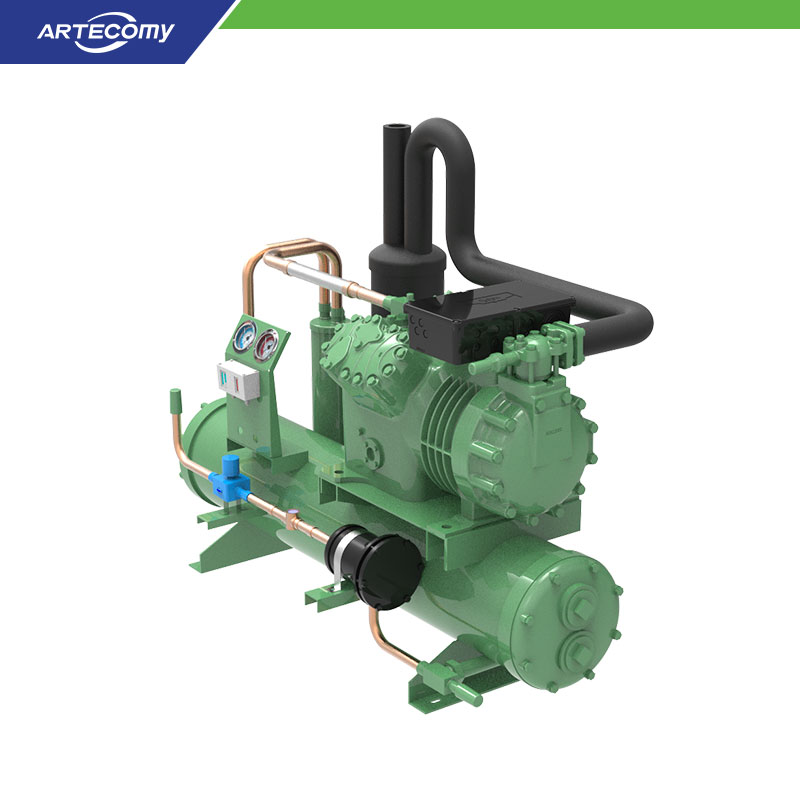

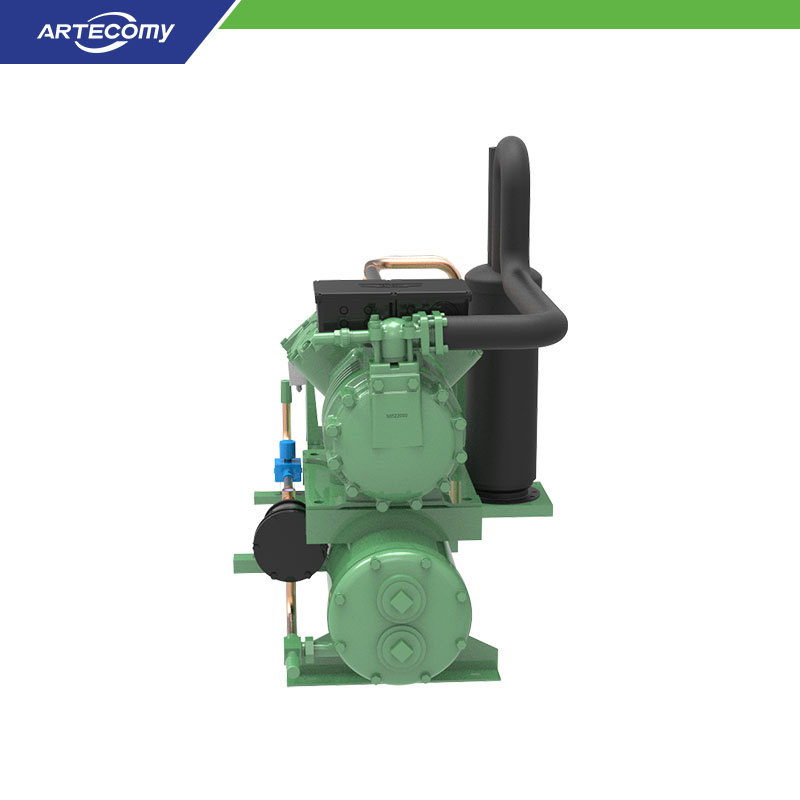

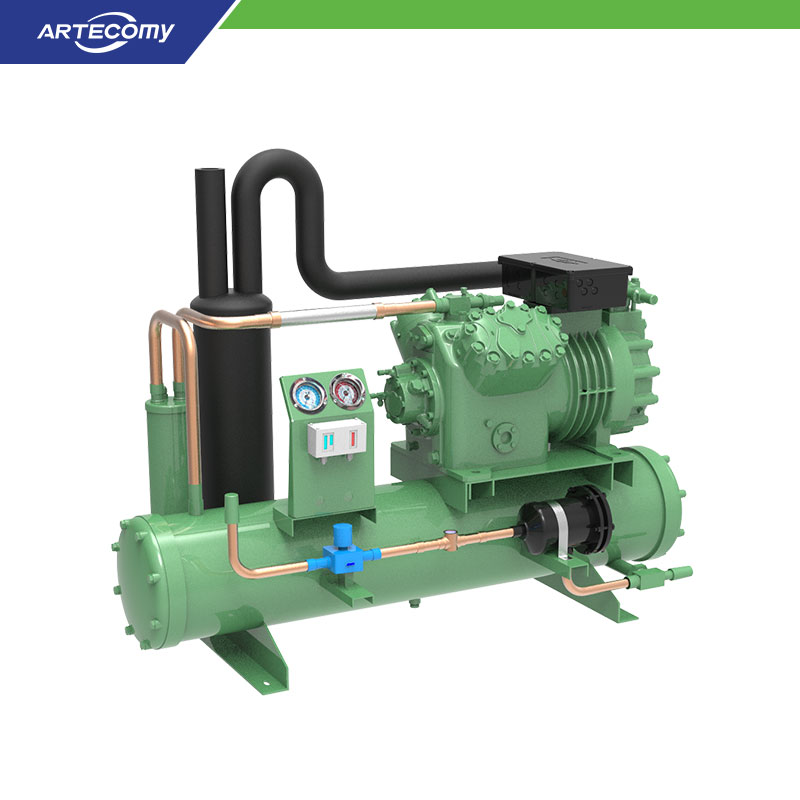

The CP series open type water-cooled condensing unit is mainly developed for cold storage applications;
The unit adopts a Bitzer semi hermetic piston refrigeration compressor, which has good quality and high reliability;
Temperature range: -5~5℃;
The water-cooled condenser, compressor, and various accessories are installed on the same rack, with a compact structure and easy operation and maintenance;
Adopting an external rotor fan, with low noise and high efficiency;
Can meet the needs of refrigerants such as R22,R404A,R507A, R448A, R449A, etc.
Product Parameter
| Model | CPBBS15M | CPBBS20M | CPBBS25M | CPBBS30M | CPBBS35M | CPBBS40M |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -5℃~5℃ |
| Compressor | Model | 4PES-15Y | 4NES-20Y | 4HE-25Y | 4GE-30Y | 4FE-35Y | 6GE-40Y |
| Max.I(A) | 28.2 | 33.2 | 44.0 | 51.2 | 62.1 | 73.9 |
| Capacity/Power (KW) | Evap.Temp. | R22 | -5℃ | 31.9/9.5 | 37.6/11.1 | 50.0/14.9 | 58.0/17.1 | 69.1/20.6 | 86.1/25.7 |
| -8℃ | 28.0/9.1 | 33.0/10.7 | 44.1/14.3 | 51.1/16.5 | 60.9/19.8 | 75.9/24.7 |
| -10℃ | 25.6/8.8 | 30.2/10.3 | 40.4/13.9 | 46.9/16.0 | 55.9/19.2 | 69.5/24.0 |
| R404A R507A | -5℃ | 32.6/10.6 | 38.8/12.6 | 51.1/16.7 | 58.6/19.3 | 70.0/24.0 | 85.2/28.7 |
| -8℃ | 28.4/10.1 | 34.0/12.1 | 44.9/16.0 | 51.6/18.5 | 61.8/23.0 | 75.1/27.5 |
| -10℃ | 25.8/9.8 | 31.0/11.6 | 41.1/15.5 | 47.3/17.9 | 56.8/22.3 | 68.9/26.7 |
| Condenser | Water Flow(m³/h) | 9.3 | 11.0 | 14.6 | 16.7 | 20.2 | 24.5 |
| Water Connect(inch) | Rc2 | Rc2 | Rc2-1/2 | Rc2-1/2 | Rc2-1/2 | Rc2-1/2 |
| Suction Line(mm) | φ42 | φ42 | φ54 | φ54 | φ54 | φ54 |
| Liquid Line(mm) | φ22 | φ22 | φ22 | φ22 | φ22 | φ22 |
| Weight | kg | 296 | 300 | 372 | 381 | 388 | 435 |
| Size | L (mm) | 1400 | 1400 | 1650 | 1650 | 1650 | 1650 |
| W (mm) | 780 | 780 | 825 | 825 | 825 | 825 |
| H (mm) | 1030 | 1030 | 890 | 890 | 890 | 890 |
|
