Box-type Copeland ZSI09KQE 3HP Unit for Ultra-Low Cold Storage

Box-type Copeland ZSI09KQE 3HP Unit for Ultra-Low Cold Storage

Product Series:

BS Air-Cooled

Compressor Brand:

Emerson Copeland

Compressor Model:

ZSI09KQE

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Application Temperature:

-15℃～-25℃

Refrigerant:

R22, R404A, R507A

Product Origin:

United States

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

BS Series Emerson Copeland Box-Type Condensing Units

The BS series box-type condensing units are specifically developed for cold storage applications.

The main unit adopts the Emerson ZSI/ZF series hermetic scroll compressors, which are of high quality and reliability. The high-temperature unit can meet the requirements of cold storage at -15 to–25°C.

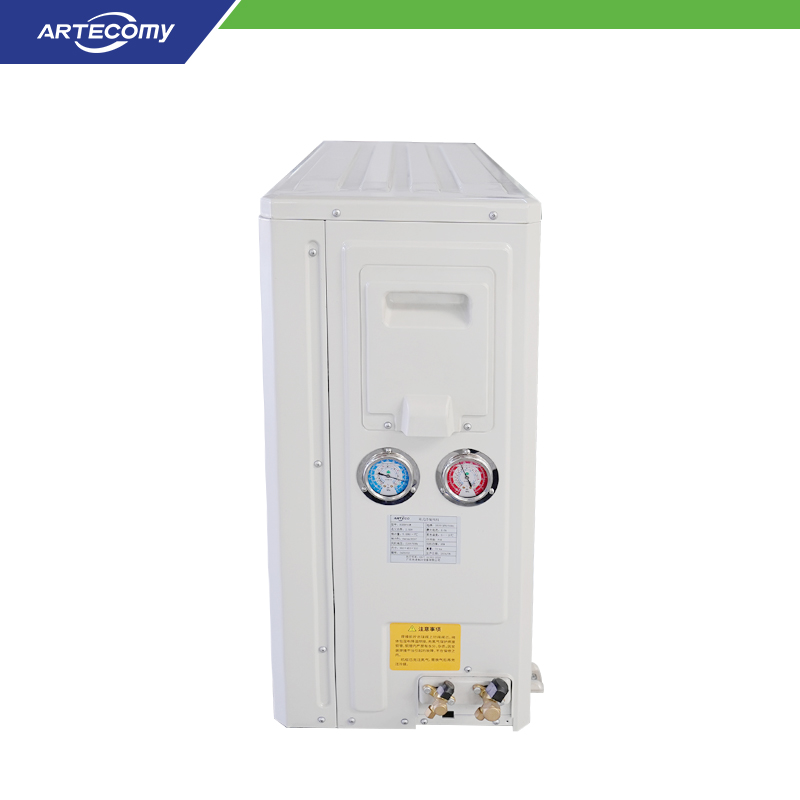

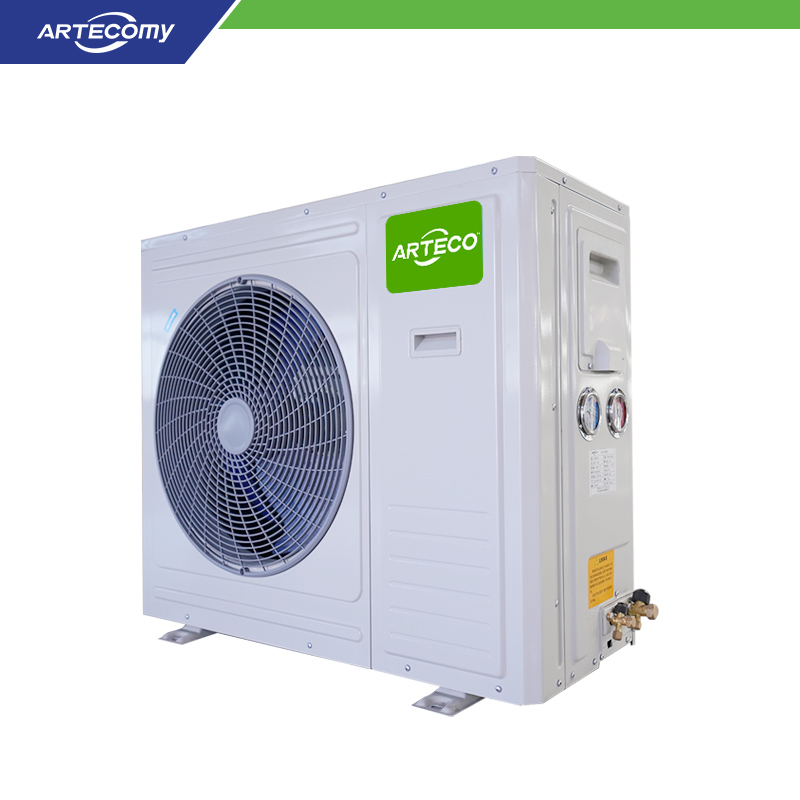

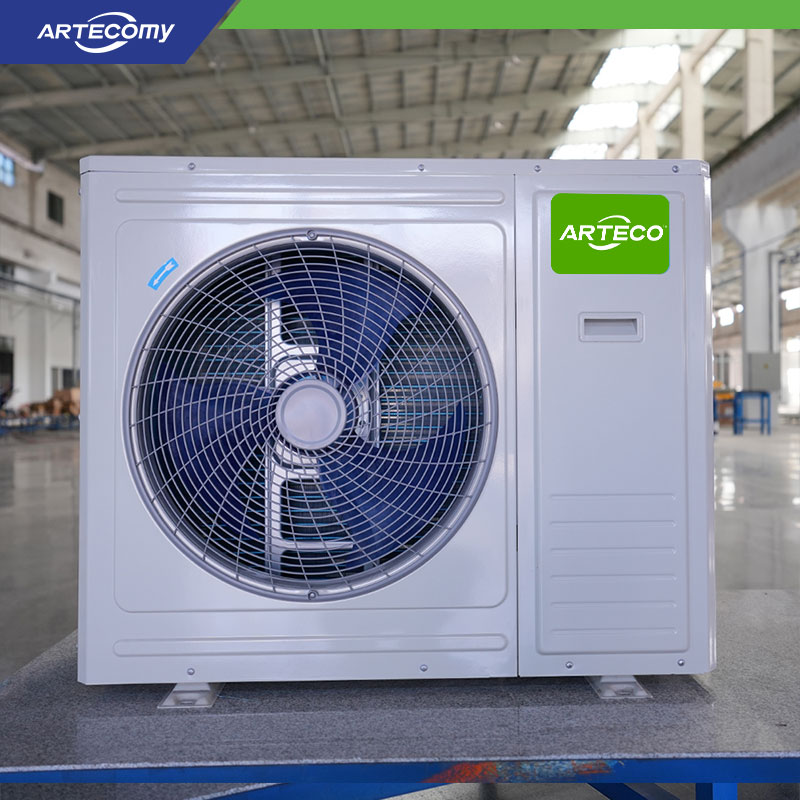

The unit features an air-conditioner-style cabinet, equipped with 6-pole low-speed fans, offering an attractive appearance and low noise level, making it suitable for installation in residential areas.

The L-shaped condenser is used, which has a large frontal area, low air resistance, and good heat exchange performance.

It can meet the requirements for refrigerants such as R22, R404A, R507A, R448A, and R449A.

Product Parameter

Model				BSEBF02L	BSEBF03L	BSEBF04L	BSEBF05L	BSEBF06L	BSEBF07L
Power Supply				3P/380V/50Hz
Apply Temp.				-15℃～-25℃
Compressor	Model			ZSI06KQE	ZSI09KQE	ZSI14KQE	ZSI15KQE	ZSI18KQE	ZSI21KQE
Compressor	Max.I(A)			5.7	6.7	9.2	11.9	13.7	14.6
Capacity/Power KW)	Evap.	R22	-20℃	2.3/1.6	3.1/2.0	5.1/3.0	5.7/3.3	7.0/4.2	7.8/4.6
			-25℃	1.9/1.5	2.5/1.9	4.1/2.8	4.8/3.2	5.8/4.0	6.5/4.4
			-30℃	1.6/1.4	1.9/1.9	3.2/2.7	3.9/3.0	4.8/3.8	5.4/4.2
		R404A R507A	-20℃	2.2/1.8	3.1/2.3	5.0/3.2	5.7/3.6	6.9/4.4	7.7/4.9
			-25℃	1.8/1.7	2.6/2.2	4.1/3.1	4.7/3.4	5.8/4.2	6.4/4.7
			-30℃	1.5/1.6	2.1/2.0	3.3/2.9	3.6/3.2	4.7/4.0	5.2/4.4
Fan	Voltage (V)			1P/220V/50Hz
	Current(A)			0.6	0.6	1.2	1.2	1.2	1.2
	Power(W)			135	135	135×2	135×2	135×2	135×2
	Rev.(r/min)			760	760	760	760	760	760
Suction Line(mm)				φ16	φ16	φ19	φ19	φ19	φ19
Liquid Line(mm)				φ9.52	φ9.52	φ12.7	φ12.7	φ12.7	φ12.7
Weight			kg	63	67	83	92	105	106
Size	L (mm)			960	960	960	960	960	960
	W (mm)			450	450	450	450	450	450
	H (mm)			810	810	1260	1260	1260	1260
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
