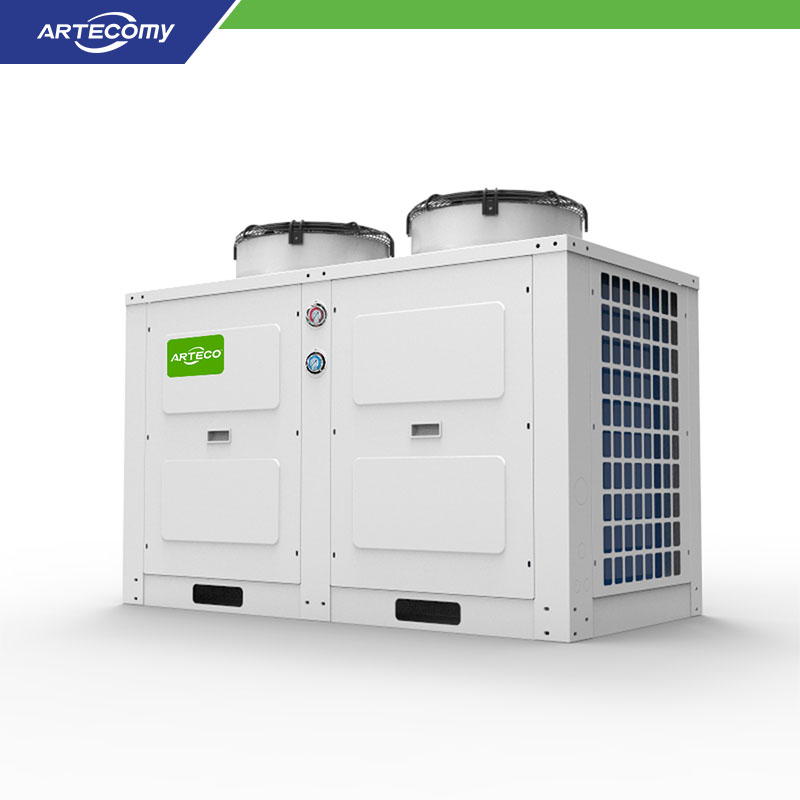

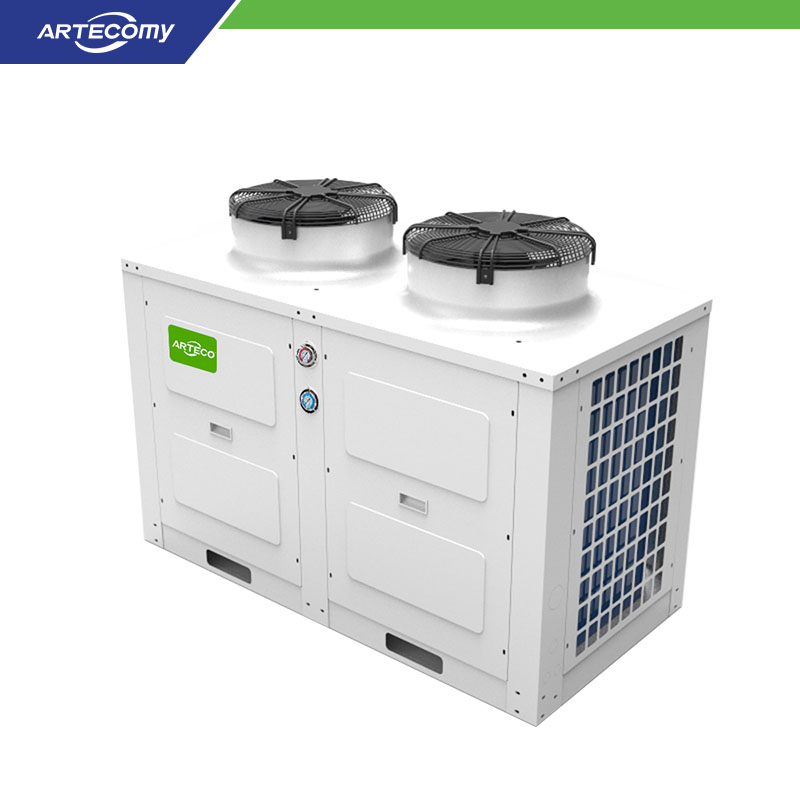

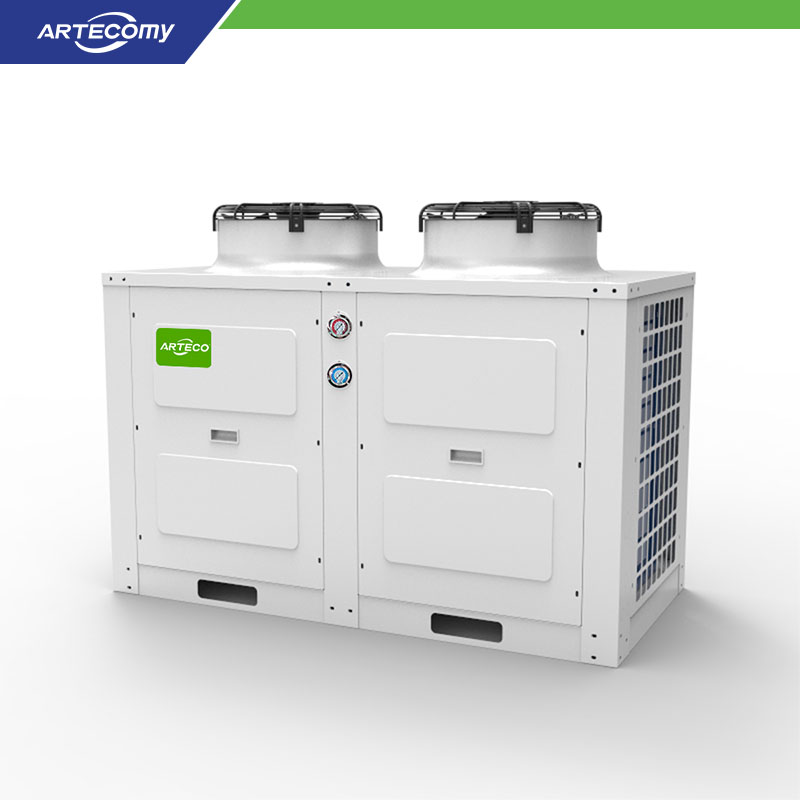

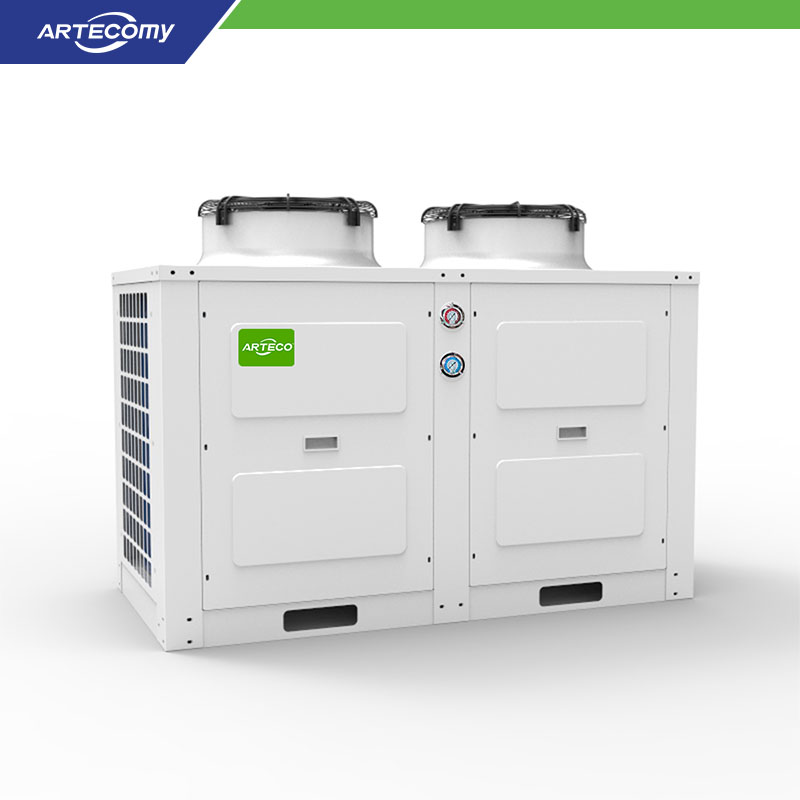

The BT series condenser adopts a U-shaped structure design, with three sides for air inlet and the top for air outlet, with a larger windward side, low wind resistance, and good heat transfer effect.
Adopting a box shaped structure, the wind ring adopts a high wind ring design with large rounded corners that are stretched as a whole, which has good air guiding effect and clean appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of 25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 1.8mm.
3. The fan specifications adopt external rotor fans with diameters of 450, 500, and 630; Product test pressure: 30bar.
4. Can meet the needs of refrigerants such as R404A, R507A, R448A, R449A, R134A, R22, etc.
Product Parameter
