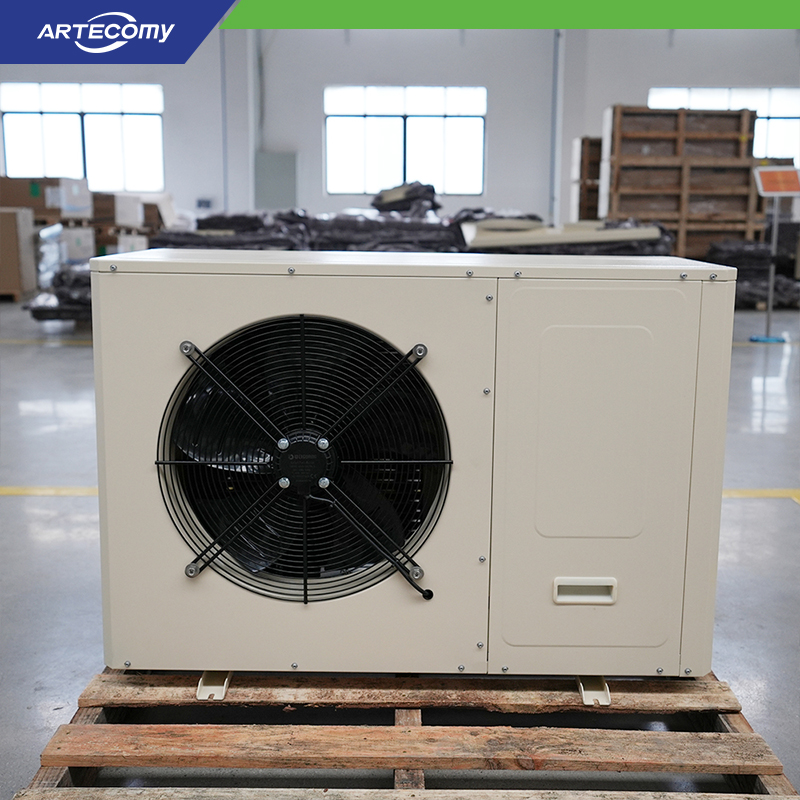

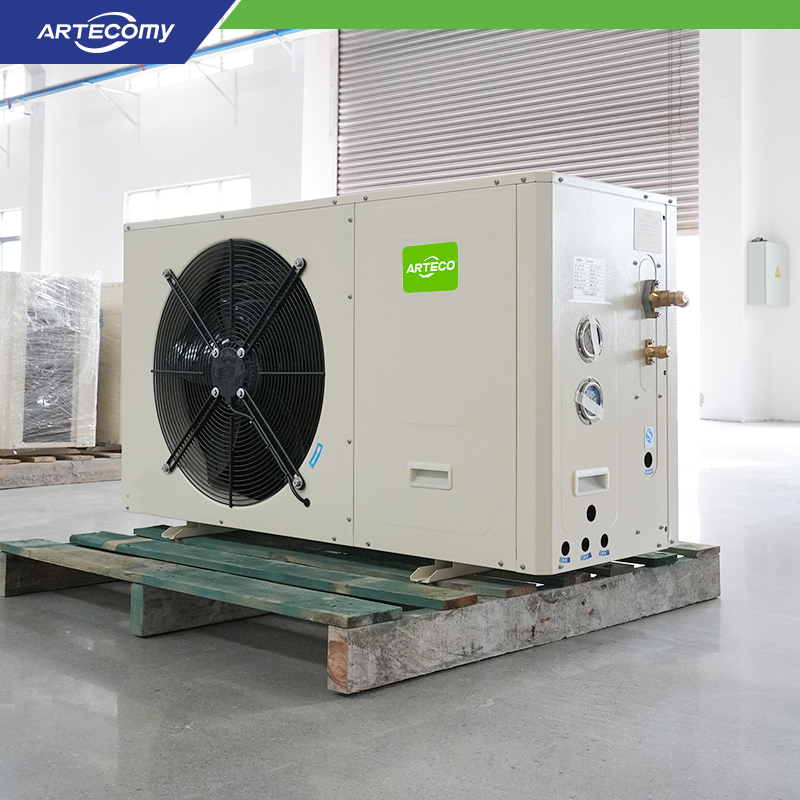

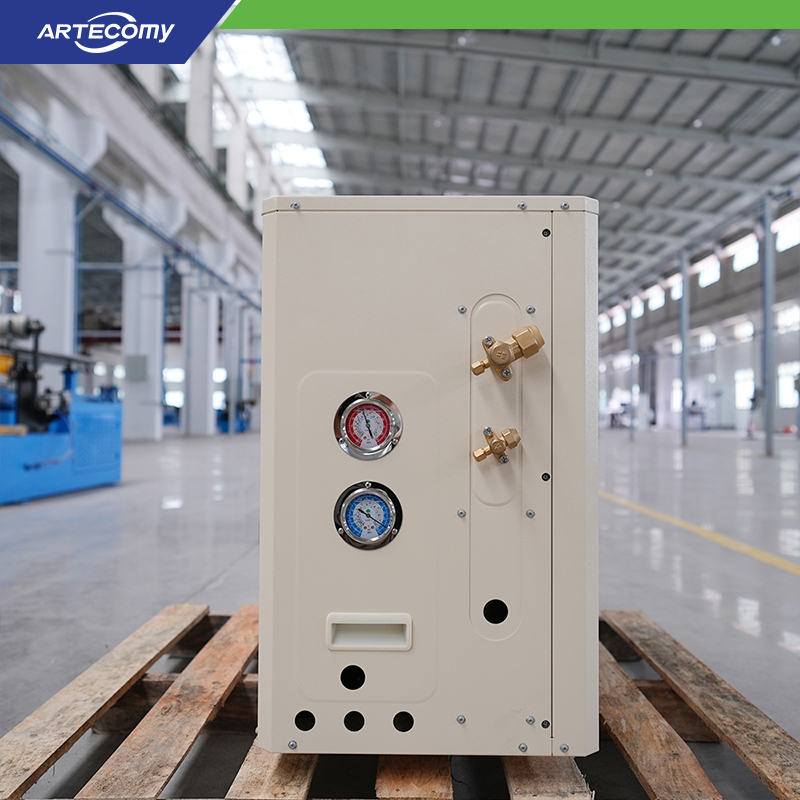

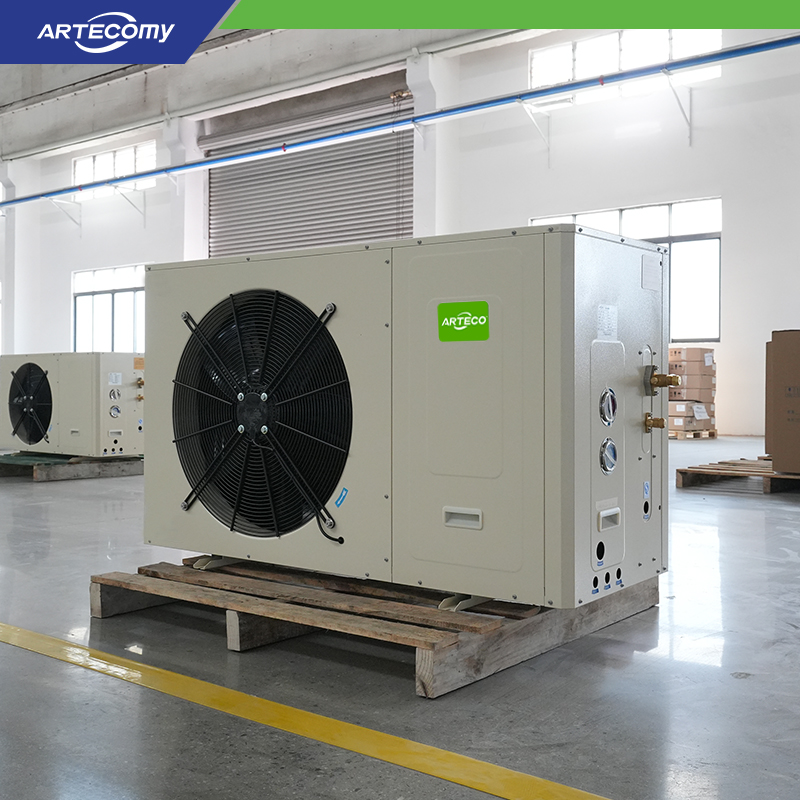

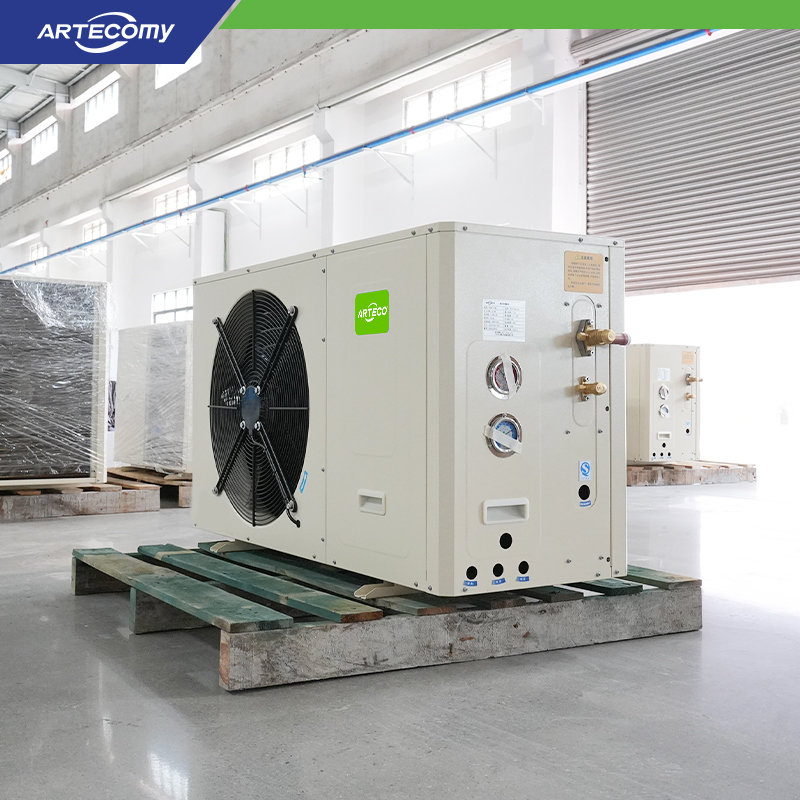

BX Series Emerson Copeland Box-Type Condensing Units Medium Temperature
Application:Specifically designed for cold storage applications.
Compressor:Utilizes Emerson ZB hermetic scroll compressors for high quality and reliability.
Temperature Range: Available in medium-temperature ﹣5～5℃
Features:
Employs high-efficiency internally threaded copper tubes and 6-pole low-speed fans for optimal performance and low noise, suitable for residential areas.

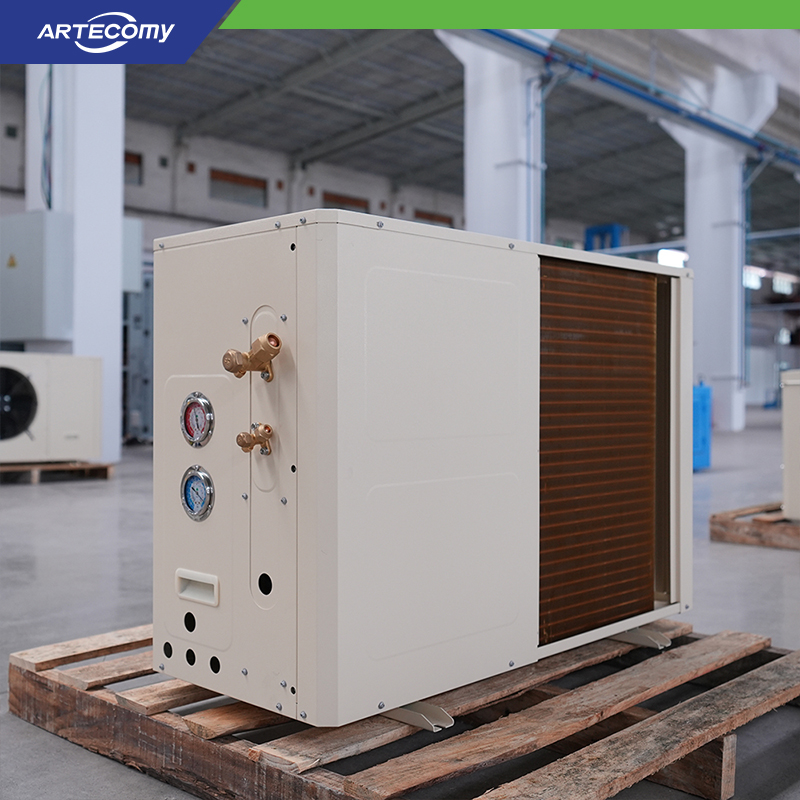

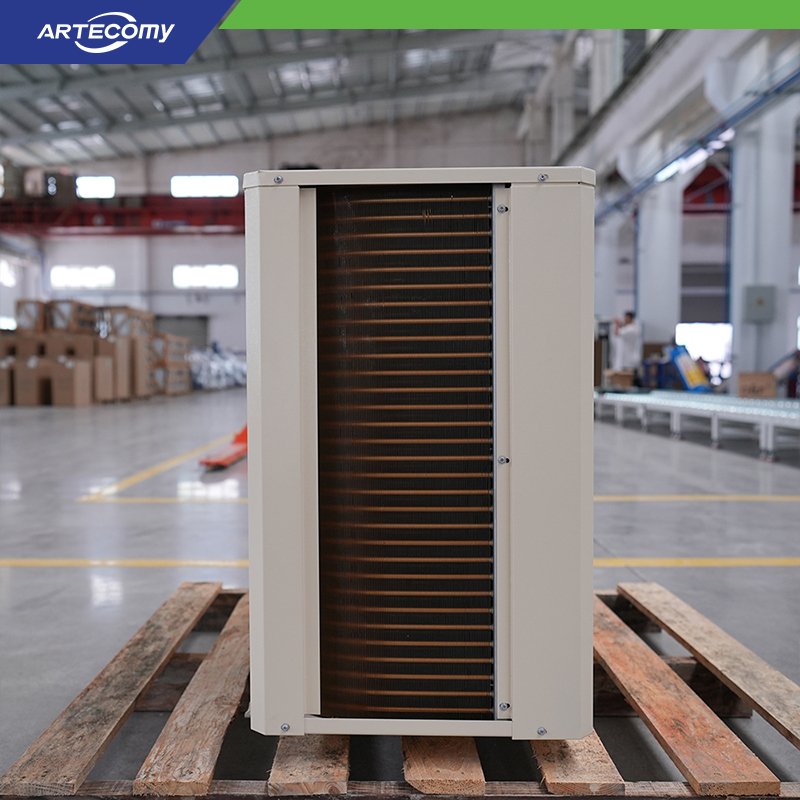

Features an L-type condenser with a large frontal area, low air resistance, and excellent heat exchange efficiency.
Refrigerant Compatibility: Compatible with R22, R404A, R507A, R448A, R449A, and other refrigerants.
Product Parameter
| Model | BXEBF08M | BXEBF09M | BXEBF10M | BXEBF12M | BXEBF13M | BXEBF15M |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -5℃～5℃ |
| Compressor | Model | ZB58KQE | ZB66KQE | ZB76KQE | ZB88KQ | ZB95KQE | ZB114KQE |
| Max.I(A) | 23.0 | 24.2 | 26.9 | 31.0 | 31.0 | 38.0 |
| Capacity/Power KW) | Evap. | R22 | -5℃ | 15.4/4.5 | 17.8/6.1 | 21.0/7.1 | 23.9/8.1 | 25.1/9.1 | 30.0/10.8 |
| -8℃ | 13.5/5.5 | 15.8/6.0 | 18.6/7.0 | 21.2/8.1 | 21.9/9.0 | 26.2/10.7 |
| -10℃ | 12.5/5.3 | 14.7/6.0 | 17.4/6.9 | 19.6/8.0 | 20.3/8.8 | 24.2/10.5 |
| R404A R507A | -5℃ | 15.8/6.4 | 17.7/7.1 | 21.1/8.3 |
| 25.8/10.7 | 30.7/12.7 |
| -8℃ | 14.0/6.3 | 15.7/7.1 | 18.7/8.2 |
| 22.9/10.6 | 27.1/12.5 |
| -10℃ | 13.1/6.2 | 14.7/7.1 | 17.5/8.2 |
| 21.5/10.4 | 25.3/12.3 |
| Fan | Voltage (V) | 3P/380V/50Hz |
| Current(A) | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 3.2 |
| Power(W) | 1100 | 1100 | 1100 | 1100 | 1100 | 1600 |
| Rev.(r/min) | 900 | 900 | 900 | 900 | 900 | 1320 |
| Suction Line(mm) | φ35 | φ42 | φ42 | φ42 | φ42 | φ42 |
| Liquid Line(mm) | φ16 | φ16 | φ16 | φ22 | φ22 | φ22 |
| Weight | kg | 205 | 223 | 228 | 415 | 415 | 418 |
| Size | L (mm) | 1382 | 1382 | 1382 | 1809 | 1809 | 1809 |
| W (mm) | 640 | 640 | 640 | 991 | 991 | 991 |
| H (mm) | 1646 | 1646 | 1646 | 1954 | 1954 | 1954 |
|
