10HP 20HP 30HP 40HP 50HP 60HP Two Stage Bizer Semi Enclosed Piston Compressor R404A Cold Room Refrigeration Unit

10HP 20HP 30HP 40HP 50HP 60HP Two Stage Bizer Semi Enclosed Piston Compressor R404A Cold Room Refrigeration Unit

Product Series:

CP Air-Cooled

Order(MOQ):

Compressor:

Bitzer or Frascold

Nominal Power:

02-40

Refrigerant:

R22/R404A/R507A/R448A/R449A

Temperature Range of Application:

High Temperature（5～15℃）
Medium Temperature（-5～5℃）
Low Temperature（-15～-35 ℃）
Low-temperature Freezing（-35～-50℃）

INQUIRY NOW

Description

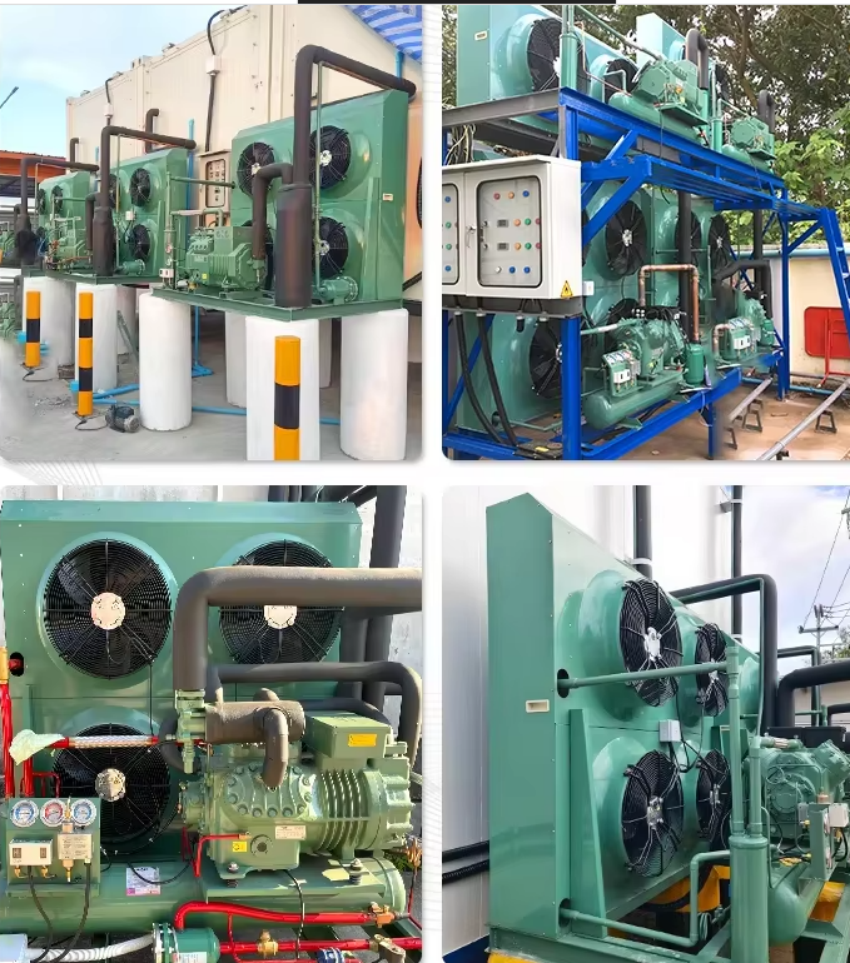

Customer Cases

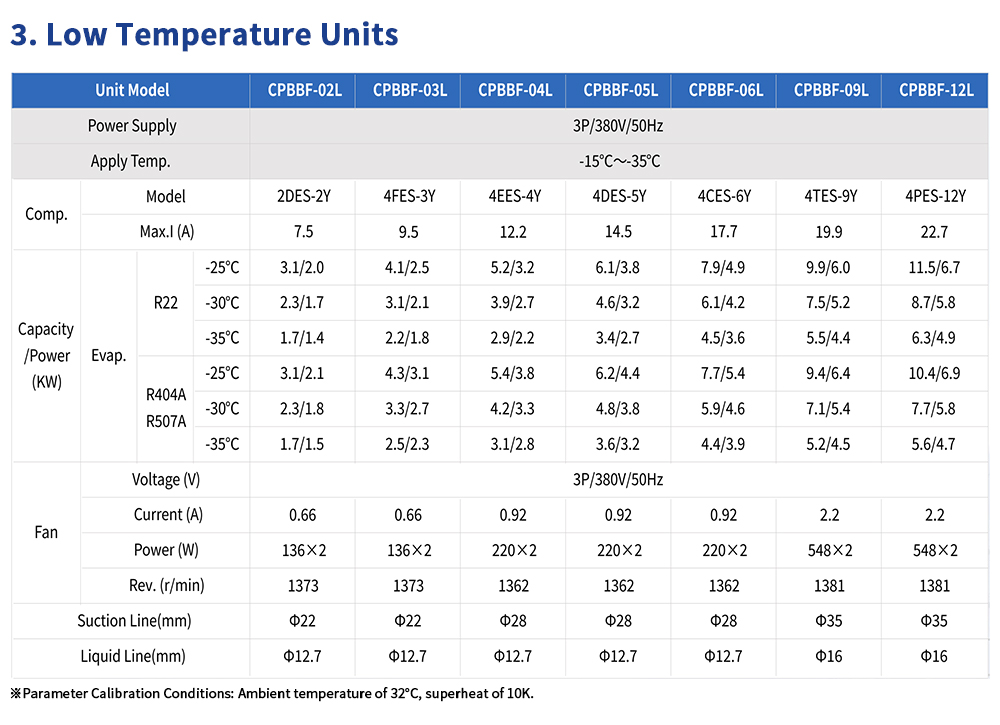

Specification

CP series air-cooled condensing units offer the following features

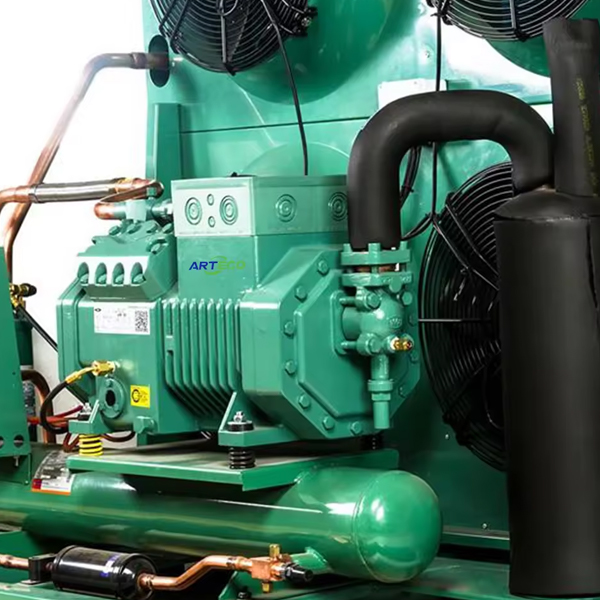

1. High-quality and reliable BlTZER semi-hermetic piston refrigeration compressors.

2. Designed for high, medium, and low temperature applications.

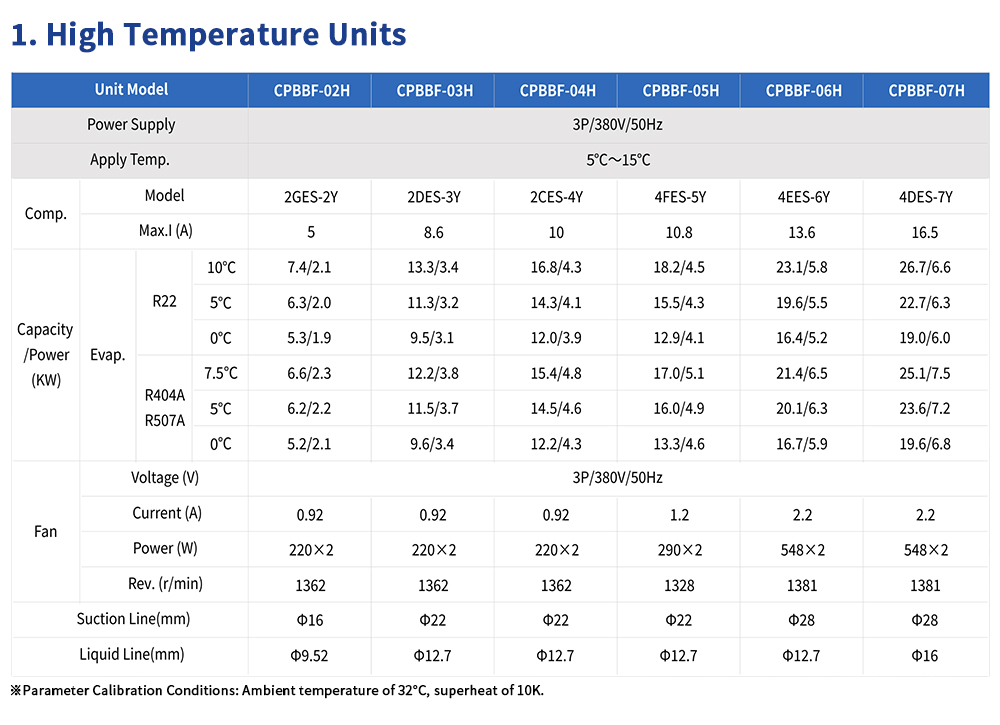

#High-temperature units meet the needs of cold storage at 5~15°C

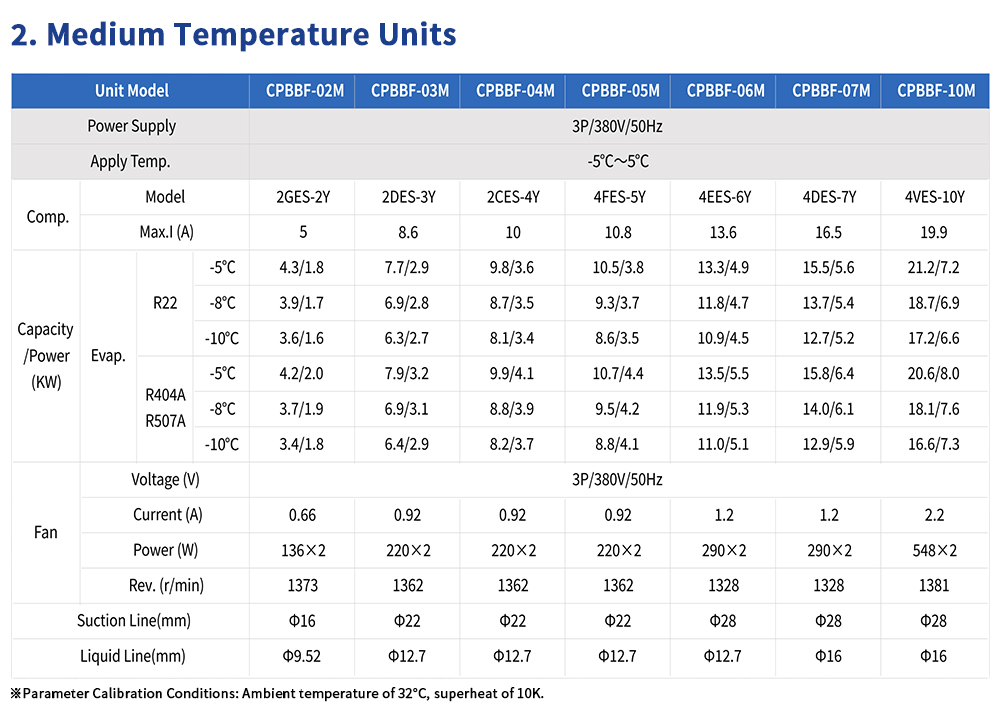

#Medium-temperature units meet the needs of cold storage at -5~5°C
#Low-temperature units meet the needs of cold storage at-15~-35°C

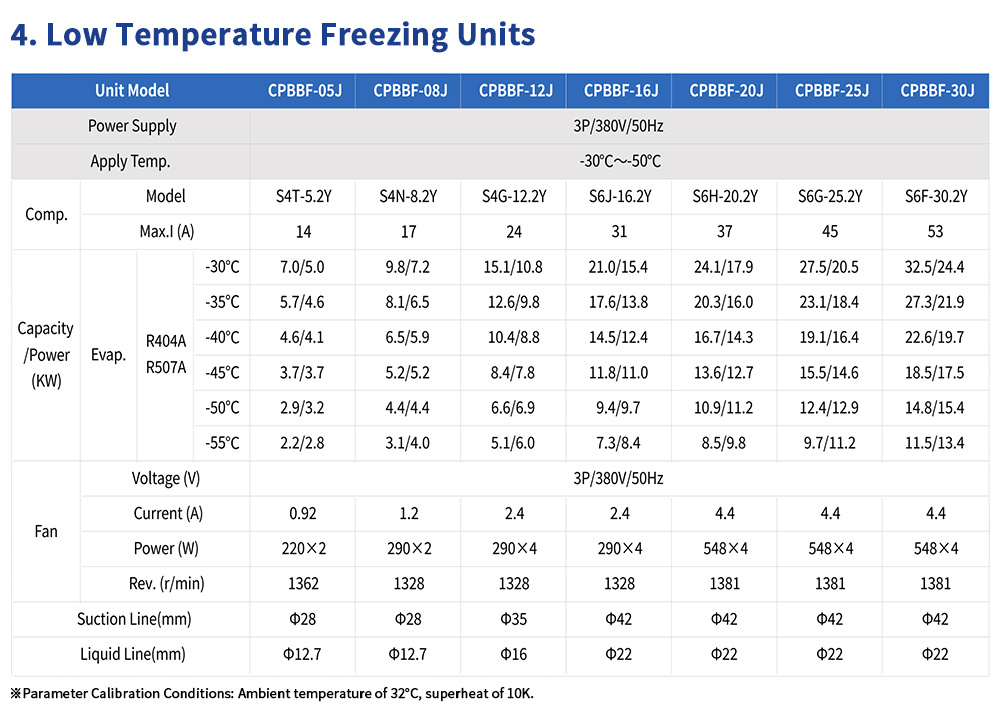

#Low-temperature freezing units meet the needs of cold storage at-35 ~-50°C

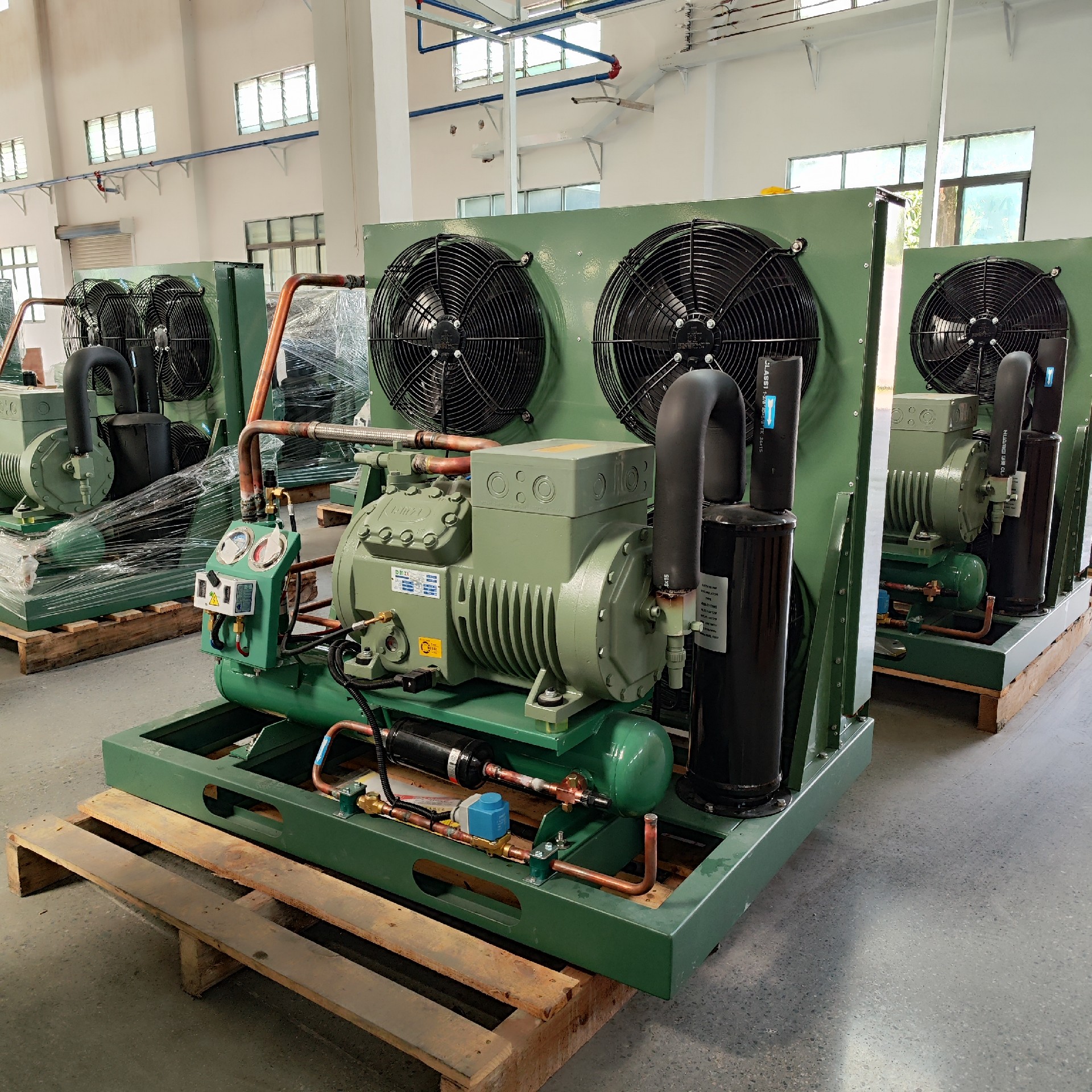

3. Compact structure and easy operation and maintenance. The air-cooled condenser, compressor, and various accessories are installed on an integrated frame.

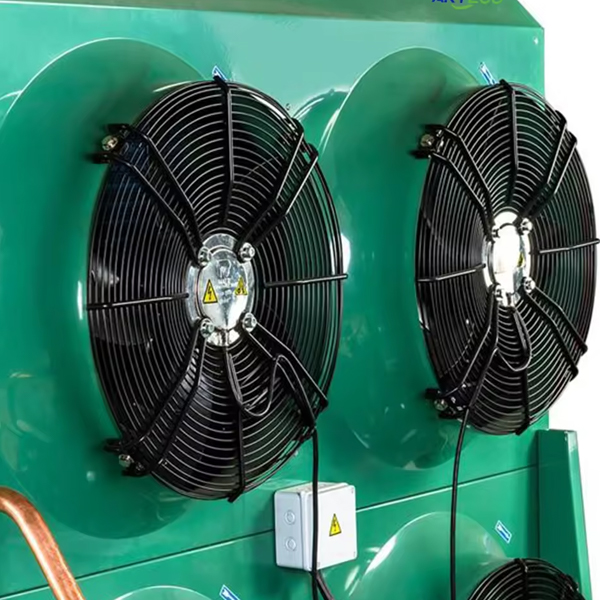

4. High-efficiency and low-noise external rotor fan.

5. Convenient wiring. The wiring of electrical components (except the com-pressor) is connected to the terminal block built into the unit.

6. Suitable for R22, R404A, R507A, R448A, and R449A refrigerant

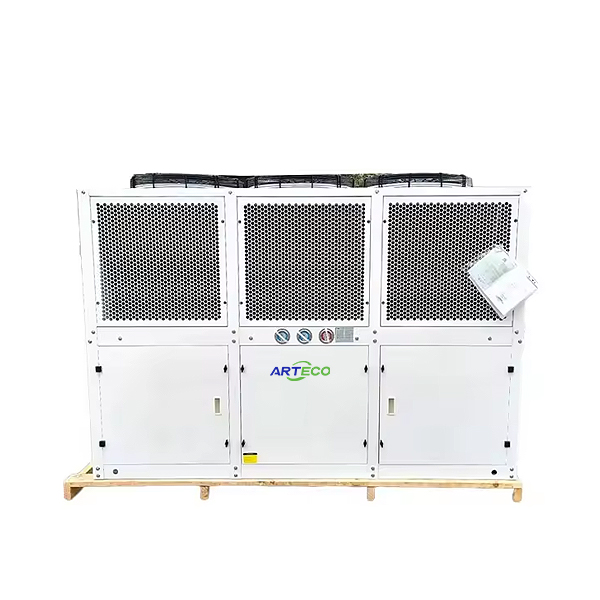

condensed unit
