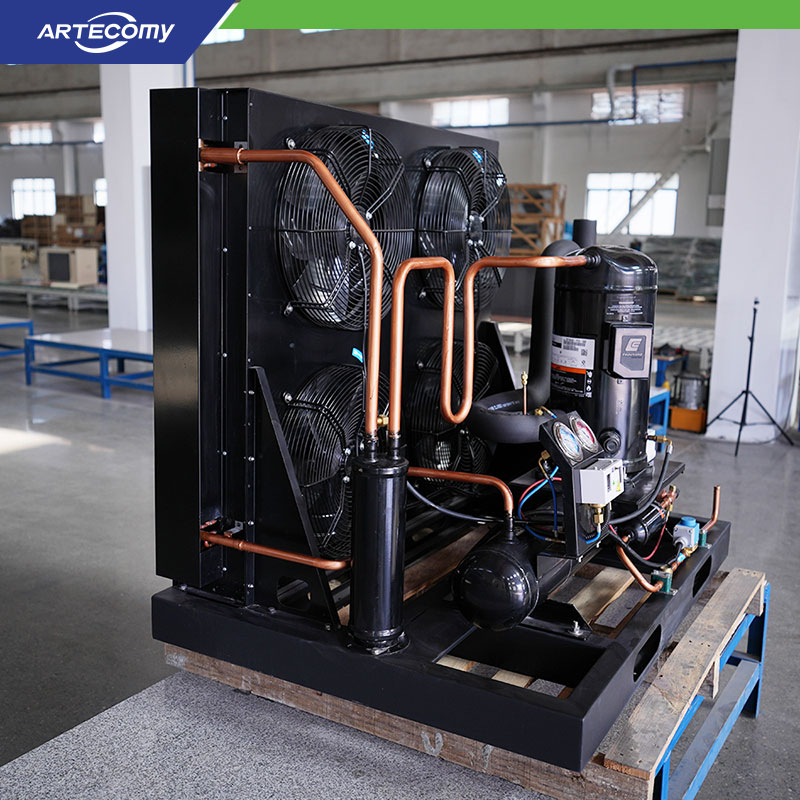

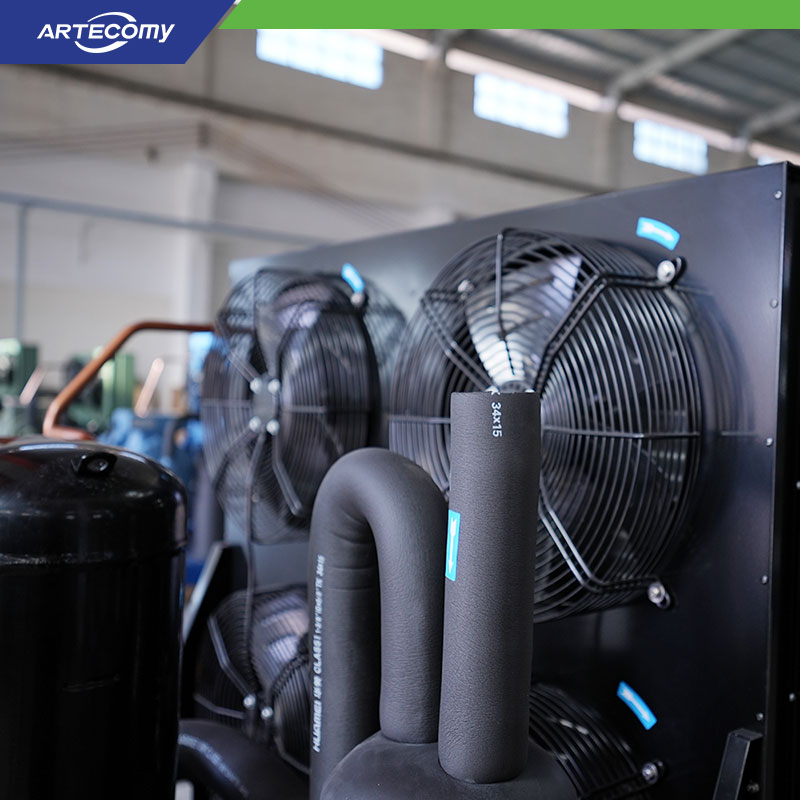

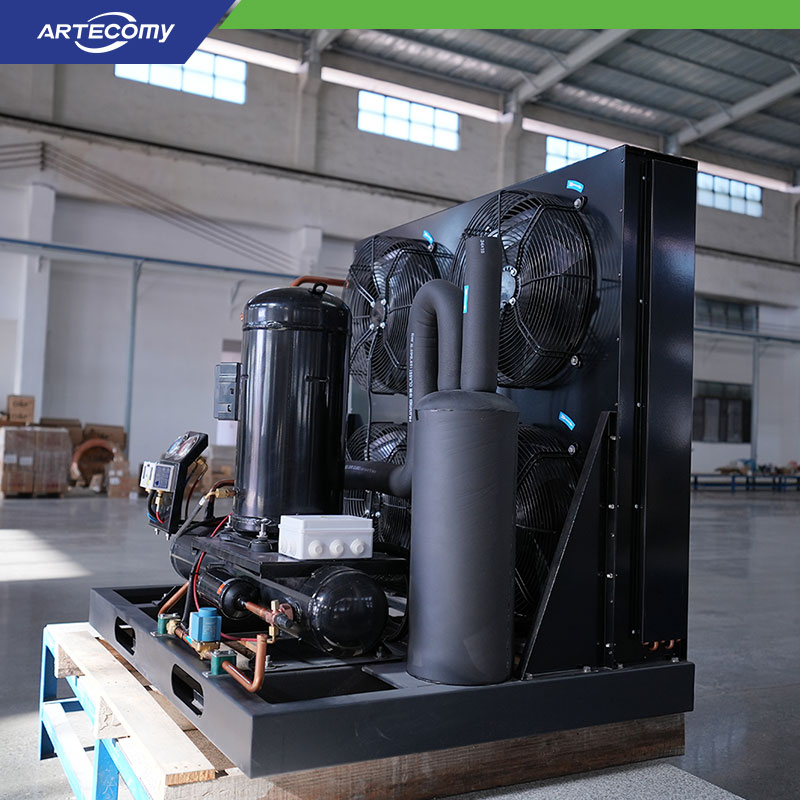

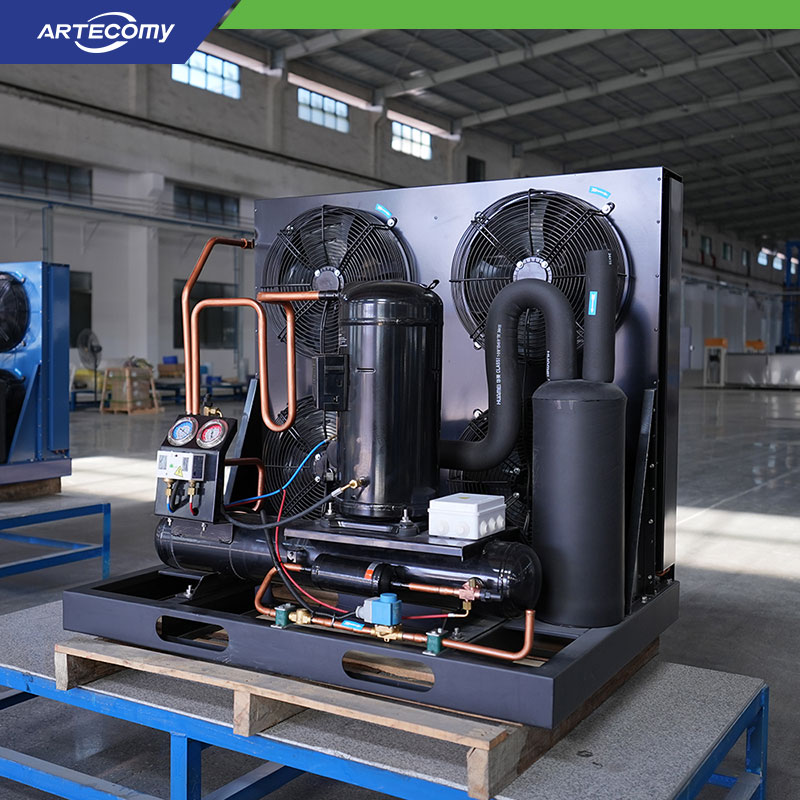

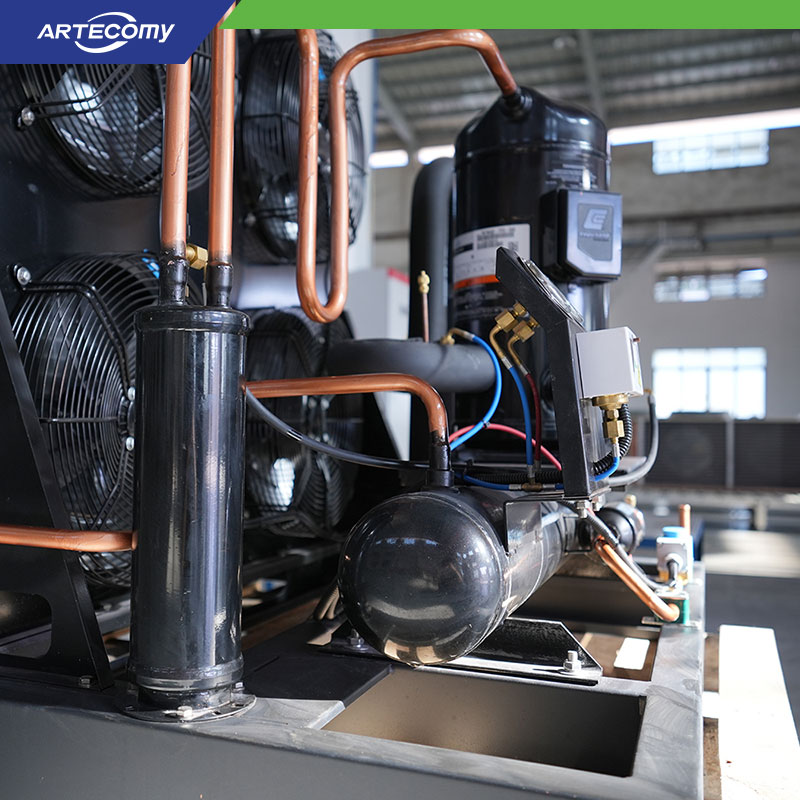

Emerson Copeland ZB220KQE 30HP Condensing Unit for Heavy-Duty Refrigeration Systems

Emerson Copeland ZB220KQE 30HP Condensing Unit for Heavy-Duty Refrigeration Systems

Product Series:

CV Air-Cooled

Compressor Brand:

Emerson Copeland

Compressor Model:

ZB220KQE

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Application Temperature:

5℃～15℃

Refrigerant:

R22, R404A, R507A

Product Origin:

United States

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

CP Series Condensing Units | Reliable 5℃～15℃ Cooling for Commercial & Industrial Needs

Meet the demands of modern cooling with the CP series air-cooled condensing units, tailored for high-temperature applications where precision and reliability are non-negotiable. Featuring Emerson Copeland’s industry-leading scroll compressors, these units combine cutting-edge technology with user-centric innovation.

Ideal For:

Food & beverage cooling (e.g., wine cellars, dairy storage)

Medical equipment temperature regulation

Agricultural product preservation

Product Parameter

Model				CVEBF10H	CVEAF12H	CVEBF13H	CVEBF15H	CVEBF20H	CVEBF22H	CVEBF25H	CVEBF30H
Power Supply				3P/380V/50Hz
Apply Temp.				5℃~15℃
Compressor	Model			ZB76KQE	ZB88KQ	ZB95KQE	ZB114KQE	ZB130KQE	ZB150KQE	ZB190KQE	ZB220KQE
Compressor	Max.I(A)			26.9	31.0	31.0	38.0	33.1	38.3	49.1	60.3
Capacity/Power KW)	Evap.	R22	10℃	34.4/7.7	39.2/8.7	42.1/9.8	50.7/11.7	56.2/12.4	66.1/15.4	82.9/19.3	101/23.5
			5℃	29.7/7.4	34.0/8.2	36.2/9.5	43.5/11.2	48.4/12.0	56.8/14.6	70.9/18.1	87.3/22.1
			0℃	25.3/7.2	29.0/8.1	30.7/9.2	36.8/10.9	41.2/11.6	48.4/14.4	59.8/17.8	74.7/21.8
		R404A R507A	10℃	34.2/8.8		42.0/11.3	50.8/13.3	54.6/13.9	66.2/17.9	82.9/22.5	102/27.1
			5℃	29.7/8.6		36.3/11.1	43.8/13.0	47.3/13.6	57.2/16.8	71.6/21.2	88.4/25.5
			0℃	25.5/8.4		31.3/10.8	37.5/12.7	40.6/13.2	49.0/16.6	61.3/20.8	75.7/25.0
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			1.8	2.4	2.4	2.4	4.4	4.4	5.1	6.6
	Power(W)			216×4	290×4	290×4	290×4	548×4	548×4	670×4	548×4
	Rev.(r/min)			1380	1380	1380	1380	1380	1380	1380	1380
Suction Line(mm)				φ35	φ35	φ35	φ35	φ42	φ42	φ42	φ42
Liquid Line(mm)				φ16	φ16	φ16	φ19	φ22	φ22	φ22	φ22
Weight			kg	214	233	233	243	324	393	437	519
Size	L (mm)			1260	1260	1260	1260	1650	1650	1650	2350
	W (mm)			950	950	950	950	1100	1100	1100	1100
	H (mm)			1340	1340	1340	1340	1630	1630	1630	1630
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
