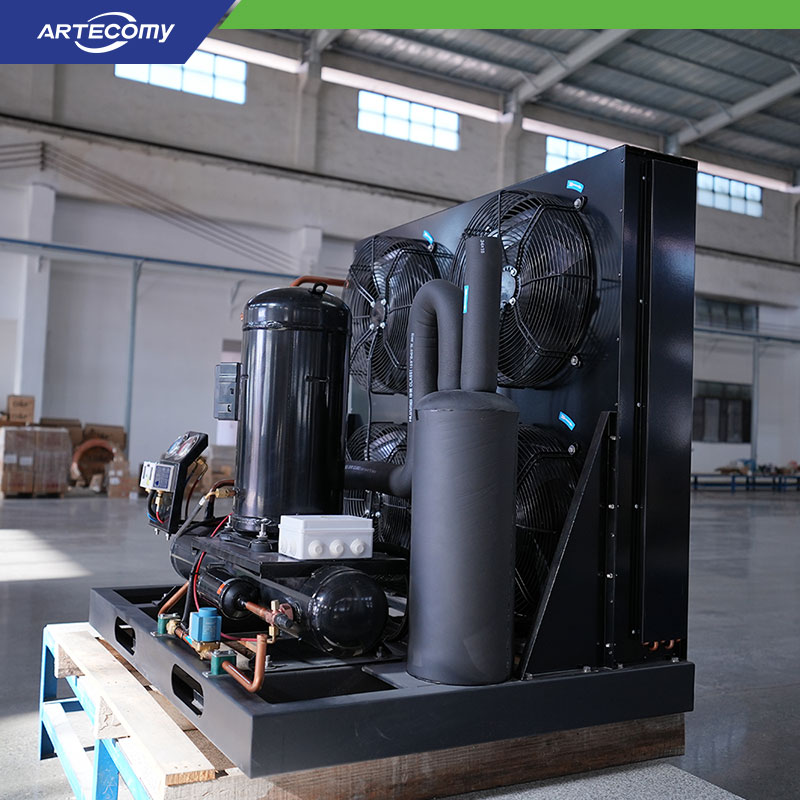

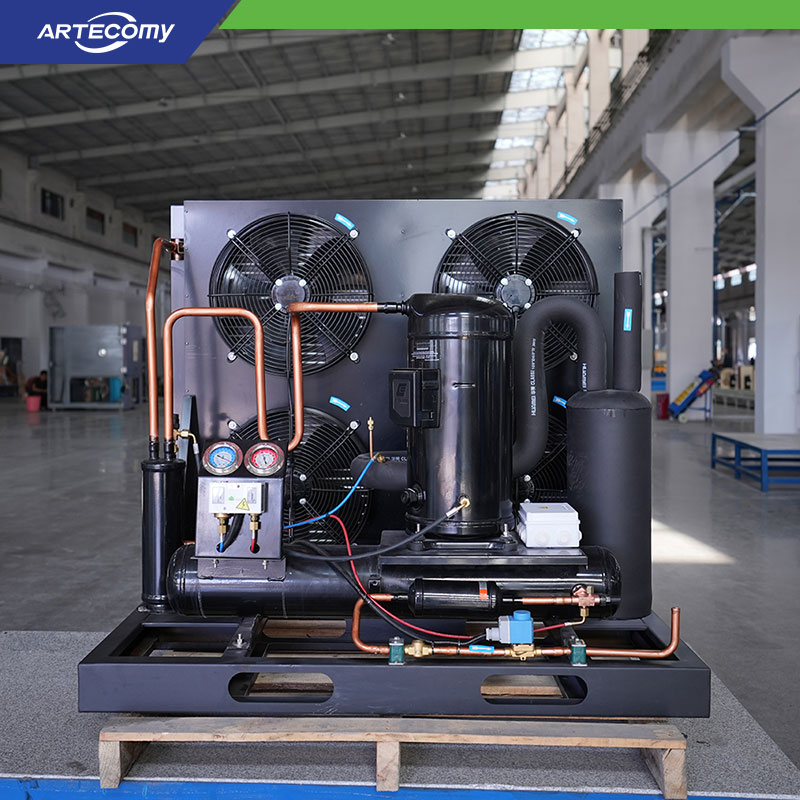

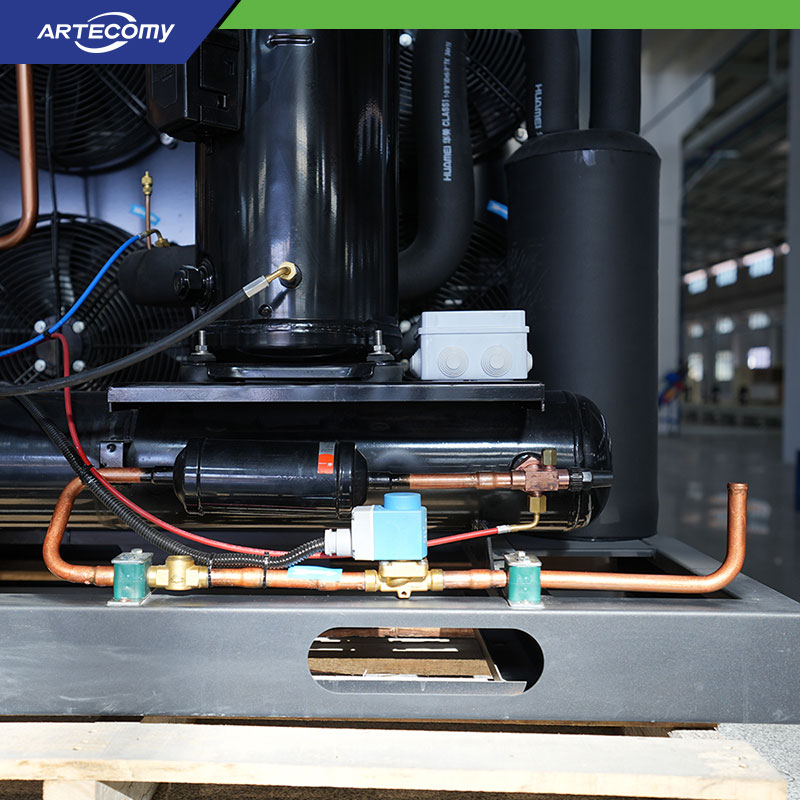

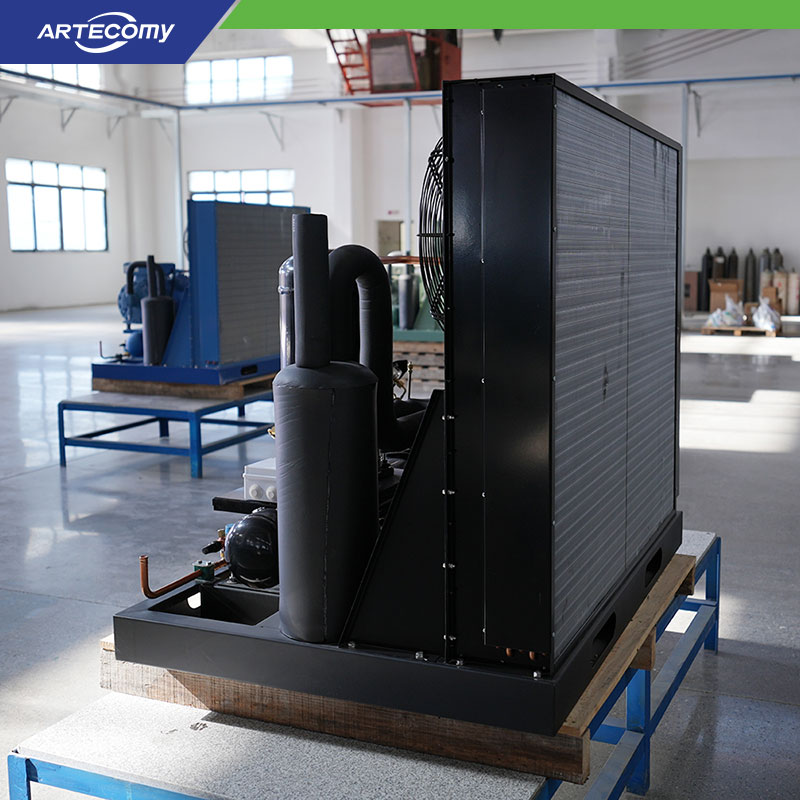

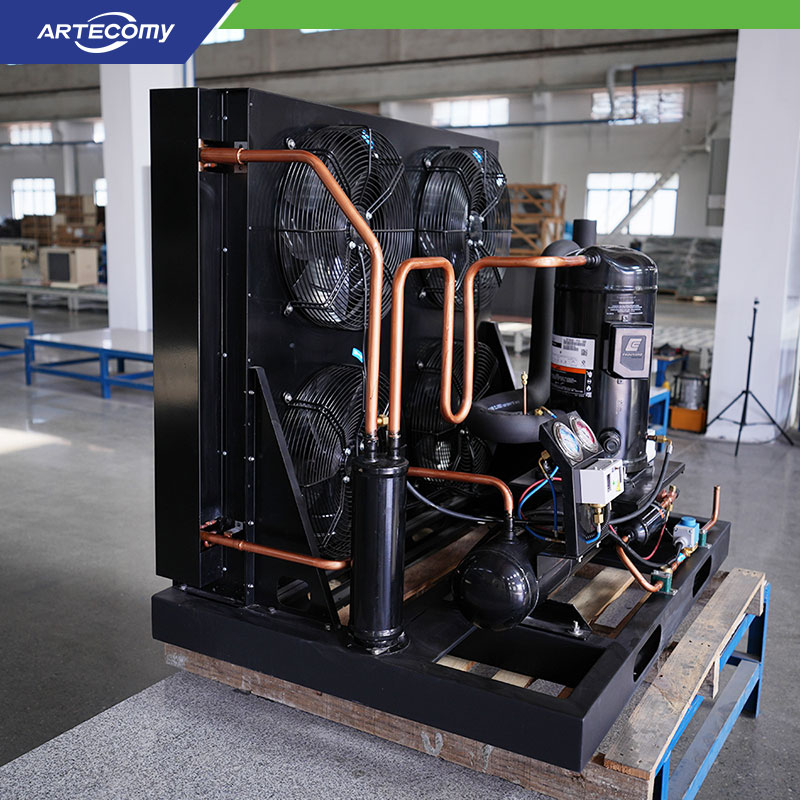

Emerson Copeland ZB66KQE 9HP Scroll Compressor Unit for Industrial Cold Room

Emerson Copeland ZB66KQE 9HP Scroll Compressor Unit for Industrial Cold Room

Product Series:

CV Air-Cooled

Compressor Brand:

Emerson Copeland

Compressor Model:

ZB66KQE

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Application Temperature:

5℃～15℃

Refrigerant:

R22, R404A, R507A

Product Origin:

United States

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

CP Series Condensing Units | Reliable 5℃～15℃ Cooling for Commercial & Industrial Needs

Meet the demands of modern cooling with the CP series air-cooled condensing units, tailored for high-temperature applications where precision and reliability are non-negotiable. Featuring Emerson Copeland’s industry-leading scroll compressors, these units combine cutting-edge technology with user-centric innovation.

Ideal For:

Food & beverage cooling (e.g., wine cellars, dairy storage)

Medical equipment temperature regulation

Agricultural product preservation

Product Parameter

Model				CVEBF02H	CVEBF03H	CVEBF04H	CVEBF05H	CVEBF06H	CVEBF07H	CVEBF08H	CVEBF09H
Power Supply				3P/380V/50Hz
Apply Temp.				5℃~15℃
Compressor	Model			ZB15KQE	ZB21KQE	ZB29KQE	ZB38KQE	ZB45KQE	ZB48KQE	ZB58KQE	ZB66KQE
Compressor	Max.I(A)			6.0	8.0	11.0	13.5	16.1	17.0	23.0	24.2
Capacity/Power KW)	Evap.	R22	10℃	6.7/1.6	9.8/2.4	13.1/3.1	16.3/3.9	19.6/4.5	21.6/4.9	26.1/5.8	29.3/6.5
			5℃	5.8/1.6	8.4/2.3	11.2/3.0	14.0/3.8	16.9/4.3	18.6/4.8	22.3/5.6	25.3/6.1
			0℃	4.9/1.5	7.1/2.3	9.6/2.9	11.9/3.7	14.4/4.2	15.9/4.7	18.9/5.5	21.5/6.1
		R404A R507A	10℃	6.5/1.8	9.7/2.6	13.2/3.4	16.7/4.3	19.6/4.8	21.5/5.3	25.9/6.6	28.8/7.5
			5℃	5.6/1.7	8.4/2.5	11.4/3.3	14.4/4.2	16.9/4.8	18.6/5.3	22.4/6.5	25.0/7.2
			0℃	4.8/1.7	7.2/2.5	9.8/3.3	12.4/4.1	14.5/4.7	15.9/5.2	19.2/6.4	21.4/7.1
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			0.46	0.92	0.92	0.92	1.2	1.2	1.2	1.8
	Power(W)			216×1	216×2	216×2	216×2	290×2	290×2	290×2	216×4
	Rev.(r/min)			1380	1380	1380	1380	1380	1380	1380	1380
Suction Line(mm)				φ19	φ19	φ22	φ22	φ22	φ22	φ28	φ35
Liquid Line(mm)				φ9.52	φ9.52	φ12.7	φ12.7	φ12.7	φ12.7	φ16	φ16
Weight			kg	78	103	114	122	147	149	173	211
Size	L (mm)			850	1050	1050	1050	1260	1260	1260	1260
	W (mm)			750	780	780	780	850	850	850	950
	H (mm)			590	740	740	740	890	890	890	1340
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
