Emerson Copeland ZB114KQE 15HP Scroll Compressor Unit for Large-Scale Retail Cooling

Emerson Copeland ZB114KQE 15HP Scroll Compressor Unit for Large-Scale Retail Cooling

Product Series:

BT Air-Cooled

Compressor Brand:

Emerson Copeland

Compressor Model:

ZB114KQE

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Application Temperature:

5℃～15℃

Refrigerant:

R22, R404A, R507A

Product Origin:

United States

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

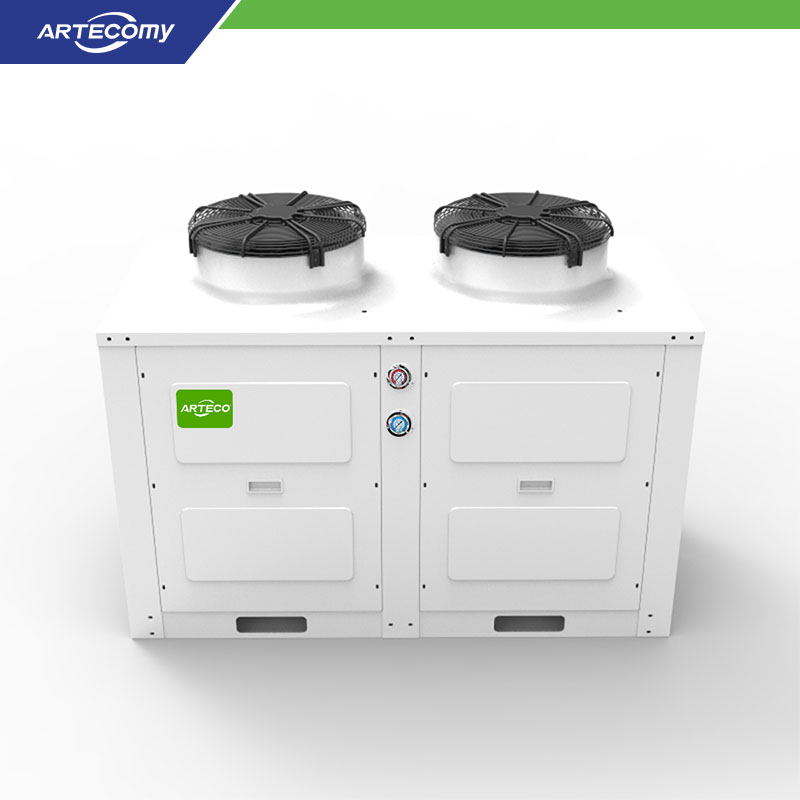

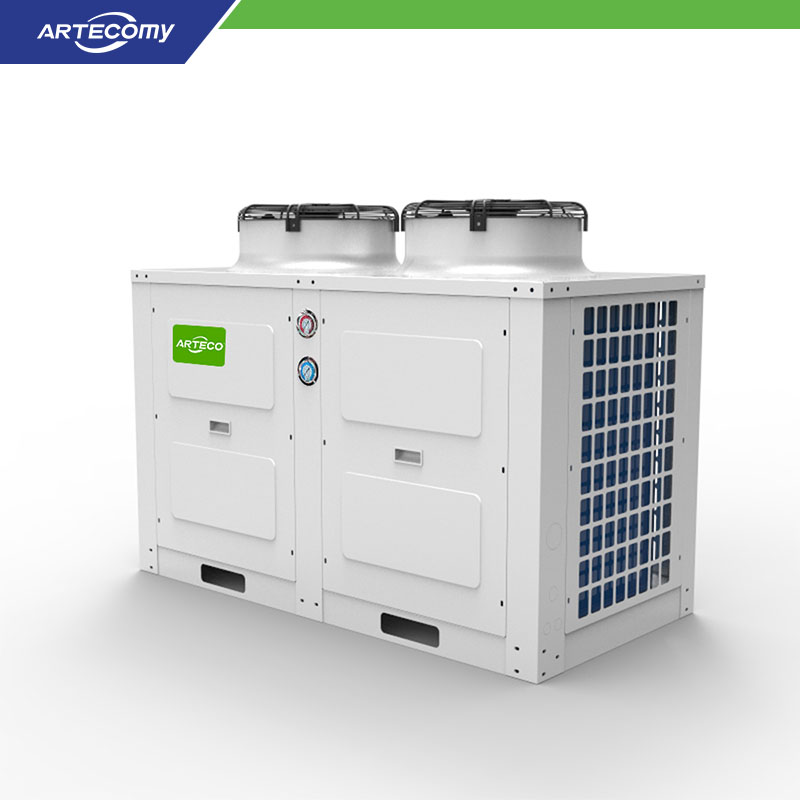

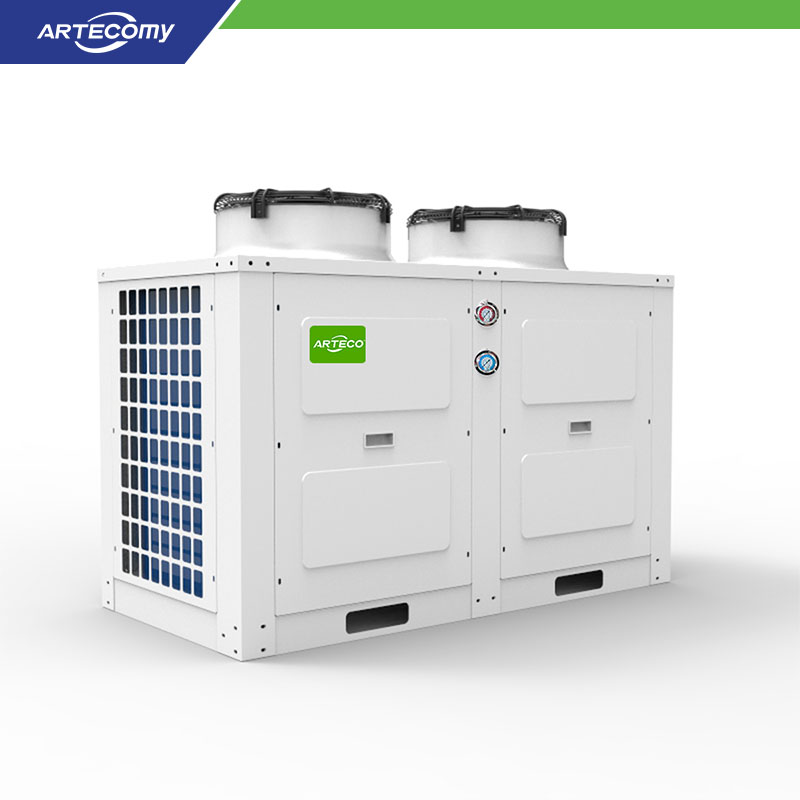

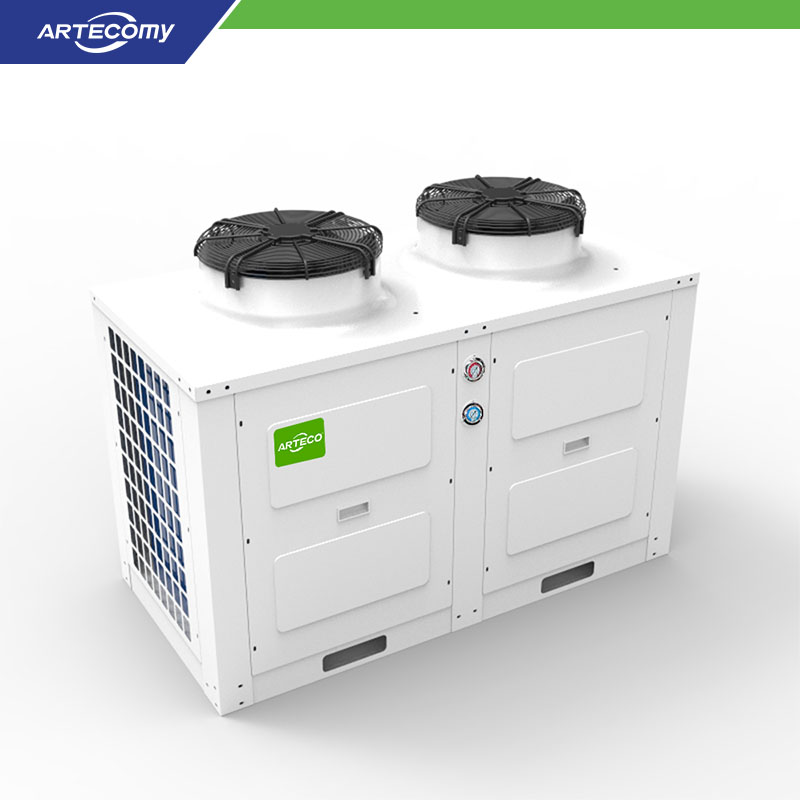

The BT series box condensing units are specifically designed for cold storage applications.

Equipped with Emerson ZB series hermetic scroll compressors, these units ensure high quality and reliability. The design accommodates temperature ranges between 5 to 15°C.

Featuring a large-radius, overall-stretched high air flow design, these units provide excellent air guiding, low noise levels, and an attractive appearance.

The cabinet panels are lined with honeycomb sound-absorbing material to significantly reduce operational noise and metal resonance.

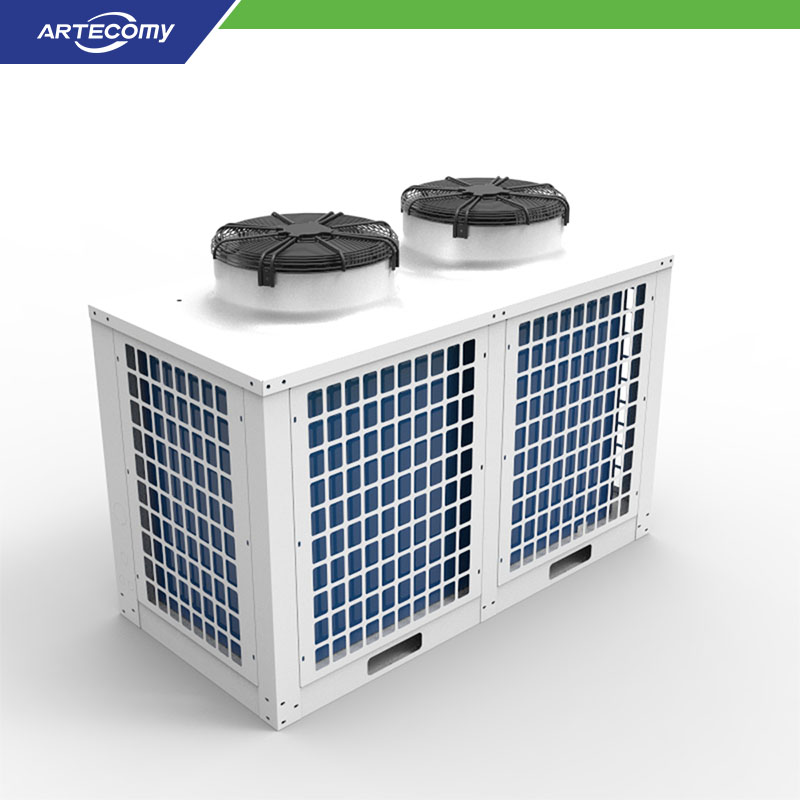

Designed with a U-type condenser, these units maximize wind exposure with minimal resistance, enhancing heat exchange efficiency.

Compatible with a range of refrigerants, including R22, R404A, R507A, R448A, and R449A.

Product Parameter

Model				BTEAF12H	BTEBF13H	BTEBF15H	BTEBF20H	BTEBF22H	BTEBF25H
Power Supply				3P/380V/50Hz
Apply Temp.				5℃~15℃
Compressor	Model			ZB88KQE	ZB95KQE	ZB114KQE	ZB130KQE	ZB150KQE	ZB190KQE
Compressor	Max.I(A)			31.0	31.0	38.0	33.1	38.3	49.1
Capacity/Power KW)	Evap.	R22	10℃	39.2/8.7	42.1/9.8	50.7/11.7	56.2/12.4	66.1/15.4	82.9/19.3
			5℃	34.0/8.2	36.2/9.5	43.5/11.2	48.4/12.0	56.8/14.6	70.9/18.1
			0℃	29.0/8.1	30.7/9.2	36.8/10.9	41.2/11.6	48.4/14.4	59.8/17.8
		R404A R507A	10℃		42.0/11.3	50.8/13.3	54.6/13.9	66.2/17.9	82.9/22.5
			5℃		36.3/11.1	43.8/13.0	47.3/13.6	57.2/16.8	71.6/21.2
			0℃		31.3/10.8	37.5/12.7	40.6/13.2	49.0/16.6	61.3/20.8
Fan	Voltage (V)			3P/380V/50Hz
	Current(A)			2.2	2.2	3.5	3.5	3.5	5.2
	Power(W)			548×2	548×2	937×2	937×2	937×2	937×3
	Rev.(r/min)			1380	1380	1380	1380	1380	1380
Suction Line(mm)				φ35	φ35	φ35	φ42	φ42	φ42
Liquid Line(mm)				φ16	φ16	φ19	φ22	φ22	φ22
Weight			kg	265	265	317	346	405	512
Size	L (mm)			1650	1650	1850	1850	1850	2500
	W (mm)			815	815	915	915	915	915
	H (mm)			1202	1202	1329	1329	1329	1329
※Remarks: Parameter calibration working condition, ambient temperature 32℃, superheat 10K.
