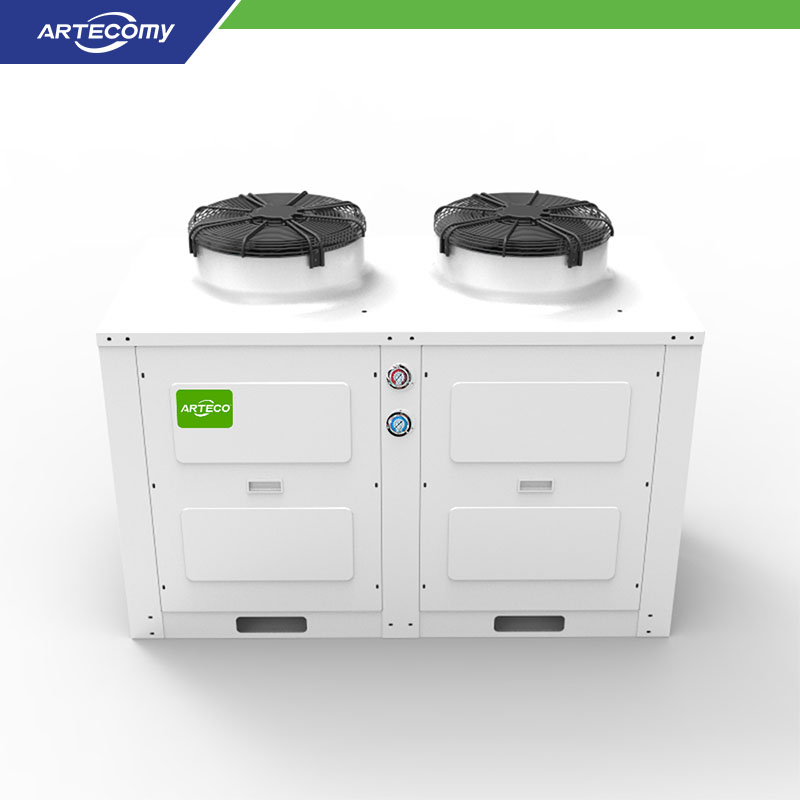

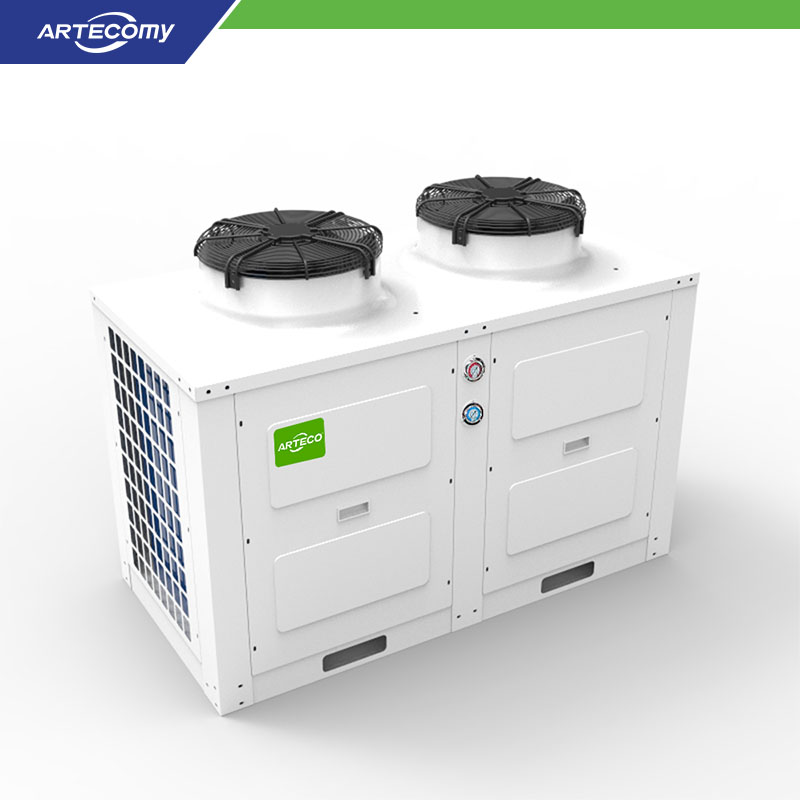

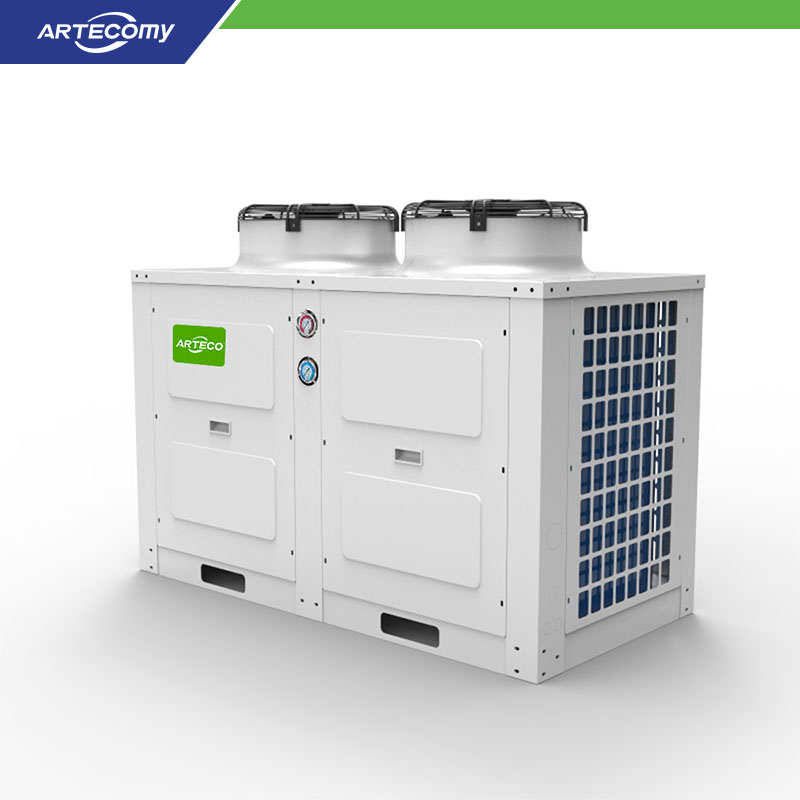

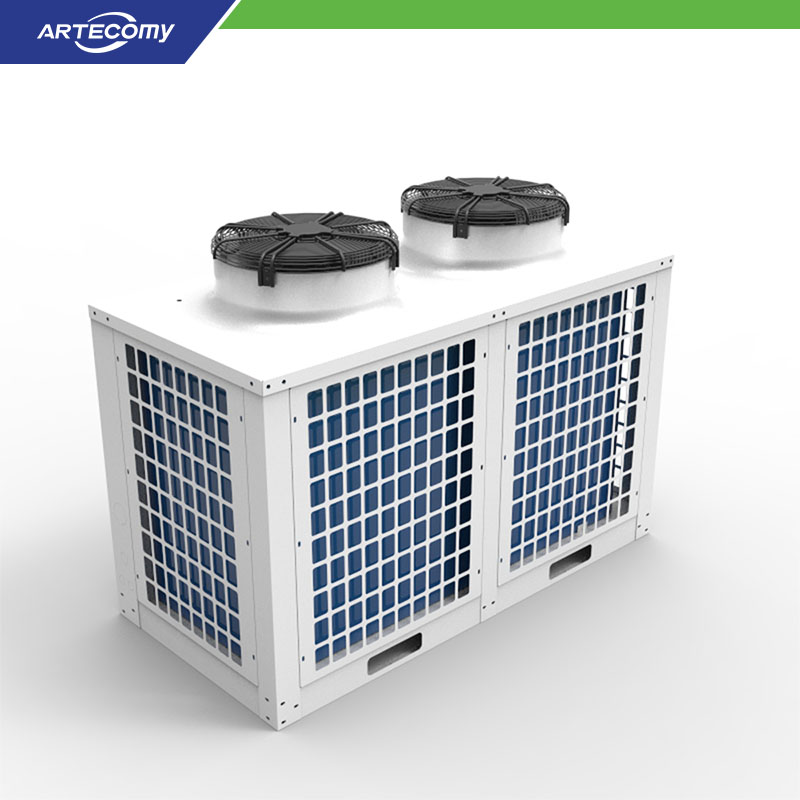

The BT Series delivers dependable cooling for cold storage, ideal for restaurants, labs, and more (﹣5 to 5°C). Featuring quiet Emerson compressors and sound-dampening design, they minimize noise. Efficient U-type condensers ensure fast heat exchange. Compatible with multiple refrigerants (R22, R404A, etc.).
Product Parameter
| Model | BTEAF12M | BTEBF13M | BTEBF15M | BTEBF20M | BTEBF22M | BTEBF25M | BTEBF30M |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -5℃~5℃ |
| Compressor | Model | ZB88KQE | ZB95KQE | ZB114KQE | ZB130KQE | ZB150KQE | ZB190KQE | ZB220KQE |
| Max.I(A) | 26.9 | 31.0 | 38.0 | 33.1 | 38.3 | 49.1 | 60.3 |
| Capacity/Power (KW) | Evap. | R22 | -5℃ | 23.9/8.1 | 25.1/9.1 | 30.0/10.8 | 33.8/11.4 | 40.1/14.3 | 49.1/17.8 | 62.2/21.4 |
| -8℃ | 21.2/8.1 | 21.9/9.0 | 26.2/10.7 | 29.7/11.3 | 35.6/14.2 | 43.3/17.7 | 55.2/21.3 |
| -10℃ | 19.6/8.0 | 20.3/8.8 | 24.2/10.5 | 27.3/11.2 | 32.9/14.2 | 40.1/17.7 | 51.2/21.2 |
| R404A R507A | -5℃ |
| 25.8/10.7 | 30.7/12.7 | 33.5/13.1 | 40.4/16.3 | 50.6/20.6 | 62.5/24.8 |
| -8℃ |
| 22.9/10.6 | 27.1/12.5 | 29.8/13.0 | 35.9/16.2 | 44.9/20.4 | 55.5/24.6 |
| -10℃ |
| 21.5/10.4 | 25.3/12.3 | 27.9/13.0 | 33.6/16.2 | 42.1/20.4 | 52.0/24.6 |
| Fan | Voltage (V) | 3P/380V/50Hz |
| Current(A) | 2.2 | 2.2 | 2.2 | 3.5 | 3.5 | 5.2 | 5.2 |
| Power(W) | 548×2 | 548×2 | 548×2 | 937×2 | 937×2 | 937×3 | 937×3 |
| Rev.(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Suction Line(mm) | φ35 | φ35 | φ35 | φ42 | φ42 | φ42 | φ42 |
| Liquid Line(mm) | φ16 | φ16 | φ19 | φ22 | φ22 | φ22 | φ22 |
| Weight | kg | 242 | 242 | 253 | 330 | 387 | 481 | 509 |
| Size | L (mm) | 1650 | 1650 | 1650 | 1850 | 1850 | 2500 | 2500 |
| W (mm) | 815 | 815 | 815 | 915 | 915 | 915 | 915 |
| H (mm) | 1202 | 1202 | 1202 | 1329 | 1329 | 1329 | 1329 |
|
