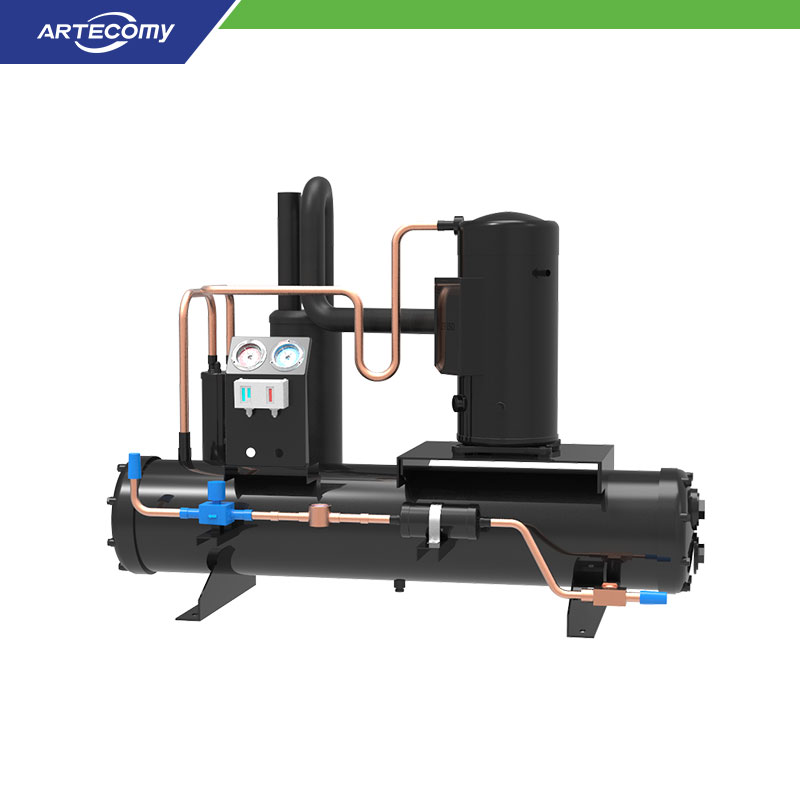

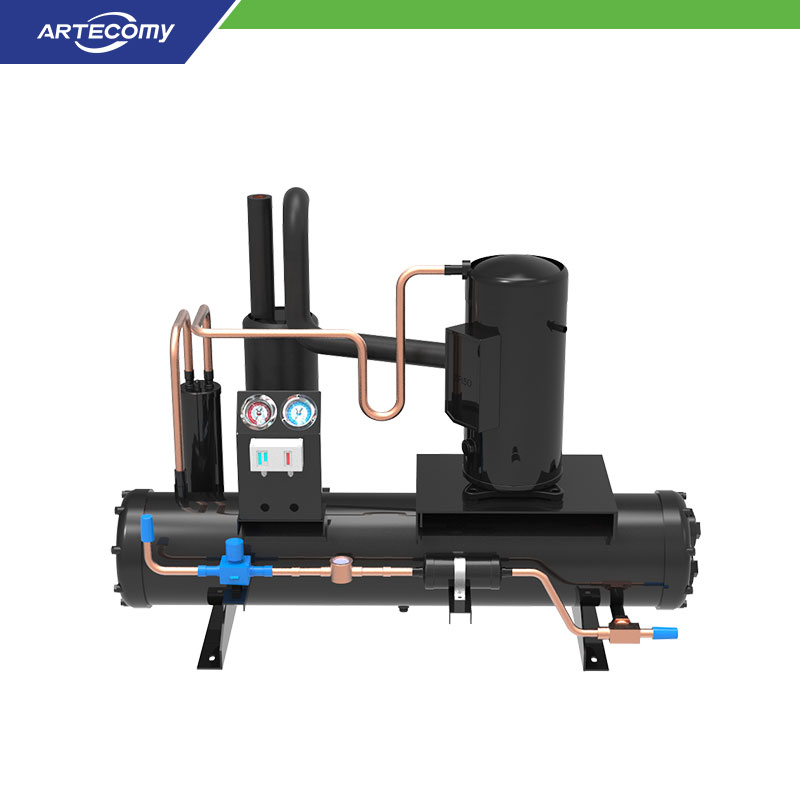

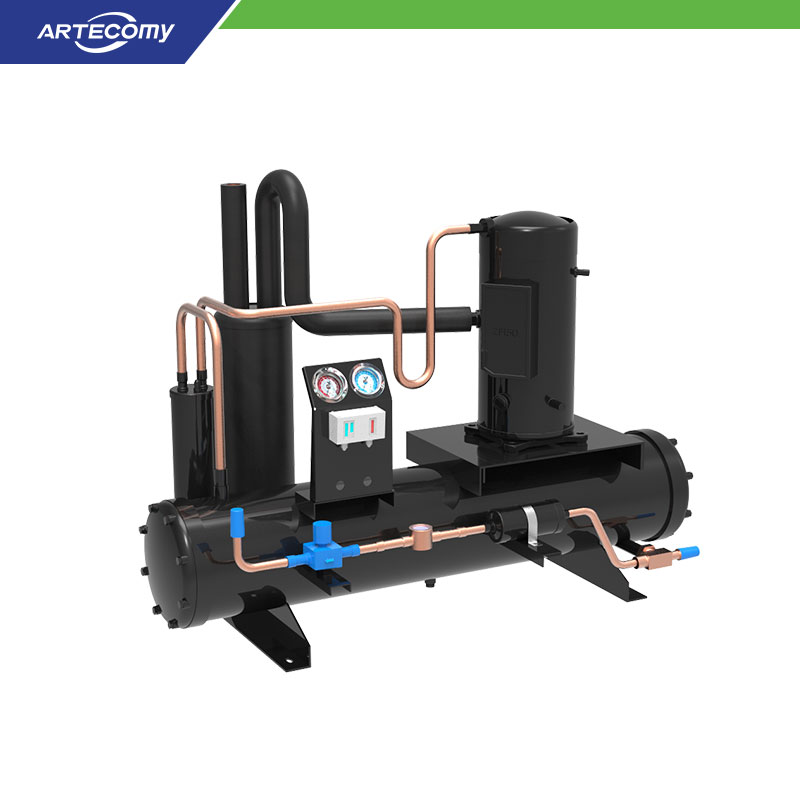

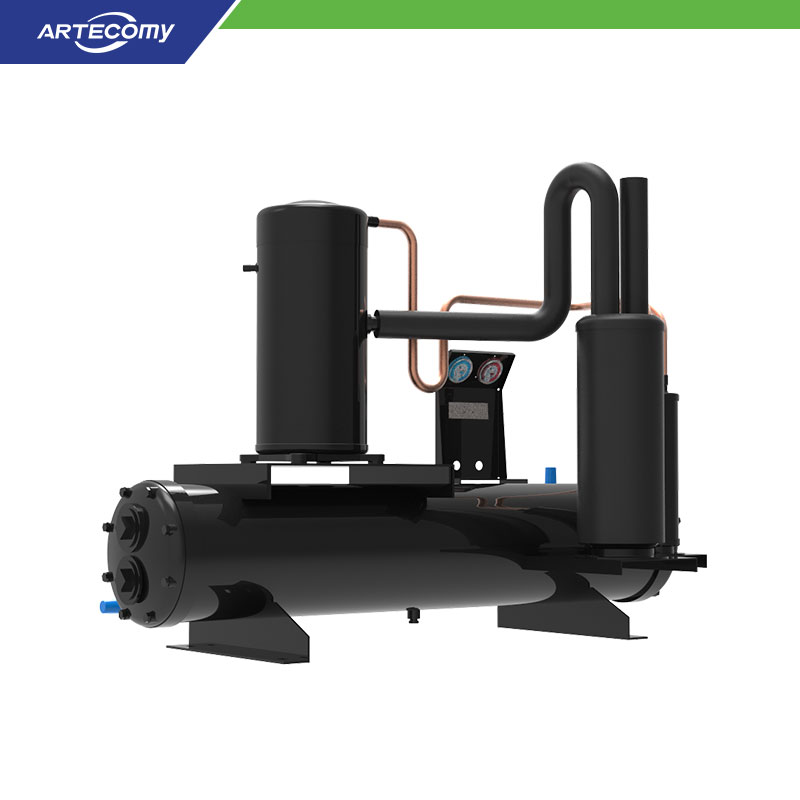

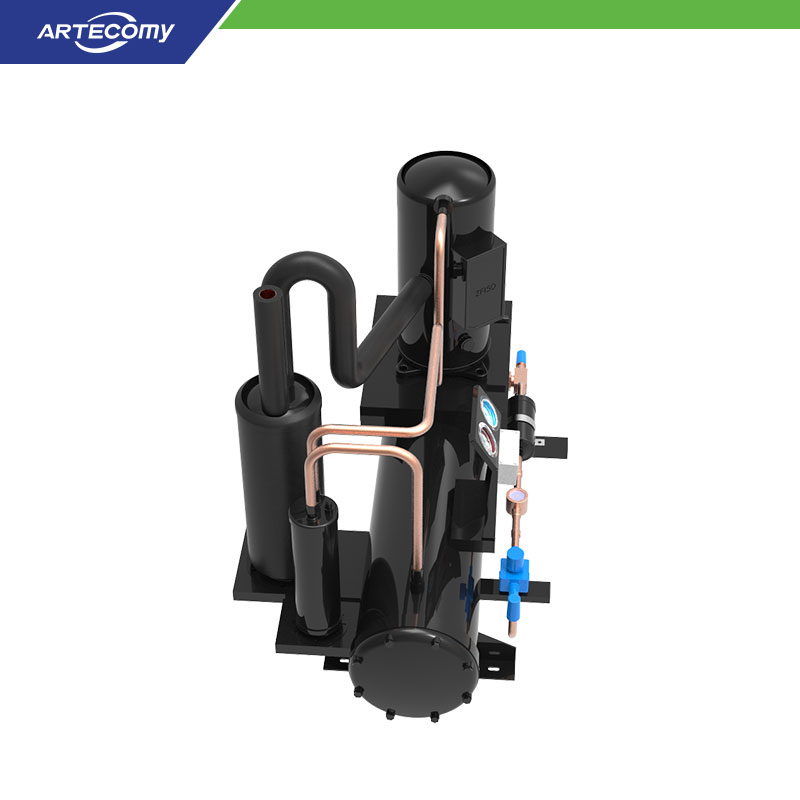

The CV series open water-cooled condensing unit is mainly developed for cold storage applications;
The condensing unit adopts Emerson ZB or ZFl series fully enclosed scroll compressors with good quality and high reliability;
Temperature range: -5~5 ℃;
Adopting an efficient shell and tube condenser, it has good cooling effect, low condensation temperature and high energy efficiency;
The shell and tube condenser, compressor, and various accessories are installed on the same rack, with a compact structure and easy operation and maintenance;
Can meet the needs of refrigerants such as R22, R404A, R507A, R448A, R449A, etc.
Product Parameter
| Model | CVEBS05M | CVEBS06M | CVEBS07M | CVEBS08M | CVEBS09M | CVEBS10M |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -5℃~5℃ |
| Compressor | Model | ZB38KQE | ZB45KQE | ZB48KQE | ZB58KQE | ZB66KQE | ZB76KQE |
| Max.I(A) | 13.5 | 16.1 | 17.0 | 23.0 | 24.2 | 26.9 |
| Capacity/Power (KW) | Evap.Temp. | R22 | -5℃ | 10.7/3.2 | 12.9/3.8 | 14.2/4.1 | 16.6/4.9 | 19.0/5.4 | 22.4/6.4 |
| -8℃ | 9.5/3.2 | 11.6/3.8 | 12.7/4.1 | 14.8/4.9 | 17.1/5.4 | 20.1/6.3 |
| -10℃ | 8.8/3.2 | 10.7/3.7 | 11.8/4.1 | 13.5/4.9 | 15.7/5.4 | 18.6/6.3 |
| R404A R507A | -5℃ | 11.5/3.7 | 13.4/4.2 | 14.8/4.6 | 17.7/5.7 | 19.9/6.4 | 23.6/7.5 |
| -8℃ | 10.3/3.7 | 12.1/4.2 | 13.2/4.6 | 16.0/5.7 | 17.9/6.4 | 21.2/7.4 |
| -10℃ | 9.5/3.7 | 11.1/4.2 | 12.2/4.6 | 14.7/5.7 | 16.3/6.3 | 19.6/7.4 |
| Condenser | Water Flow(m³/h) | 3.3 | 3.8 | 4.2 | 5.0 | 5.7 | 6.7 |
| Water Connect(inch) | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 | Rc1-1/2 |
| Suction Line(mm) | φ22 | φ22 | φ22 | φ28 | φ35 | φ35 |
| Liquid Line(mm) | φ12.7 | φ12.7 | φ12.7 | φ16 | φ16 | φ16 |
| Weight | kg | 119 | 121 | 124 | 143 | 158 | 161 |
| Size | L (mm) | 1140 | 1140 | 1140 | 1140 | 1390 | 1390 |
| W (mm) | 650 | 650 | 650 | 650 | 650 | 650 |
| H (mm) | 880 | 880 | 885 | 926 | 1025 | 1025 |
|
