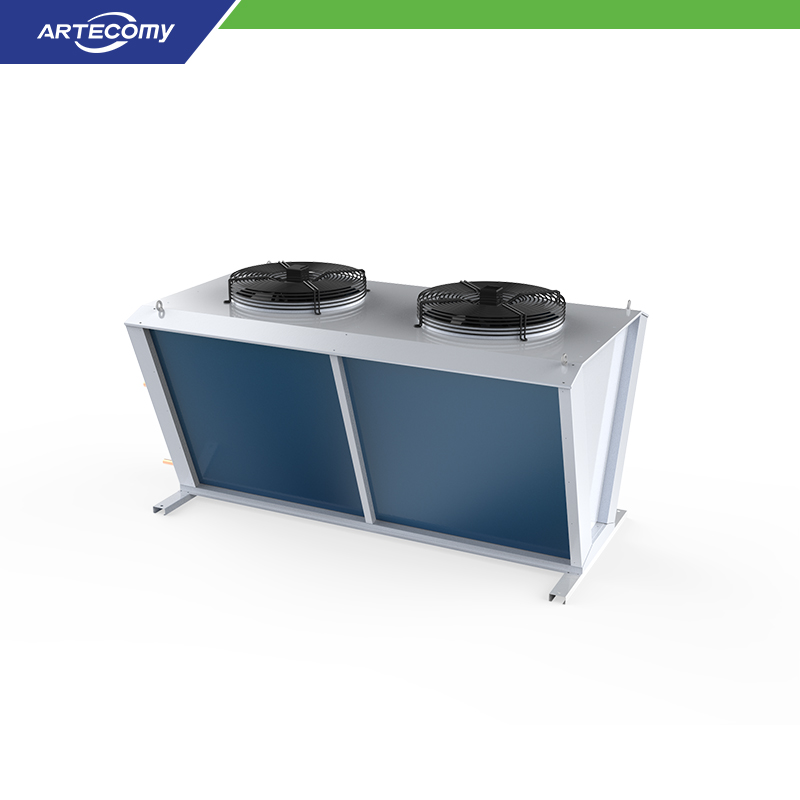

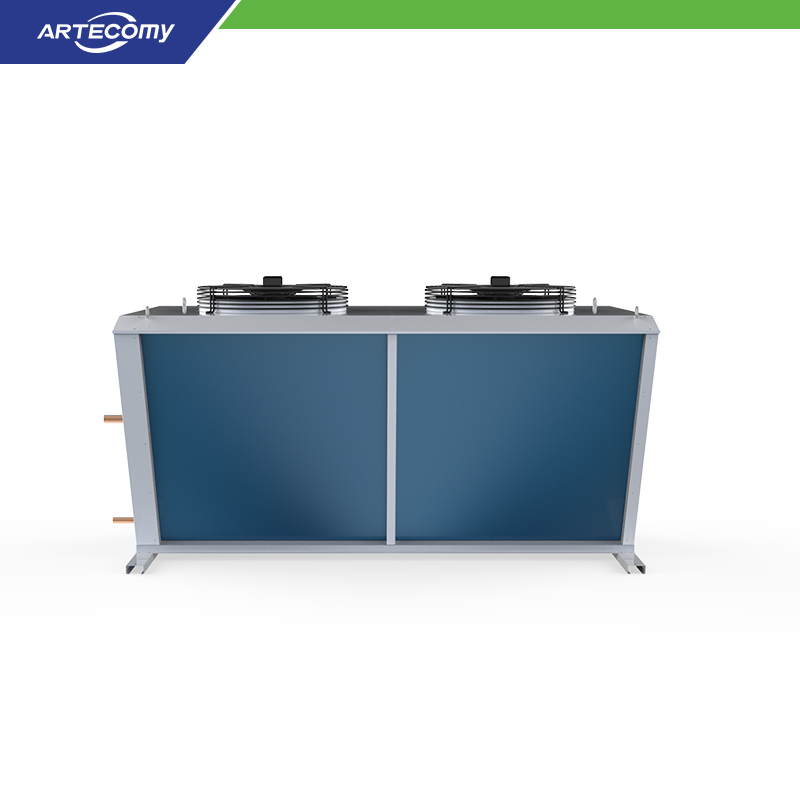

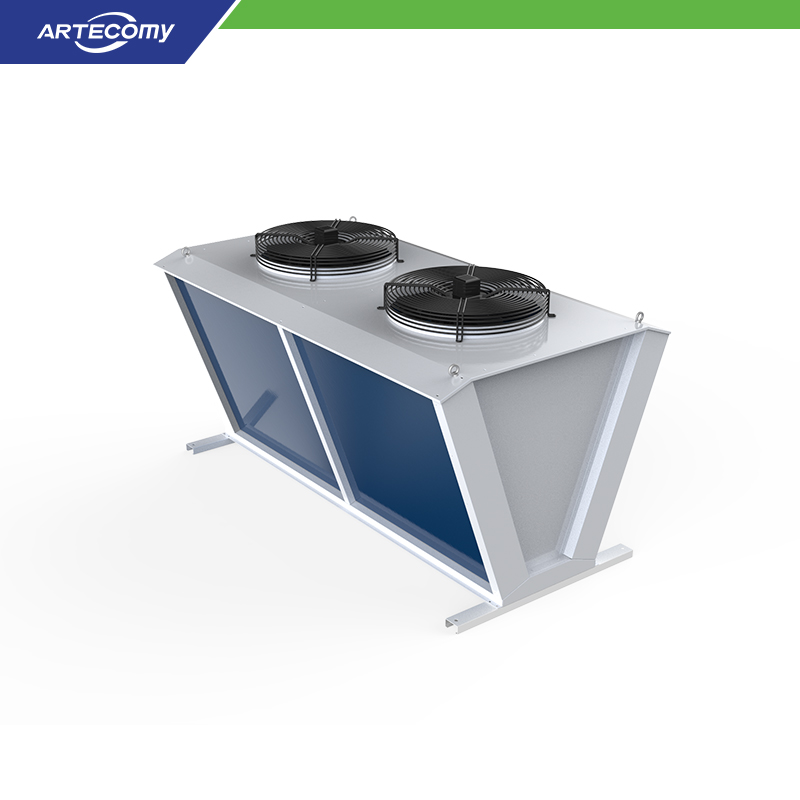

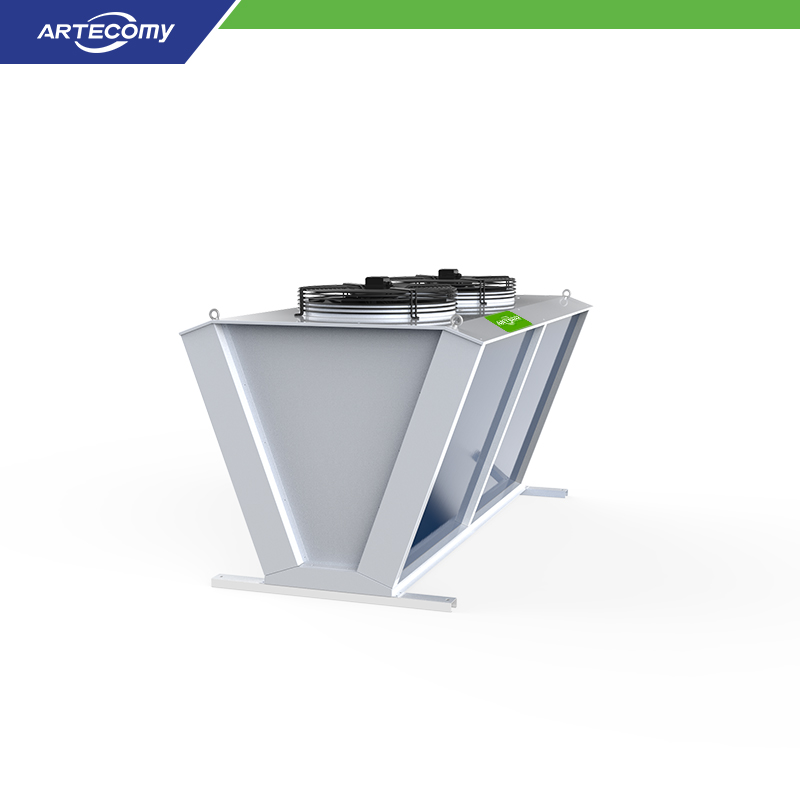

The FV series condenser adopts a V-shaped structure design, with air inlet on both sides and air outlet on the top. lt has a larger windward side, low wind resistance, and good heat transfer effect.
Adopting a box shaped structure, the wind ring adopts a high wind ring design with large rounded corners that are stretched as a whole, which has good air guiding effect and classic appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of 25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 500 and 630; Product test pressure: 30bar
4. Can meet the needs of refrigerants such as R404A,R507A, R448A, R449A, R134A, R22. etc.
Product Parameter
|
Model
|
Heat Exchange (KW)
|
Area (m²)
|
Tube Volume (dm³)
|
Fan
|
Noise dB(A)
|
Take Over Specifications
|
Weight (kg)
|
|
ΔT=15K
|
Air Volume (m³/h)
|
Power (W)
|
Electric Current (A)
|
Intake
|
Transudate
|
|
FV98/502AF
|
42.5
|
97.5
|
13.0
|
14000
|
1100
|
2.2
|
72
|
2XΦ28
|
2XΦ22
|
121
|
|
FV122/502AF
|
48.3
|
121.9
|
16.3
|
13800
|
1100
|
2.2
|
72
|
2XΦ28
|
2XΦ22
|
129
|
|
FV146/502AF
|
52.6
|
146.3
|
19.5
|
13600
|
1100
|
2.2
|
72
|
2XΦ28
|
2XΦ22
|
137
|
|
FV146/503AF
|
63.7
|
146.3
|
19.5
|
21000
|
1650
|
3.3
|
72
|
2XΦ28
|
2XΦ22
|
167
|
|
FV183/503AF
|
72.4
|
182.8
|
24.4
|
20700
|
1650
|
3.3
|
72
|
2XΦ28
|
2XΦ22
|
180
|
|
FV219/503AF
|
78.9
|
219.4
|
29.3
|
20400
|
1650
|
3.3
|
72
|
2XΦ28
|
2XΦ22
|
192
|
|
FV195/504AF
|
85.0
|
195.0
|
26.0
|
28000
|
2200
|
4.4
|
73
|
2XΦ35
|
2XΦ22
|
215
|
|
FV244/504AF
|
96.5
|
243.8
|
32.6
|
27600
|
2200
|
4.4
|
73
|
2XΦ35
|
2XΦ22
|
231
|
|
FV293/504AF
|
105.2
|
292.5
|
39.1
|
27200
|
2200
|
4.4
|
73
|
2XΦ35
|
2XΦ22
|
248
|
|
FV244/505AF
|
106.2
|
243.8
|
32.6
|
35000
|
2750
|
5.5
|
73
|
2XΦ35
|
2XΦ22
|
262
|
|
FV305/505AF
|
120.6
|
304.7
|
40.7
|
34500
|
2750
|
5.5
|
73
|
2XΦ35
|
2XΦ22
|
282
|
|
FV366/505AF
|
131.4
|
365.7
|
48.8
|
34000
|
2750
|
5.5
|
73
|
2XΦ35
|
2XΦ22
|
303
|
|
FV146/632AF
|
63.7
|
146.3
|
19.5
|
20000
|
1874
|
3.5
|
78
|
2XΦ28
|
2XΦ22
|
178
|
|
FV183/632AF
|
72.4
|
182.8
|
24.4
|
19800
|
1874
|
3.5
|
78
|
2XΦ28
|
2XΦ22
|
191
|
|
FV219/632AF
|
78.9
|
219.4
|
29.3
|
19600
|
1874
|
3.5
|
78
|
2XΦ28
|
2XΦ22
|
203
|
|
FV219/633AF
|
95.6
|
219.4
|
29.3
|
30000
|
2811
|
5.3
|
78
|
2XΦ35
|
2XΦ22
|
246
|
|
FV274/633AF
|
108.6
|
274.2
|
36.6
|
29700
|
2811
|
5.3
|
78
|
2XΦ35
|
2XΦ22
|
265
|
|
FV329/633AF
|
118.3
|
329.1
|
43.9
|
29400
|
2811
|
5.3
|
78
|
2XΦ35
|
2XΦ22
|
283
|
|
FV293/634AF
|
127.5
|
292.5
|
39.1
|
40000
|
3748
|
7.0
|
79
|
2XΦ42
|
2XΦ28
|
315
|
|
FV366/634AF
|
144.8
|
365.7
|
48.8
|
39600
|
3748
|
7.0
|
79
|
2XΦ42
|
2XΦ28
|
340
|
|
FV439/634AF
|
157.7
|
438.8
|
58.6
|
39200
|
3748
|
7.0
|
79
|
2XΦ42
|
2XΦ28
|
364
|
|
FV366/635AF
|
159.3
|
365.7
|
48.8
|
50000
|
4685
|
8.8
|
79
|
2XΦ50
|
2XΦ35
|
383
|
|
FV457/635AF
|
181.0
|
457.1
|
61.0
|
49500
|
4685
|
8.8
|
79
|
2XΦ50
|
2XΦ35
|
414
|
|
FV548/635AF
|
197.2
|
548.5
|
73.2
|
49000
|
4685
|
8.8
|
79
|
2XΦ50
|
2XΦ35
|
445
|
|
Model
|
External Dimensions (mm)
|
Installation Size (mm)
|
|
L
|
W
|
H
|
A
|
B
|
B1
|
B2
|
B3
|
B4
|
B5
|
Mounting Hole
|
|
FV*/502**
|
1740
|
980
|
945
|
860
|
1630
|
815
|
815
|
/
|
/
|
/
|
6-Φ13
|
|
FV*/503**
|
2540
|
980
|
945
|
860
|
2430
|
815
|
800
|
815
|
/
|
/
|
8-Φ13
|
|
FV*/504**
|
3340
|
980
|
945
|
860
|
3230
|
815
|
800
|
800
|
815
|
/
|
10-Φ13
|
|
FV*/505**
|
4140
|
980
|
945
|
860
|
4030
|
815
|
800
|
800
|
800
|
815
|
12-Φ13
|
|
FV*/632**
|
1740
|
1250
|
1330
|
1160
|
1630
|
815
|
815
|
/
|
/
|
/
|
6-Φ13
|
|
FV*/633**
|
2540
|
1250
|
1330
|
1160
|
2430
|
815
|
800
|
815
|
/
|
/
|
8-Φ13
|
|
FV*/634**
|
3340
|
1250
|
1330
|
1160
|
3230
|
815
|
800
|
800
|
815
|
/
|
10-Φ13
|
|
FV*/635**
|
4140
|
1250
|
1330
|
1160
|
4030
|
815
|
800
|
800
|
800
|
815
|
12-Φ13
|
