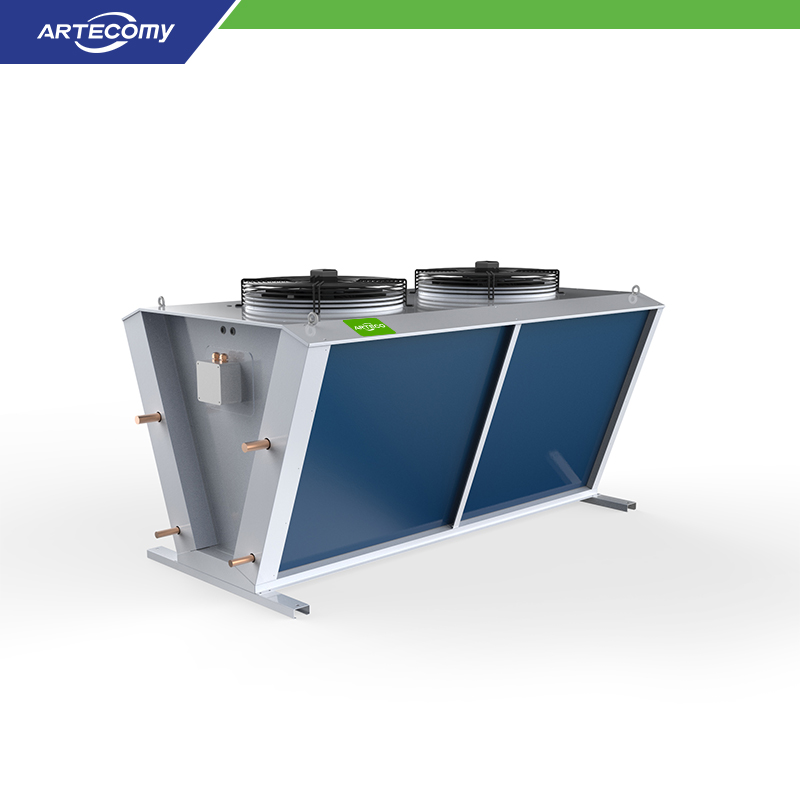

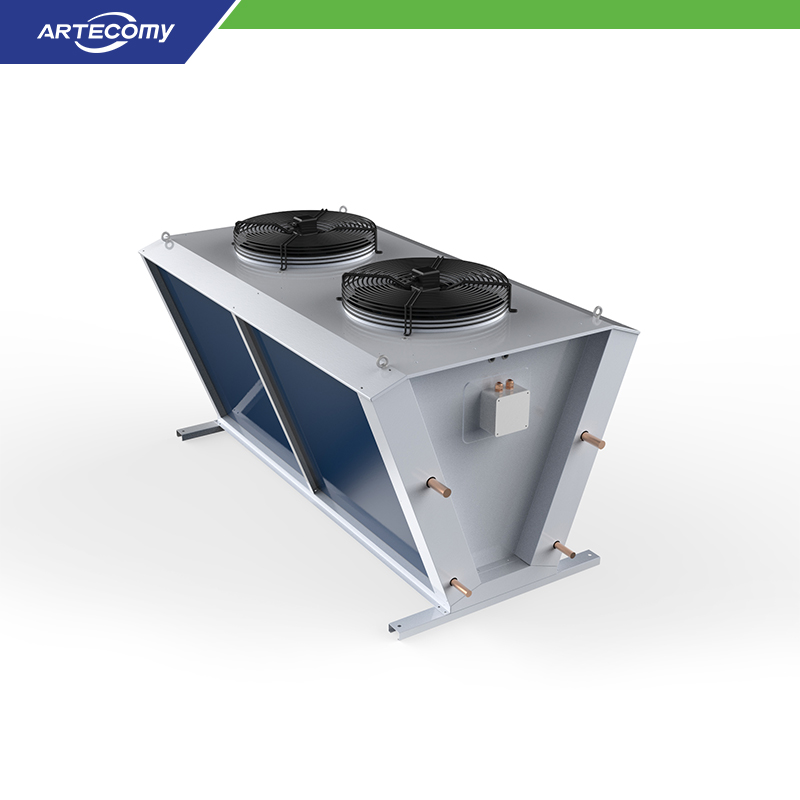

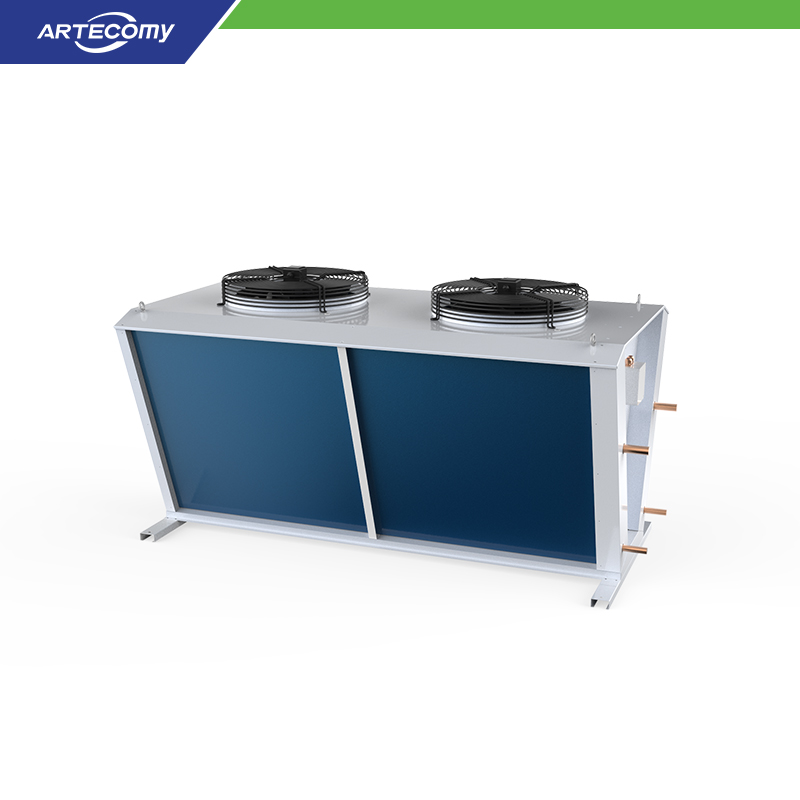

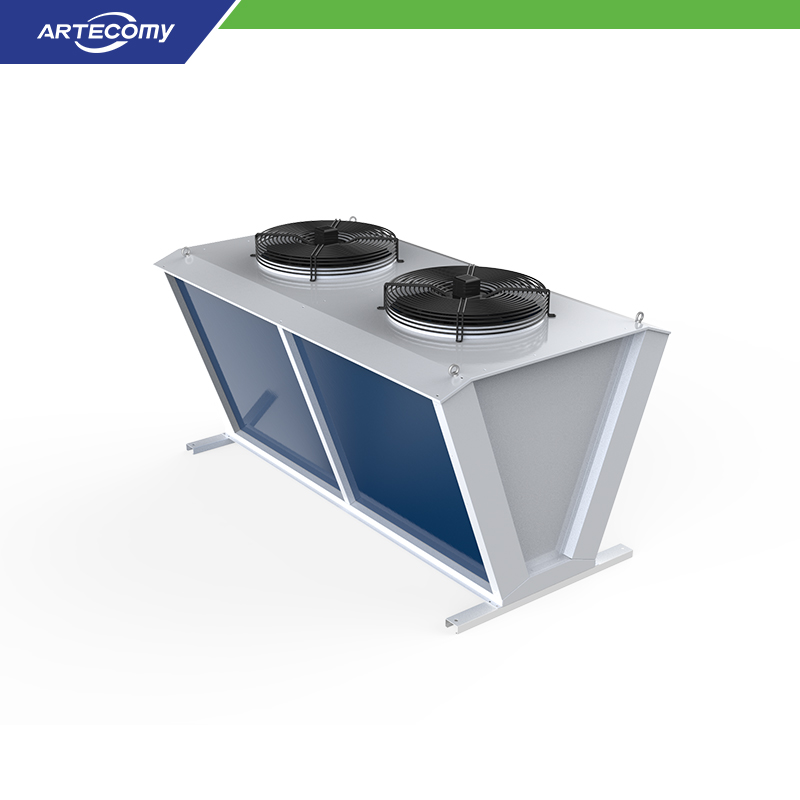

The FV series condenser adopts a V-shaped structure design, with air inlet on both sides and air outlet on the top. lt has a larger windward side, low wind resistance, and good heat transfer effect.
Adopting a box shaped structure, the wind ring adopts a high wind ring design with large rounded corners that are stretched as a whole, which has good air guiding effect and classic appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of 25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 500 and 630; Product test pressure: 30bar
4. Can meet the needs of refrigerants such as R404A,R507A, R448A, R449A, R134A, R22. etc.
Product Parameter
| Model | Heat Exchange (KW) | Area (m²) | Tube Volume (dm³) | Fan | Noise dB(A) | Take Over Specifications | Weight (kg) |
| ΔT=15K | Air Volume (m³/h) | Power (W) | Electric Current (A) | Intake | Transudate |
| FV98/502AF | 42.5 | 97.5 | 13.0 | 14000 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 121 |
| FV122/502AF | 48.3 | 121.9 | 16.3 | 13800 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 129 |
| FV146/502AF | 52.6 | 146.3 | 19.5 | 13600 | 1100 | 2.2 | 72 | 2XΦ28 | 2XΦ22 | 137 |
| FV146/503AF | 63.7 | 146.3 | 19.5 | 21000 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 167 |
| FV183/503AF | 72.4 | 182.8 | 24.4 | 20700 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 180 |
| FV219/503AF | 78.9 | 219.4 | 29.3 | 20400 | 1650 | 3.3 | 72 | 2XΦ28 | 2XΦ22 | 192 |
| FV195/504AF | 85.0 | 195.0 | 26.0 | 28000 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 215 |
| FV244/504AF | 96.5 | 243.8 | 32.6 | 27600 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 231 |
| FV293/504AF | 105.2 | 292.5 | 39.1 | 27200 | 2200 | 4.4 | 73 | 2XΦ35 | 2XΦ22 | 248 |
| FV244/505AF | 106.2 | 243.8 | 32.6 | 35000 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 262 |
| FV305/505AF | 120.6 | 304.7 | 40.7 | 34500 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 282 |
| FV366/505AF | 131.4 | 365.7 | 48.8 | 34000 | 2750 | 5.5 | 73 | 2XΦ35 | 2XΦ22 | 303 |
| FV146/632AF | 63.7 | 146.3 | 19.5 | 20000 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 178 |
| FV183/632AF | 72.4 | 182.8 | 24.4 | 19800 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 191 |
| FV219/632AF | 78.9 | 219.4 | 29.3 | 19600 | 1874 | 3.5 | 78 | 2XΦ28 | 2XΦ22 | 203 |
| FV219/633AF | 95.6 | 219.4 | 29.3 | 30000 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 246 |
| FV274/633AF | 108.6 | 274.2 | 36.6 | 29700 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 265 |
| FV329/633AF | 118.3 | 329.1 | 43.9 | 29400 | 2811 | 5.3 | 78 | 2XΦ35 | 2XΦ22 | 283 |
| FV293/634AF | 127.5 | 292.5 | 39.1 | 40000 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 315 |
| FV366/634AF | 144.8 | 365.7 | 48.8 | 39600 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 340 |
| FV439/634AF | 157.7 | 438.8 | 58.6 | 39200 | 3748 | 7.0 | 79 | 2XΦ42 | 2XΦ28 | 364 |
| FV366/635AF | 159.3 | 365.7 | 48.8 | 50000 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 383 |
| FV457/635AF | 181.0 | 457.1 | 61.0 | 49500 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 414 |
| FV548/635AF | 197.2 | 548.5 | 73.2 | 49000 | 4685 | 8.8 | 79 | 2XΦ50 | 2XΦ35 | 445 |
| Model | External Dimensions (mm) | Installation Size (mm) |
| L | W | H | A | B | B1 | B2 | B3 | B4 | B5 | Mounting Hole |
| FV*/502** | 1740 | 980 | 945 | 860 | 1630 | 815 | 815 | / | / | / | 6-Φ13 |
| FV*/503** | 2540 | 980 | 945 | 860 | 2430 | 815 | 800 | 815 | / | / | 8-Φ13 |
| FV*/504** | 3340 | 980 | 945 | 860 | 3230 | 815 | 800 | 800 | 815 | / | 10-Φ13 |
| FV*/505** | 4140 | 980 | 945 | 860 | 4030 | 815 | 800 | 800 | 800 | 815 | 12-Φ13 |
| FV*/632** | 1740 | 1250 | 1330 | 1160 | 1630 | 815 | 815 | / | / | / | 6-Φ13 |
| FV*/633** | 2540 | 1250 | 1330 | 1160 | 2430 | 815 | 800 | 815 | / | / | 8-Φ13 |
| FV*/634** | 3340 | 1250 | 1330 | 1160 | 3230 | 815 | 800 | 800 | 815 | / | 10-Φ13 |
| FV*/635** | 4140 | 1250 | 1330 | 1160 | 4030 | 815 | 800 | 800 | 800 | 815 | 12-Φ13 |
