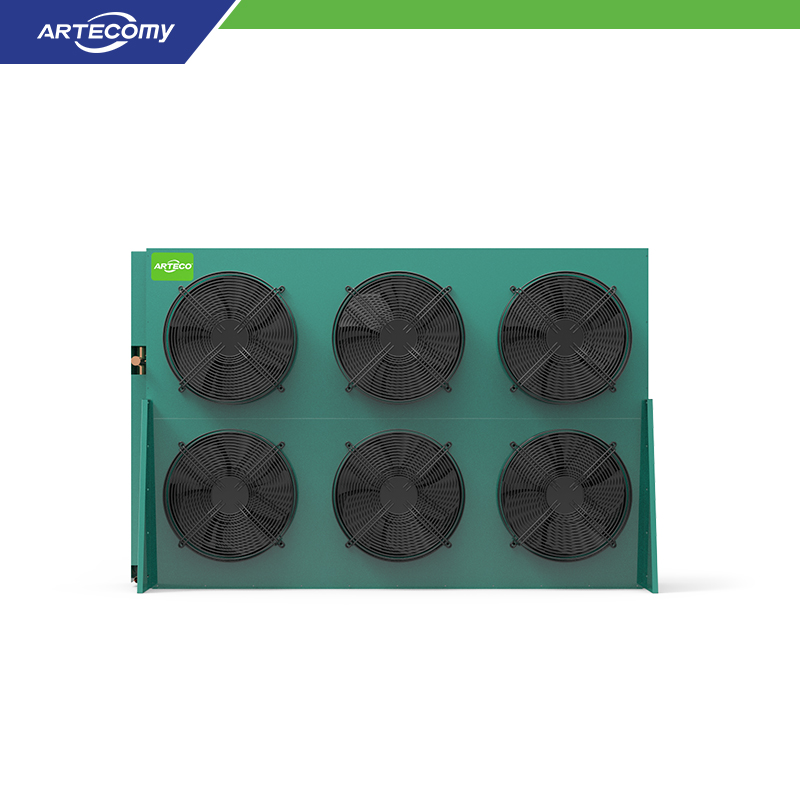

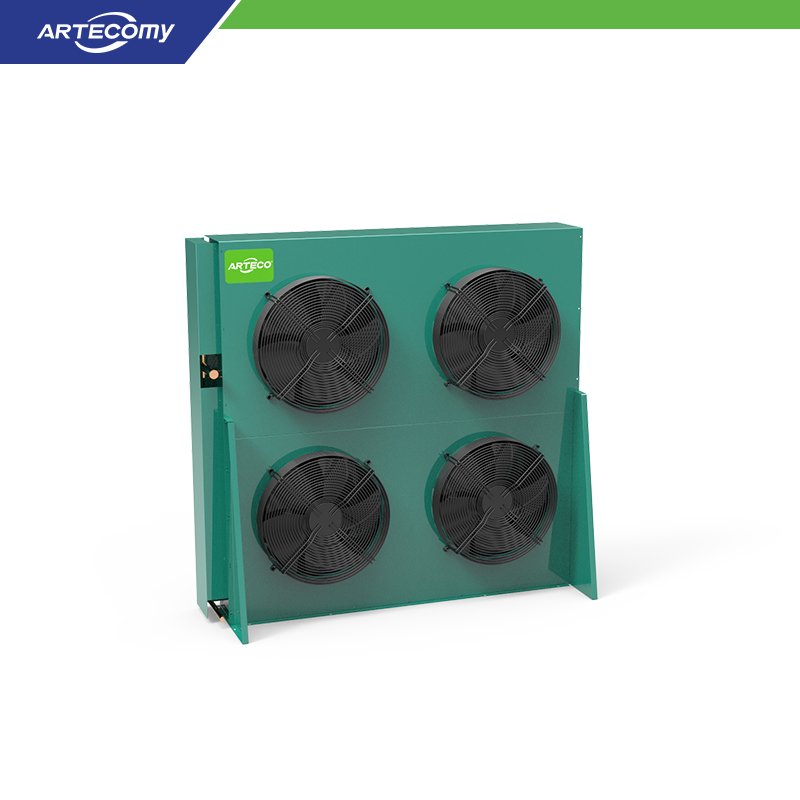

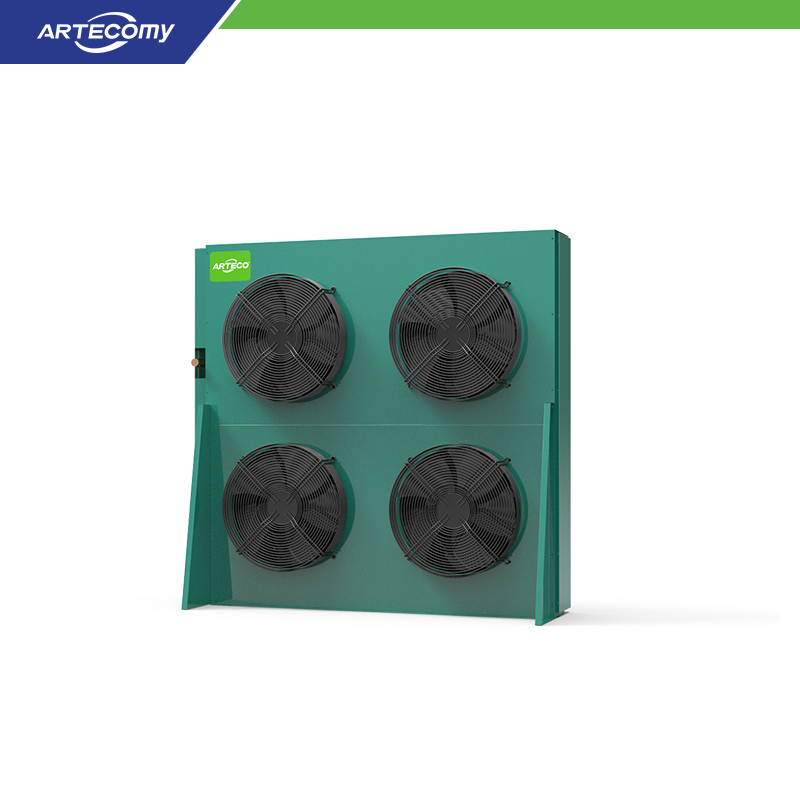

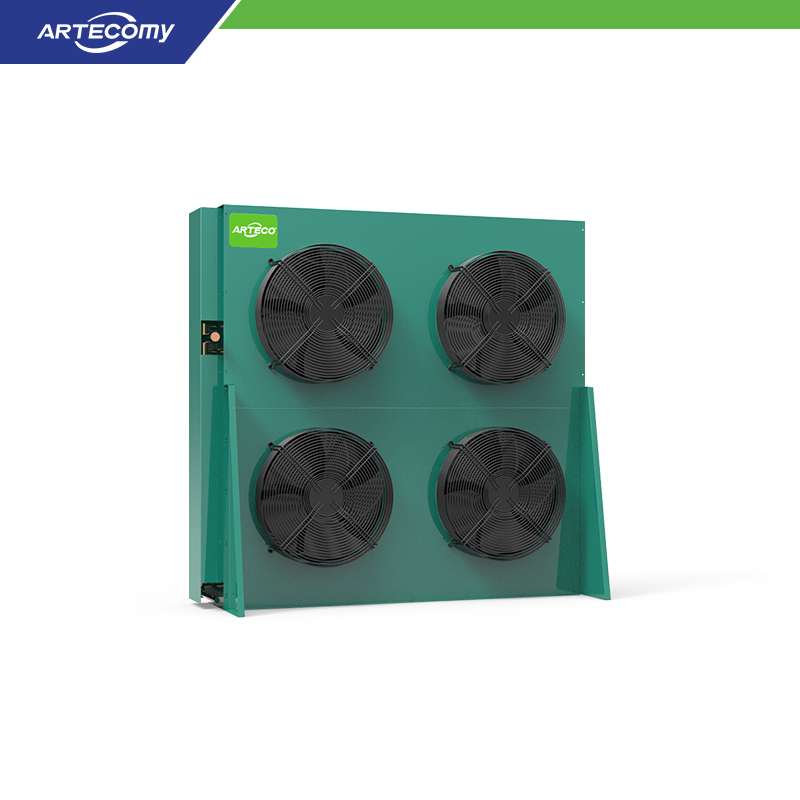

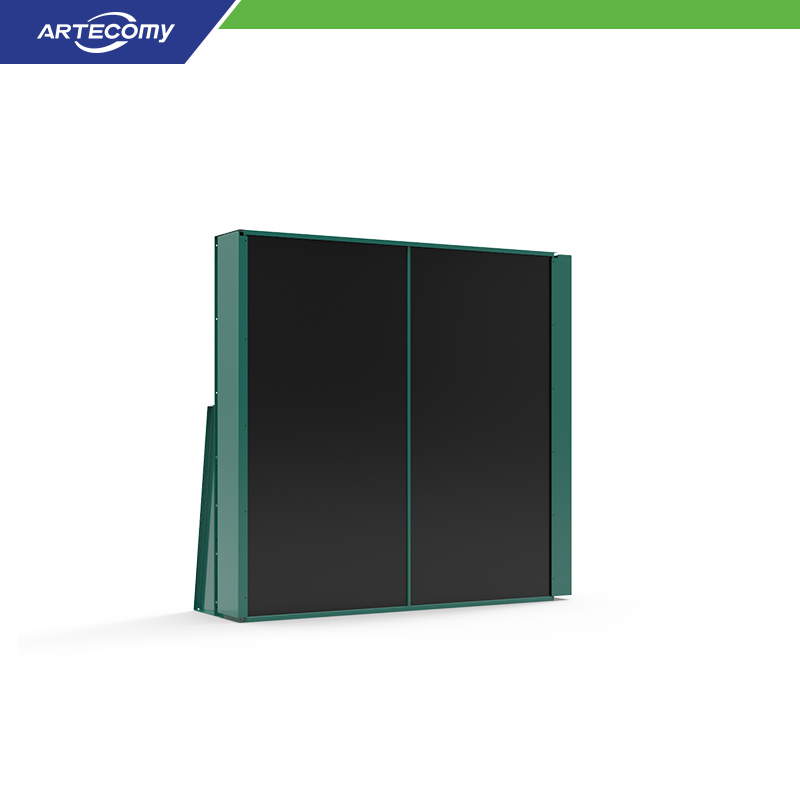

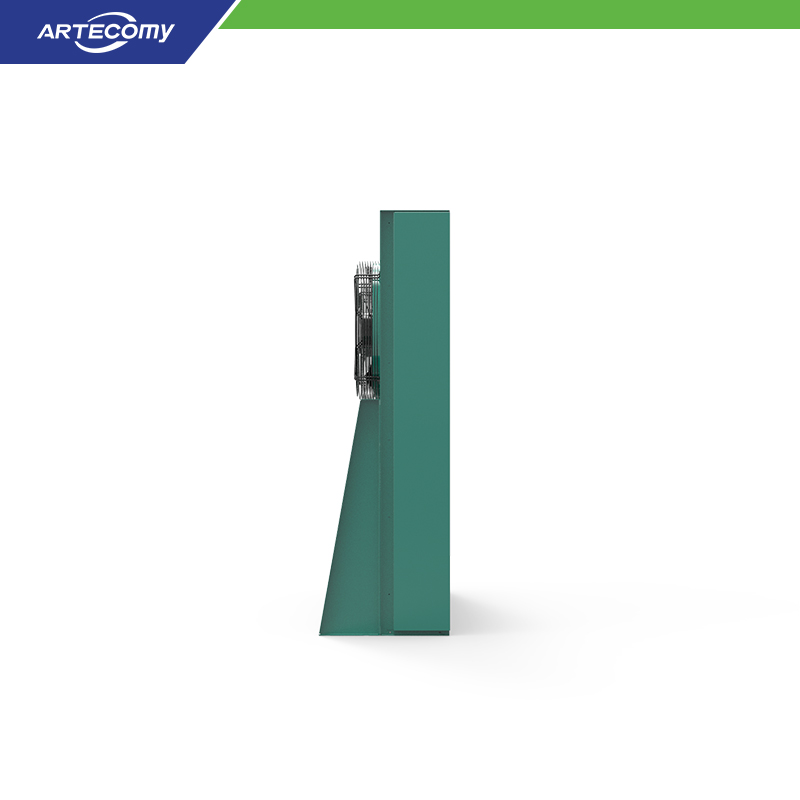

The XC series condenser adopts a vertical side mounted structure, with air inlet at the back and air outlet at the front.
Adopting a vertical side mounted structure, the condenser can be stacked for installation, saving installation space and having a modern appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 2.1mm.
3. The fan specifications adopt external rotor fans with diameters of 400, 450, 500, and 550; Product test pressure: 30bar.
4. Can meet the needs of refrigerants such as R404A, R507A, R448A,R449A, R134A, R22, etc.
Product Parameter
|
Model
|
Heat Exchange (KW)
|
Area (m²)
|
Tube Volume (dm³)
|
Fan
|
Noise dB(A)
|
Take Over Specifications
|
Weight (kg)
|
|
ΔT=15K
|
Air Volume (m³/h)
|
Power (W)
|
Electric Current (A)
|
Intake
|
Transudate
|
|
XC19/401X
|
8.9
|
19.2
|
2.6
|
3250
|
216
|
0.46
|
69
|
Φ16
|
Φ12.7
|
16
|
|
XC24/401X
|
10.1
|
24.0
|
3.2
|
3100
|
216
|
0.46
|
69
|
Φ16
|
Φ12.7
|
18
|
|
XC31/402X
|
15.7
|
31.2
|
4.1
|
6800
|
432
|
0.92
|
69
|
Φ22
|
Φ16
|
27
|
|
XC42/402X
|
18.8
|
41.6
|
5.5
|
6500
|
432
|
0.92
|
69
|
Φ22
|
Φ16
|
31
|
|
XC52/402X
|
20.9
|
52.0
|
6.9
|
6200
|
432
|
0.92
|
69
|
Φ22
|
Φ16
|
34
|
|
XC64/452X
|
27.1
|
64.0
|
8.5
|
8500
|
580
|
1.2
|
69
|
Φ22
|
Φ16
|
46
|
|
XC80/452X
|
30.0
|
80.0
|
10.6
|
8200
|
580
|
1.2
|
69
|
Φ22
|
Φ16
|
51
|
|
XC77/404X
|
36.3
|
76.8
|
10.2
|
13600
|
864
|
1.8
|
69
|
Φ28
|
Φ22
|
70
|
|
XC102/404X
|
42.7
|
102.4
|
13.6
|
13000
|
864
|
1.8
|
69
|
Φ28
|
Φ22
|
79
|
|
XC128/454X
|
53.4
|
128.0
|
17.0
|
16400
|
1160
|
2.4
|
69
|
Φ28
|
Φ22
|
89
|
|
XC154/454X
|
57.5
|
153.6
|
20.4
|
15600
|
1160
|
2.4
|
69
|
Φ28
|
Φ22
|
98
|
|
XC174/504X
|
79.2
|
173.7
|
23.1
|
27920
|
2192
|
4.4
|
72
|
Φ35
|
Φ28
|
121
|
|
XC217/504X
|
89.7
|
217.1
|
28.9
|
27200
|
2192
|
4.4
|
72
|
Φ35
|
Φ28
|
137
|
|
XC261/554X
|
104.1
|
260.5
|
34.6
|
30400
|
2680
|
5.1
|
74
|
Φ35
|
Φ28
|
152
|
|
XC254/506X
|
116.8
|
253.7
|
33.7
|
41880
|
3288
|
6.6
|
72
|
Φ42
|
Φ28
|
169
|
|
XC317/506X
|
132.5
|
317.1
|
42.2
|
40800
|
3288
|
6.6
|
72
|
Φ42
|
Φ28
|
192
|
|
XC381/556X
|
154.1
|
380.5
|
50.6
|
45600
|
4020
|
7.6
|
74
|
Φ42
|
Φ28
|
214
|
|
Model
|
External Dimensions (mm)
|
Installation Size (mm)
|
|
L
|
W
|
H
|
A
|
B
|
Mounting Hole
|
|
XC*/401X
|
660
|
270
|
490
|
540
|
160
|
Φ9
|
|
XC*/402X
|
1010
|
270
|
640
|
900
|
160
|
Φ9
|
|
XC*/452X
|
1220
|
270
|
790
|
1100
|
160
|
Φ9
|
|
XC*/404X
|
1220
|
441
|
1240
|
1078
|
160
|
Φ9
|
|
XC*/454X
|
1220
|
441
|
1240
|
1078
|
160
|
Φ9
|
|
XC*/504X
|
1640
|
449
|
1530
|
1400
|
200
|
Φ9
|
|
XC*/554X
|
1640
|
449
|
1530
|
1400
|
200
|
Φ9
|
|
XC*/506X
|
2340
|
449
|
1530
|
2100
|
200
|
Φ9
|
|
XC*/556X
|
2340
|
449
|
1530
|
2100
|
200
|
Φ9
|
