Customizable 1-Fan Low-Temp Unit Cooler for Food Processing Cold Rooms

Customizable 1-Fan Low-Temp Unit Cooler for Food Processing Cold Rooms

Product Series:

XM series

Order(MOQ):

Power Supply:

3P/380V/50Hz (Accept customization)

Operating Temperature:

-20℃～-40℃

Refrigerant:

R404A, R507A, R448A, R449A, R134A, R22

Payment:

EX-WORK, FOB, CIF, DDP

Shipping Port:

Shenzhen, Guangzhou, Qingdao

INQUIRY NOW

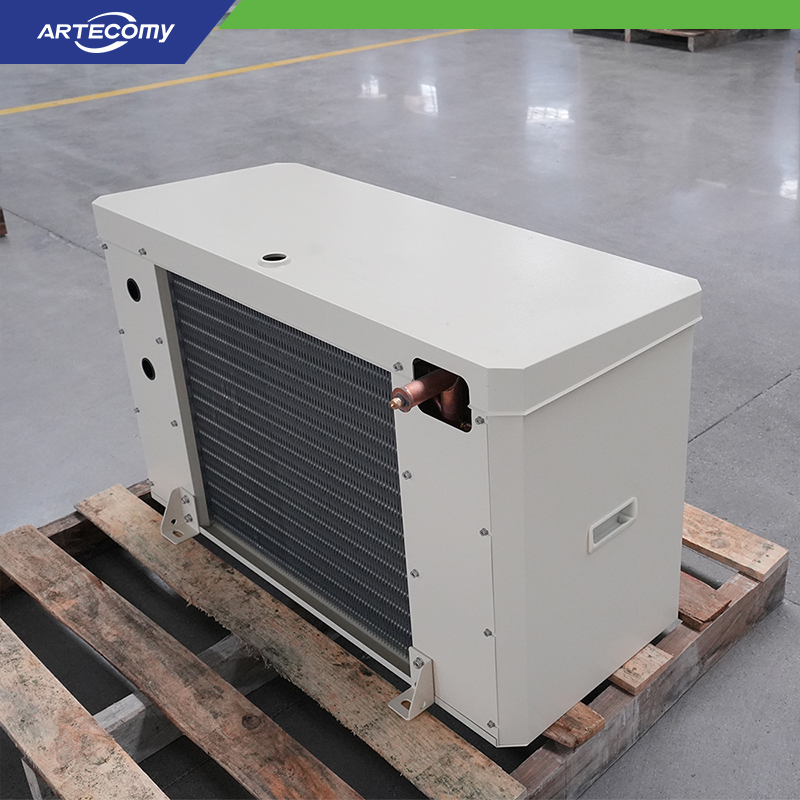

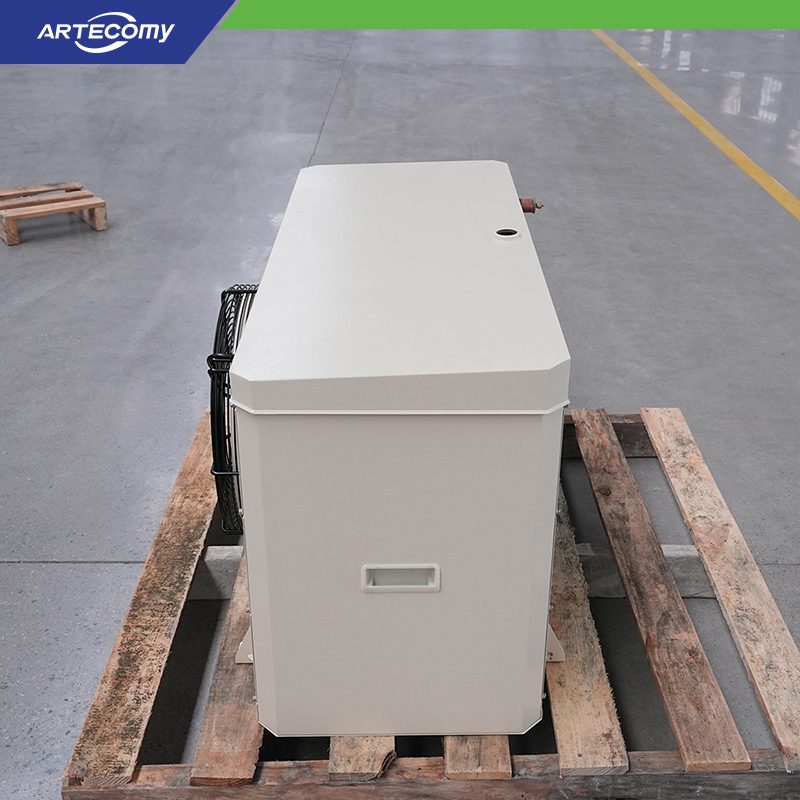

Casing:High-quality galvanized steel with powder coating, excellent corrosion resistance; side panels secured with screws for tight sealing.

Double Water Pan:Angled diamond outer pan for smooth, residue-free drainage; aluminum trough inner pan.

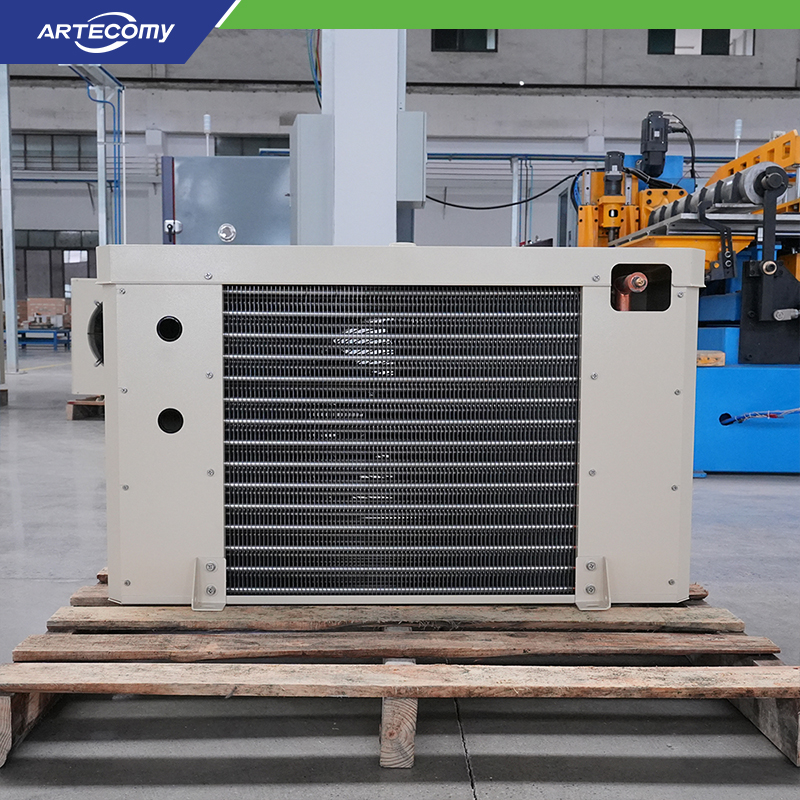

Coils:Ø9.52mm internally grooved copper tubes, 36x31.18 inverted delta arrangement for large heat transfer area and small temperature difference.

Fins:Hydrophilic corrugated aluminum fins with 4.5mm, 6.0mm, and 9.0mm fin spacing to meet various temperature and humidity requirements.

Fan Cowl:Integrated large arc design for good airflow, long throw, and low noise.

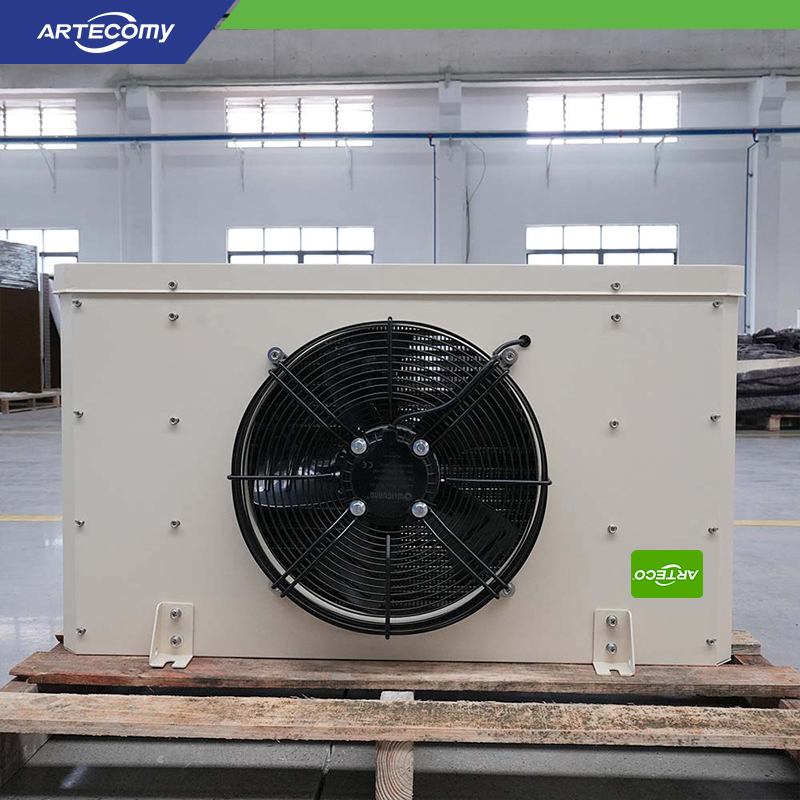

Fans:High-power external rotor fans, operating temperature -20℃ to -40℃; available in Ø350, Ø400, and Ø450 sizes.

Defrost:Standard electric defrost with stainless steel heating tubes evenly distributed in coil fins and inner water pan; independent heating tube junction box. Optional accessories like expansion valves and fan ring heating belts are available upon request.

Refrigerants:Compatible with R404A, R507A, R448A, R449A, R134A, R22, etc.

Product Parameter

Model	Refrigeralion Capacity/R404A(KW)		Area (m²)	Tube Volume (dm³)	Air Volume (m³/h)	Range (m)	Interface Specfications (mm)			Weight (kg)
Model	Tc=0℃△T=8K	Tc=-18℃△T=7K	Area (m²)	Tube Volume (dm³)	Air Volume (m³/h)	Range (m)	Feed Liquor	Return Air	Drainage	Weight (kg)
350 Fan Series
XM1.93/351MB	1.93	1.51	7.4	1.9	2160	15	Φ12.7	Φ19	G1"	31
XM2.32/351MB	2.32	1.81	9.9	2.6	2000	15	Φ12.7	Φ19	G1"	33
XM3.87/352MB	3.87	3.02	14.9	3.8	4320	16	Φ12.7	Φ28	G1"	44
XM4.71/352MB	4.71	3.67	19.8	5.2	4000	16	Φ12.7	Φ28	G1"	48
XM5.80/353MB	5.80	4.52	22.3	5.7	6480	17	Φ16	Φ28	G1"	58
XM7.09/353MB	7.09	5.53	29.8	7.8	6000	17	Φ16	Φ28	G1"	64
XM7.75/354MB	7.75	6.05	29.8	7.6	8640	18	Φ16	Φ35	G1"	72
XM9.48/354MB	9.48	7.39	39.7	10.4	8000	18	Φ16	Φ35	G1"	79
400 Fan Series
XM3.87/401MA	3.87	3.02	15.9	2.8	3600	17	Φ12.7	Φ28	G1"	47
XM4.34/401MA	4.34	3.39	19.9	3.3	3390	17	Φ12.7	Φ28	G1"	50
XM5.09/401MA	5.09	3.97	23.9	4.1	3180	17	Φ12.7	Φ28	G1"	52
XM7.83/402MA	7.83	6.11	31.8	5.3	7200	24	Φ16	Φ28	G1"	84
XM9.05/402MA	9.05	7.06	39.8	6.5	6780	23	Φ16	Φ35	G1"	89
XM10.25/402MA	10.25	8.00	47.7	7.9	6360	22	Φ16	Φ35	G1"	92
XM11.79/403MA	11.79	9.20	47.7	7.9	10800	28	Φ22	Φ35	G1.5"	110
XM13.68/403MA	13.68	10.67	59.6	9.7	10170	27	Φ22	Φ42	G1.5"	117
XM15.36/403MA	15.36	11.98	71.6	11.5	9540	26	Φ22	Φ42	G1.5"	125
XM15.60/404MA	15.60	12.17	63.6	10.6	14400	28	Φ22	Φ42	G1.5"	130
XM18.16/404MA	18.16	14.16	79.5	12.9	13560	27	Φ28	Φ42	G1.5"	140
XM20.42/404MA	20.42	15.93	95.4	15.1	12720	26	Φ28	Φ42	G1.5"	150
450 Fan Series
XM6.35/451MA	6.35	4.95	25.9	4.4	5950	19	Φ12.7	Φ28	G1"	61
XM7.30/451MA	7.30	5.69	32.3	5.7	5650	19	Φ16	Φ35	G1"	65
XM8.41/451MA	8.41	6.56	38.8	7.0	5390	18	Φ16	Φ35	G1"	64
XM12.78/452MA	12.78	9.97	51.8	9.0	11900	27	Φ22	Φ42	G1.5"	111
XM14.99/452MA	14.99	11.69	64.7	11.0	10780	27	Φ22	Φ42	G1.5"	119
XM16.90/452MA	16.90	13.18	77.6	13.7	10780	26	Φ22	Φ54	G1.5"	128
XM19.21/453MA	19.21	14.98	77.6	13.7	17850	33	Φ28	Φ54	G2"	150
XM22.28/453MA	22.28	17.38	97.0	16.3	16950	32	Φ28	Φ54	G2"	168
XM25.40/453MA	25.40	19.81	116.4	19.6	16170	32	Φ28	Φ54	G2"	181
XM25.83/454MA	25.83	20.15	103.5	16.8	23800	37	Φ35	Φ54	G2"	192
XM30.12/454MA	30.12	23.49	129.4	21.2	22600	37	Φ35	Φ54	G2"	209
XM34.20/454MA	34.20	26.68	155.3	25.6	21560	36	Φ35	Φ54	G2"	225
Note: Tc in the table represents the storage temerature. and △ T represents the difference between the storage temperature and the evaporation temperature.

Model	Refrigeralion Capacity/R404A(KW)		Area (m²)	Tube Volume (dm³)	Air Volume (m³/h)	Range (m)	Interface Specifications (mm)			Weight (kg)
Model	Tc=0℃△T=8K	Tc=-18℃△T=7K	Area (m²)	Tube Volume (dm³)	Air Volume (m³/h)	Range (m)	Feed Liquor	Return Air	Drainage	Weight (kg)
350 Fan Series
XM1.24/351LA	1.59	1.24	5.5	1.2	2300	15	Φ12.7	Φ19	G1"	30
XM1.55/351LA	1.99	1.55	7.3	1.6	2160	15	Φ12.7	Φ19	G1"	31
XM2.48/352LA	3.18	2.48	10.9	2.4	4320	16	Φ12.7	Φ28	G1"	42
XM3.19/352LA	4.09	3.19	14.5	3.2	4000	16	Φ12.7	Φ28	G1"	45
XM3.73/373LA	4.78	3.73	16.4	3.6	6480	17	Φ16	Φ28	G1"	54
XM4.81/353LA	6.17	4.81	21.8	4.8	6000	17	Φ16	Φ28	G1"	59
XM4.97/354LA	6.37	4.97	21.8	4.8	8640	18	Φ16	Φ35	G1"	67
XM6.43/354LA	8.24	6.43	29.1	6.4	8000	18	Φ16	Φ35	G1"	73
400 Fan Series
XM2.41/401LA	3.09	2.41	11.7	2.8	3855	17	Φ12.7	Φ28	G1"	45
XM2.79/401LA	3.58	2.79	14.6	3.3	3630	17	Φ12.7	Φ28	G1"	47
XM3.45/401LA	4.42	3.45	17.5	4.1	3420	17	Φ12.7	Φ28	G1"	60
XM5.33/402LA	6.83	5.33	23.3	5.3	7710	24	Φ16	Φ28	G1"	80
XM6.10/402LA	7.82	6.10	29.2	6.5	7260	23	Φ16	Φ35	G1"	84
XM7.00/402LA	8.97	7.00	35.0	7.9	6840	22	Φ16	Φ35	G1"	88
XM8.13/403LA	10.42	8.13	35.0	7.9	11565	28	Φ22	Φ35	G1.5"	103
XM9.37/403LA	12.01	9.37	43.7	9.7	10890	27	Φ22	Φ42	G1.5"	109
XM10.49/403LA	13.45	10.49	52.5	11.5	10260	26	Φ22	Φ42	G1.5"	115
XM10.64/404LA	13.64	10.64	46.6	10.6	15420	28	Φ22	Φ42	G1.5"	122
XM12.25/404LA	15.71	12.25	58.3	12.9	14520	27	Φ28	Φ42	G1.5"	130
XM13.65/404LA	17.50	13.65	70.0	15.1	13680	26	Φ28	Φ42	G1.5"	138
450 Fan Series
XM4.31/451LA	5.53	4.31	19.0	4.4	6290	19	Φ12.7	Φ28	G1"	58
XM4.78/451LA	6.13	4.78	23.7	5.7	5980	19	Φ16	Φ35	G1"	62
XM5.60/451LA	7.18	5.60	28.5	7.0	5700	18	Φ16	Φ35	G1"	65
XM8.68/452LA	11.13	8.68	37.9	9.0	12580	27	Φ22	Φ42	G1.5"	104
XM10.09/452LA	12.94	10.09	47.4	11.0	11400	27	Φ22	Φ42	G1.5"	111
XM11.27/452LA	14.45	11.27	56.9	13.7	11400	26	Φ22	Φ54	G1.5"	116
XM13.06/453LA	16.74	13.06	56.9	13.7	18870	33	Φ28	Φ54	G2"	146
XM15.16/453LA	19.44	15.16	71.2	16.3	17940	32	Φ28	Φ54	G2"	156
XM16.94/453LA	21.72	16.94	85.4	19.6	17100	32	Φ28	Φ54	G2"	166
XM17.30/454LA	22.18	17.30	75.9	16.8	25160	37	Φ35	Φ54	G2"	179
XM20.25/454LA	25.96	20.25	94.9	21.2	23920	37	Φ35	Φ54	G2"	192
XM23.05/454LA	29.55	23.05	113.8	25.6	22800	36	Φ35	Φ54	G2"	206
Note: Tc in the table represents the storage temerature. and △ T represents the difference between the storage temperature and the evaporation temperature.

Model	Fan Motor				Electric Defrosting
Model	Voltage (V)	Power (W)	Electric Current (A)	Rotational Speed (r/min)	Coil: KW	Basin: KW	Total Power: KW
XM/351*	220-1	165	0.75	1420	2×0.485	1×0.485	1.5
XM/351*	220-1	165	0.75	1420	3×0.485	1×0.485	1.9
XM/352*	220-1	330	1.50	1420	2×0.945	1×0.945	2.8
XM/352*	220-1	330	1.50	1420	3×0.945	1×0.945	3.8
XM/353*	220-1	495	2.25	1420	2×1.405	1×1.405	4.2
XM/353*	220-1	495	2.25	1420	3×1.405	1×1.405	5.6
XM/354*	220-1	660	3.00	1420	2×1.865	1×1.865	5.6
XM/354*	220-1	660	3.00	1420	3×1.865	1×1.865	7.5
XM/401*	380-3	300	0.90	1380	4×0.62	1×0.62	3.1
XM/401*	380-3	300	0.90	1380	5×0.62	1×0.62	3.7
XM/401*	380-3	300	0.90	1380	6×0.62	1×0.62	4.3
XM/402*	380-3	600	1.80	1380	4×1.09	1×1.09	5.5
XM/402*	380-3	600	1.80	1380	5×1.09	1×1.09	6.5
XM/402*	380-3	600	1.80	1380	6×1.09	1×1.09	7.6
XM/403*	380-3	900	2.70	1380	4×1.56	1×1.56	7.8
XM/403*	380-3	900	2.70	1380	5×1.56	1×1.56	9.4
XM/403*	380-3	900	2.70	1380	6×1.56	1×1.56	10.9
XM/404*	380-3	1200	3.60	1380	4×2.15	1×2.15	10.8
XM/404*	380-3	1200	3.60	1380	5×2.15	1×2.15	12.9
XM/404*	380-3	1200	3.60	1380	6×2.15	1×2.15	15.1
XM/451*	380-3	480	1.00	1380	5×0.76	1×0.76	4.6
XM/451*	380-3	480	1.00	1380	6×0.76	1×0.76	5.3
XM/451*	380-3	480	1.00	1380	7×0.76	1×0.76	6.1
XM/452*	380-3	960	2.00	1380	5×1.41	1×1.41	8.5
XM/452*	380-3	960	2.00	1380	6×1.41	1×1.41	9.9
XM/452*	380-3	960	2.00	1380	7×1.41	1×1.41	11.3
XM/453*	380-3	1440	3.00	1380	5×1.95	1×1.95	11.7
XM/453*	380-3	1440	3.00	1380	6×1.95	1×1.95	13.7
XM/453*	380-3	1440	3.00	1380	7×1.95	1×1.95	15.6
XM/454*	380-3	1920	4.00	1380	5×2.59	1×2.59	15.5
XM/454*	380-3	1920	4.00	1380	6×2.59	1×2.59	18.1
XM/454*	380-3	1920	4.00	1380	7×2.59	1×2.59	20.7

Model	External Dimensions (mm)			Installation Size (mm)
Model	L	W	H	A	B	B1	C	Mounting Hole
XM/351*	810	485	584	416	500	/	400	4-Φ13
XM/352*	1270	485	584	416	500	/	400	4-Φ13
XM/353*	1730	485	584	416	500	/	400	4-Φ13
XM/354*	2190	485	584	416	500	960	400	6-Φ13
XM/401*	990	557	692	479	630	/	450	4-Φ13
XM/402*	1580	557	692	479	1220	/	450	4-Φ13
XM/403*	2170	557	708	479	1810	/	450	4-Φ13
XM/404*	2760	557	708	479	2400	1187	450	6-Φ13
XM/451*	1200	592	800	514	840	/	500	4-Φ13
XM/452*	2000	592	816	514	1640	/	500	4-Φ13
XM/453*	2800	592	830	514	2440	/	500	4-Φ13
XM/454*	3600	592	830	514	3240	1634	500	6-Φ13
