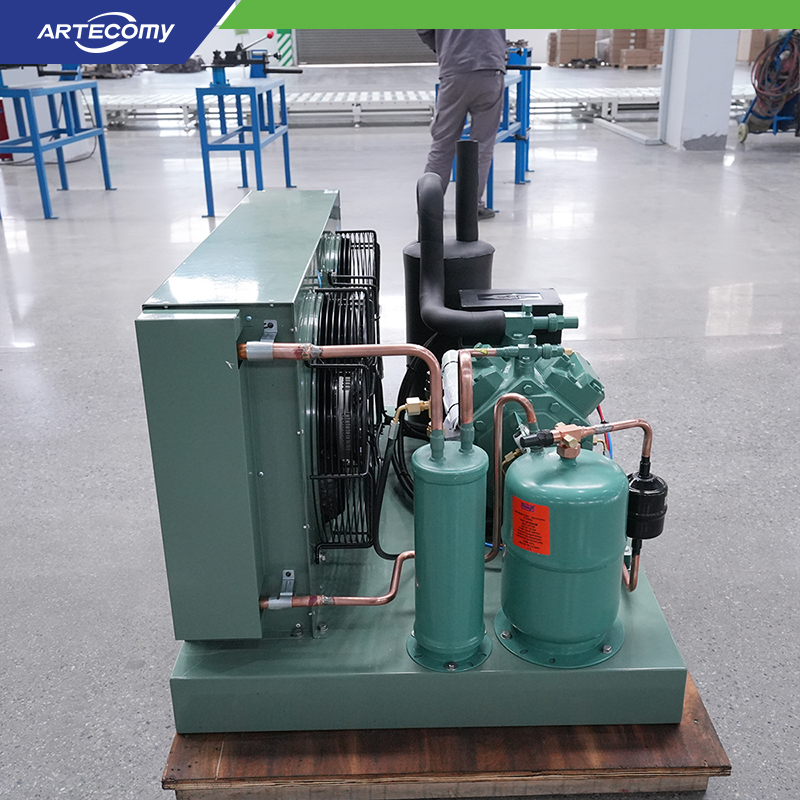

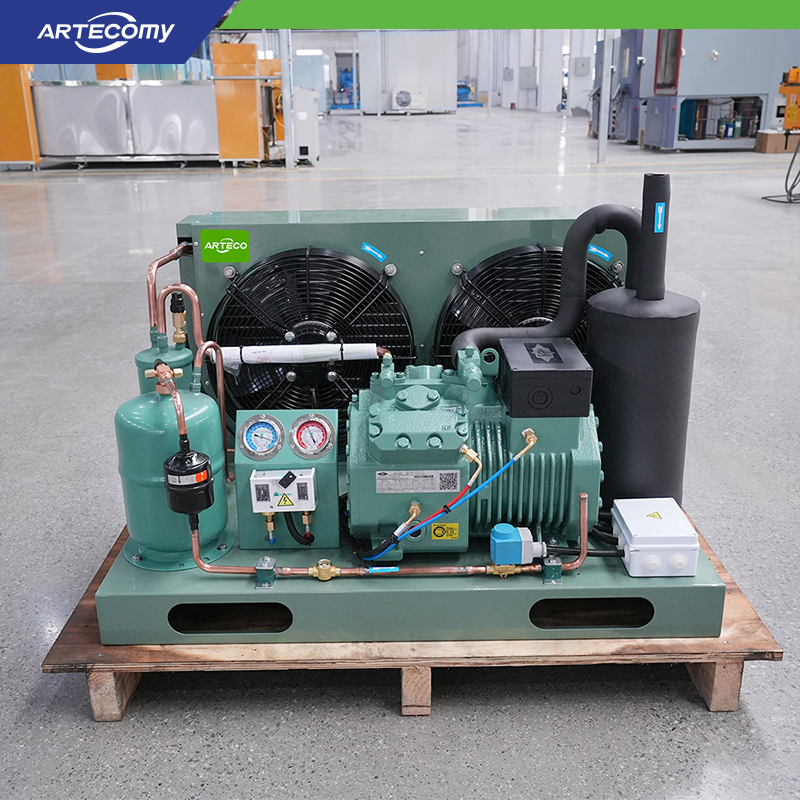

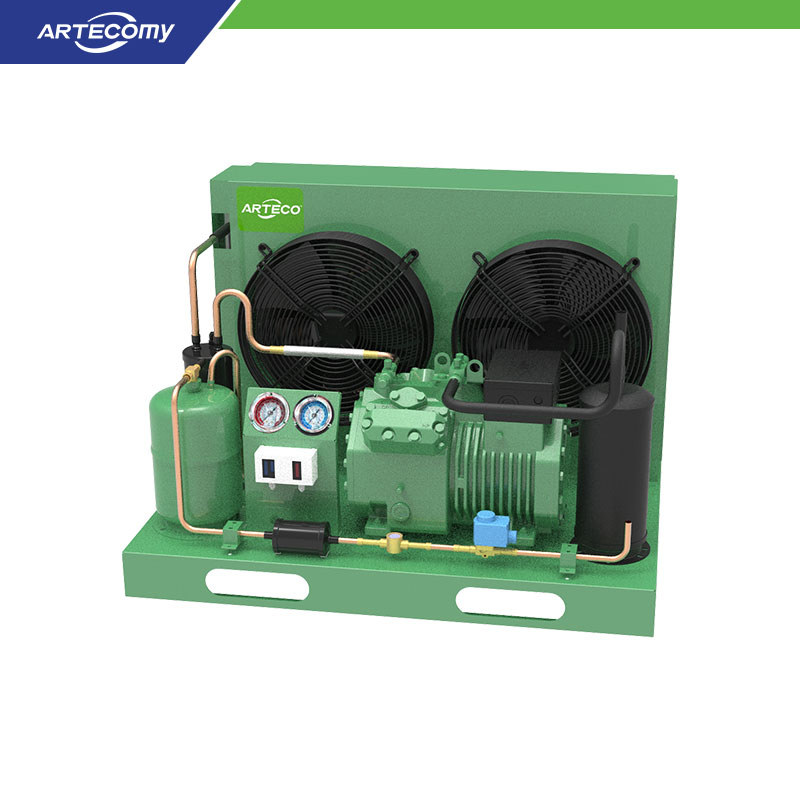

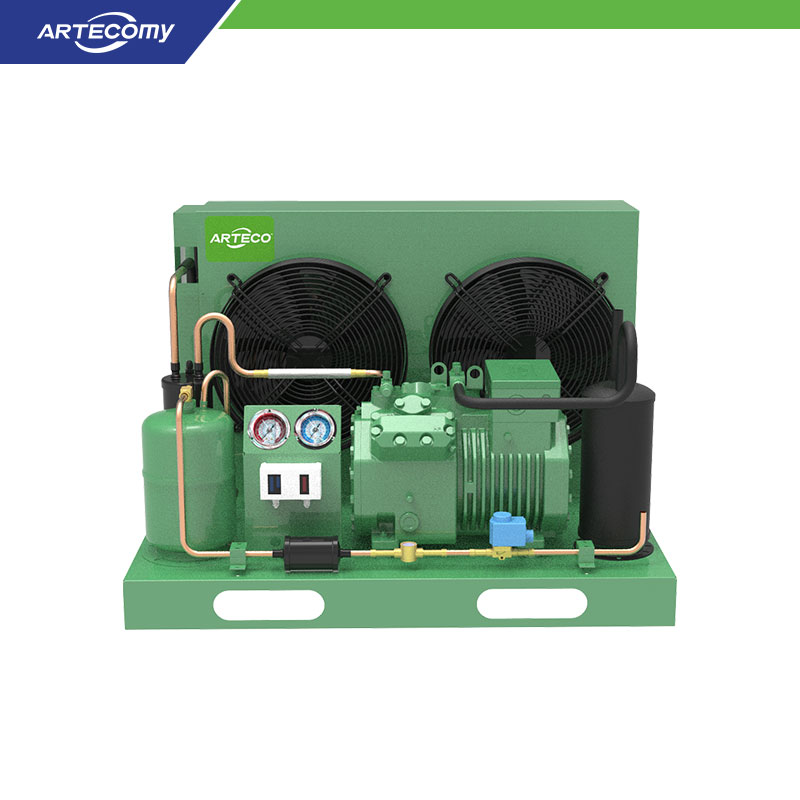

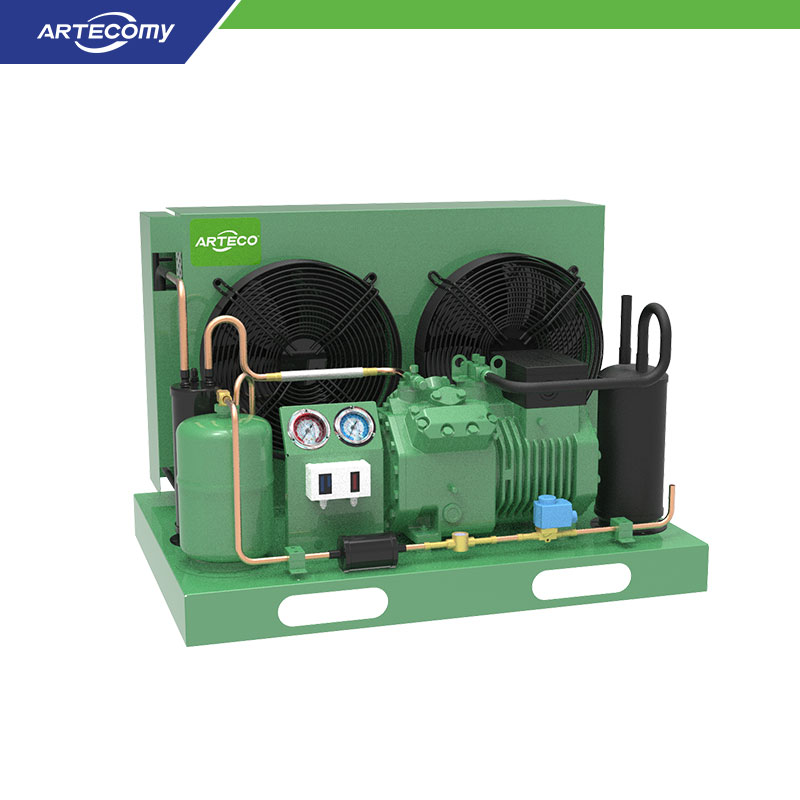

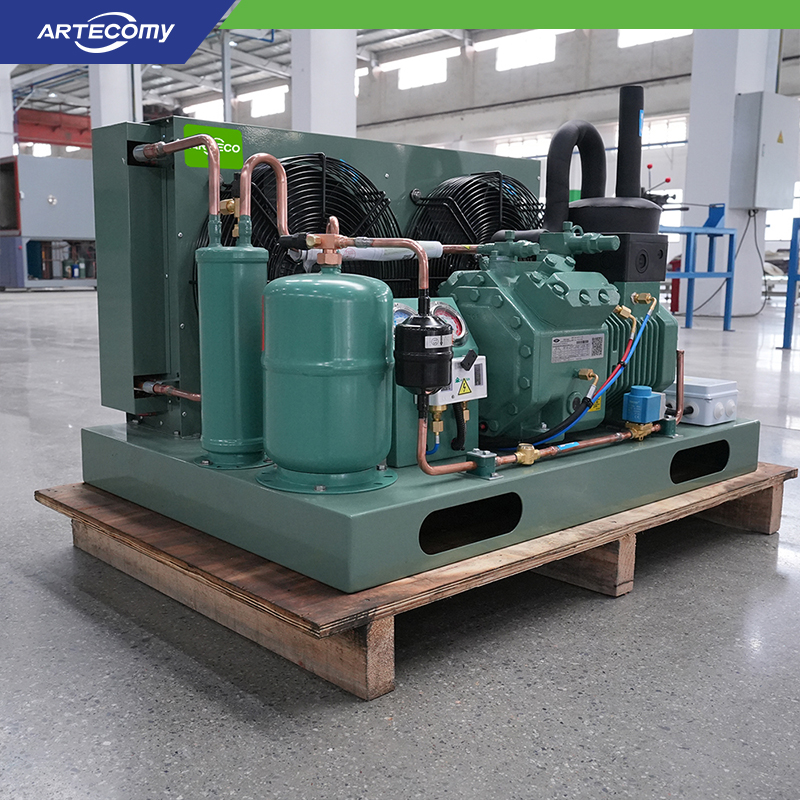

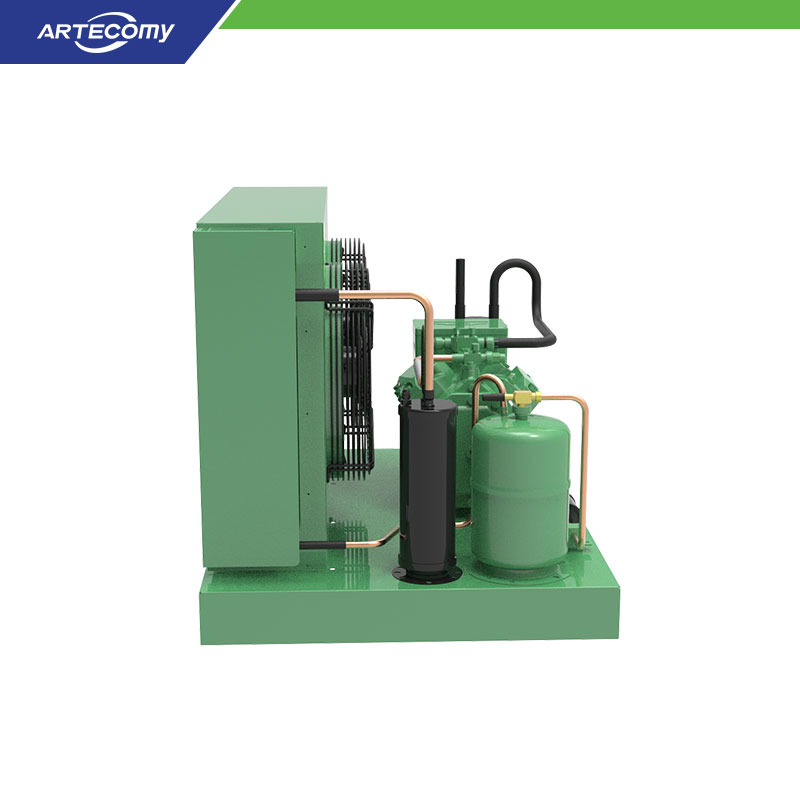

CP Series Open-Type Air-Cooled Condensing Units.
Designed to excel in cold storage environments, the CP Series delivers consistent and reliable performance within a temperature range of 5°C to 15°C.
Key Features:

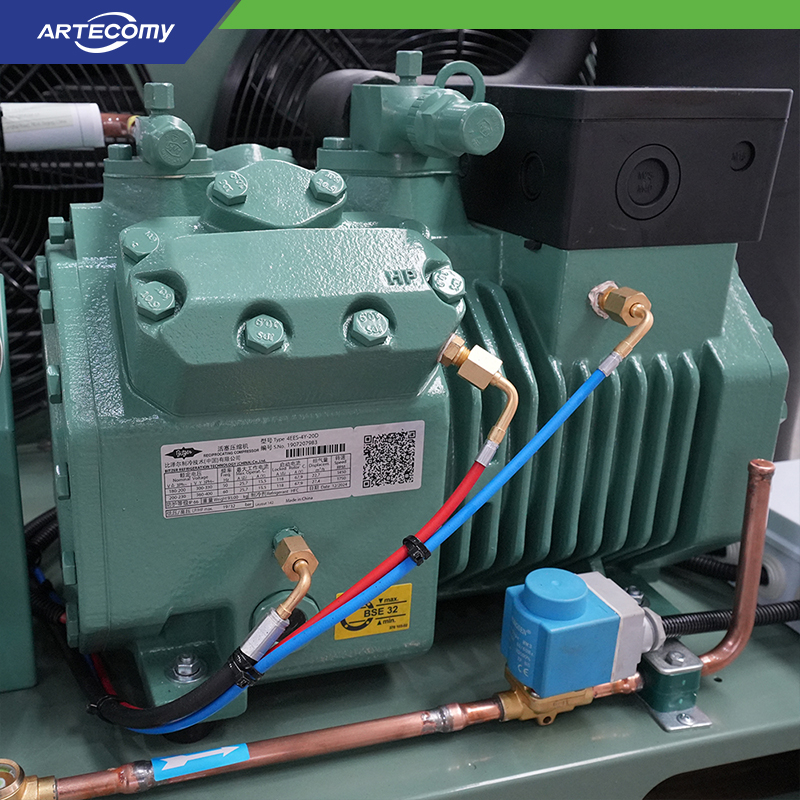

Durable Compressor: Equipped with top-tier Bitzer semi-hermetic reciprocating refrigeration compressors, ensuring superior reliability and longevity.
Streamlined Design: Integrates the air-cooled condenser, compressor, and vital accessories into a compact framework for seamless operation and easy maintenance.
High-Efficiency Cooling: Features an external rotor fan that provides quiet and efficient airflow for optimal cooling performance.
Refrigerant Flexibility: Supports a wide variety of refrigerants, including R22, R404A, R507A, R448A, and R449A, catering to diverse operational needs.
Product Parameter
| Model | CPBBF02H | CPBBF03H | CPBBF04H | CPBBF05H | CPBBF06H | CPBBF07H | CPBBF09H | CPBBF10H |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | 5℃~15℃ |
| Compressor | Model | 2GES-2Y | 2DES-3Y | 2CES-4Y | 4FES-5Y | 4EES-6Y | 4DES-7Y | 4CES-9Y | 4VES-10Y |
| Max.I(A) | 5.0 | 8.6 | 10.0 | 10.8 | 13.6 | 16.5 | 20.2 | 19.9 |
| Capacity/Power KW) | Evap. | R22 | 10℃ | 7.4/2.1 | 13.3/3.4 | 16.8/4.3 | 18.2/4.5 | 23.1/5.8 | 26.7/6.6 | 33.6/8.5 | 37.2/8.7 |
| 5℃ | 6.3/2.0 | 11.3/3.2 | 14.3/4.1 | 15.5/4.3 | 19.6/5.5 | 22.7/6.3 | 28.8/8.0 | 31.5/8.2 |
| 0℃ | 5.3/1.9 | 9.5/3.1 | 12.0/3.9 | 12.9/4.1 | 16.4/5.2 | 19.0/6.0 | 24.0/7.6 | 26.1/7.7 |
| R404A R507A | 7.5℃ | 6.6/2.3 | 12.2/3.8 | 15.4/4.8 | 17.0/5.1 | 21.4/6.5 | 25.1/7.5 | 32.5/9.5 | 33.4/9.7 |
| 5℃ | 6.2/2.2 | 11.5/3.7 | 14.5/4.6 | 16.0/4.9 | 20.1/6.3 | 23.6/7.2 | 29.7/9.1 | 31.2/9.3 |
| 0℃ | 5.2/2.1 | 9.6/3.4 | 12.2/4.3 | 13.3/4.6 | 16.7/5.9 | 19.6/6.8 | 24.5/8.7 | 25.8/8.6 |
| Fan | Voltage (V) | 3P/380V/50Hz |
| Current(A) | 0.5 | 0.9 | 0.9 | 0.9 | 1.2 | 1.2 | 1.8 | 1.8 |
| Power(W) | 216×1 | 216×2 | 216×2 | 216×2 | 290×2 | 290×2 | 216×4 | 216×4 |
| Rev.(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Suction Line(mm) | φ16 | φ22 | φ22 | φ22 | φ28 | φ28 | φ28 | φ28 |
| Liquid Line(mm) | φ9.52 | φ12.7 | φ12.7 | φ12.7 | φ12.7 | φ16 | φ16 | φ16 |
| Weight | kg | 106 | 155 | 164 | 183 | 206 | 216 | 249 | 296 |
| Size | L (mm) | 850 | 1050 | 1050 | 1050 | 1260 | 1260 | 1260 | 1260 |
| W (mm) | 750 | 780 | 780 | 780 | 850 | 850 | 950 | 950 |
| H (mm) | 590 | 740 | 740 | 740 | 890 | 890 | 1340 | 1340 |
|
