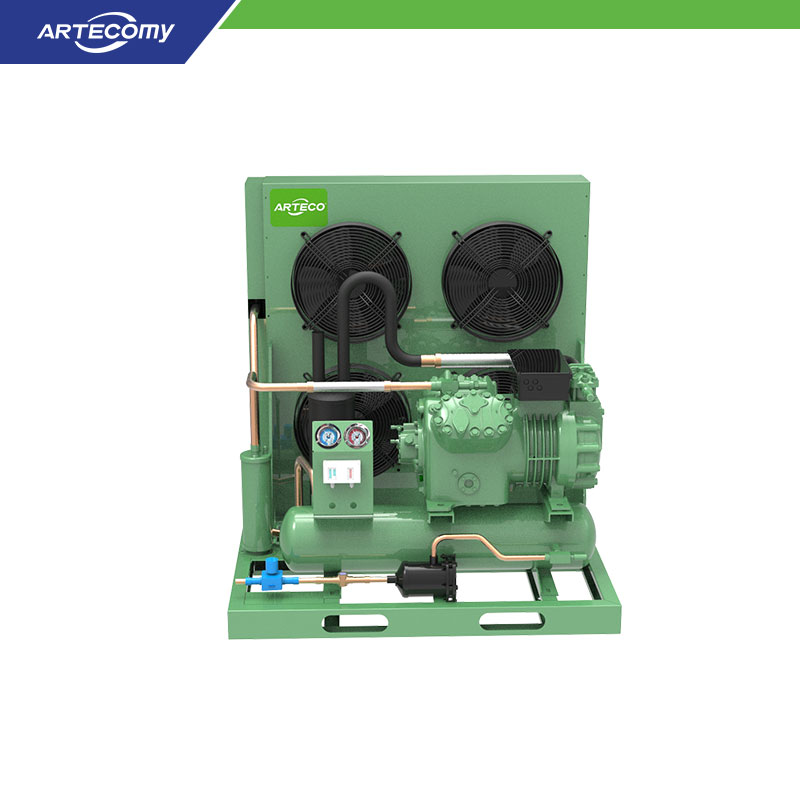

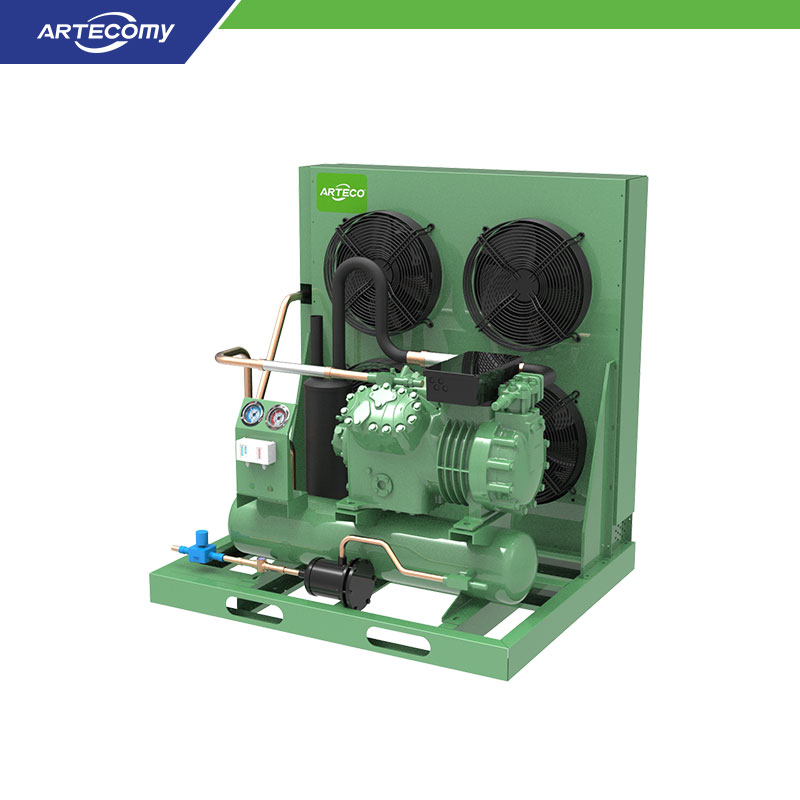

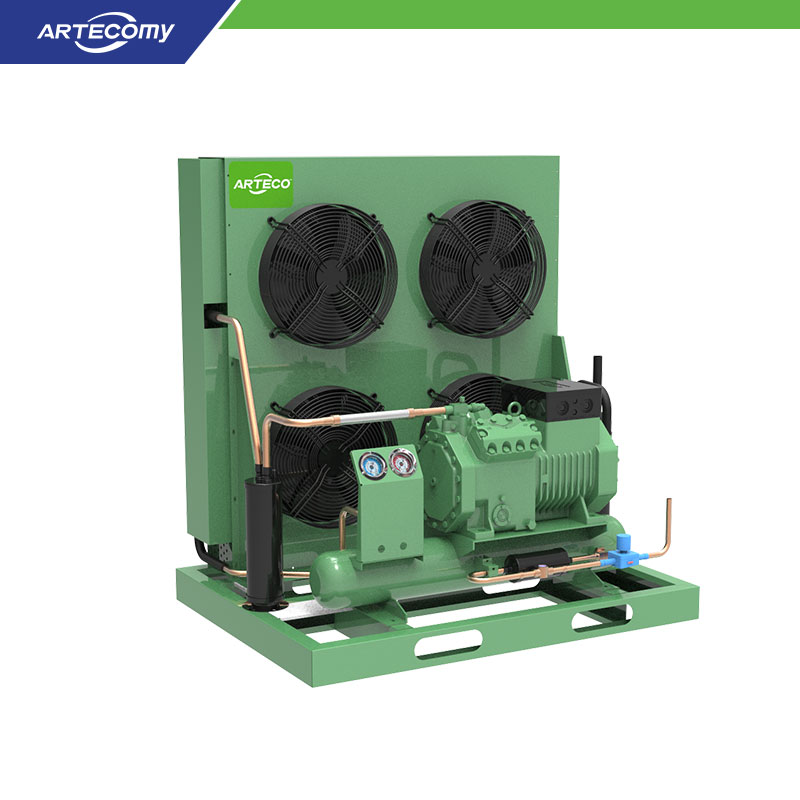

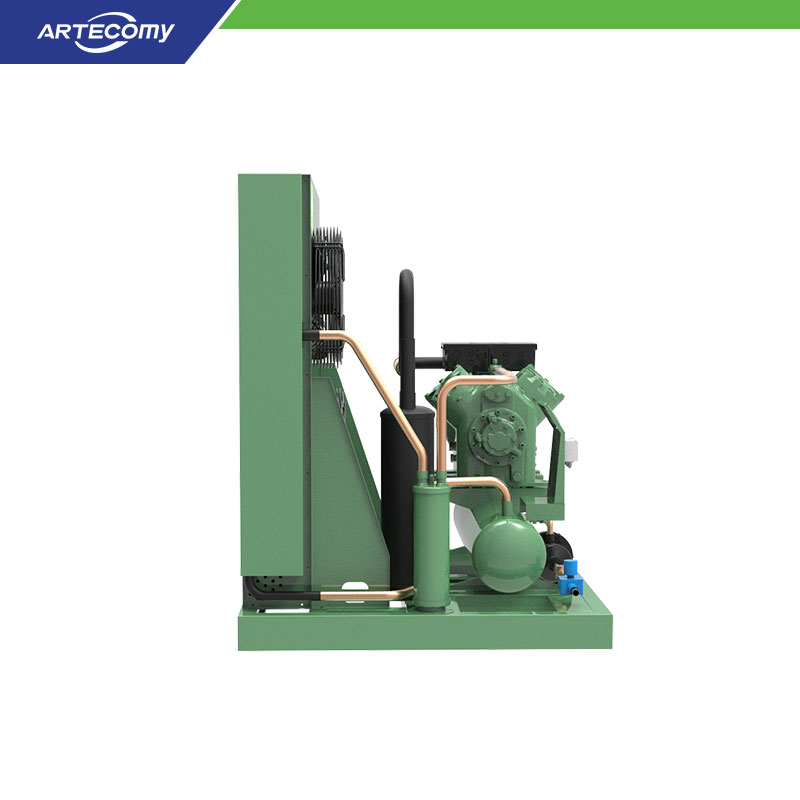

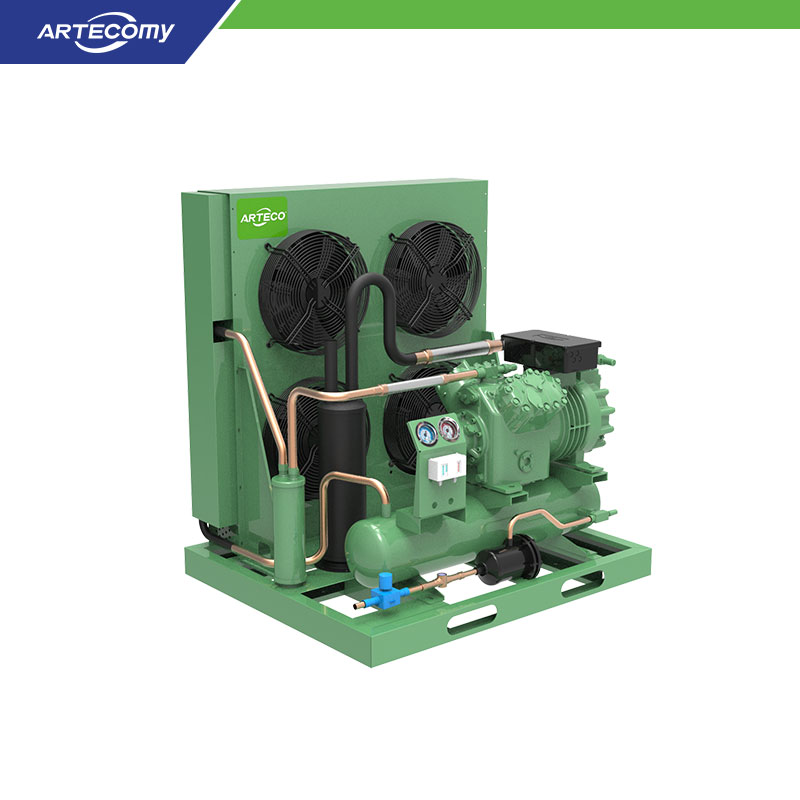

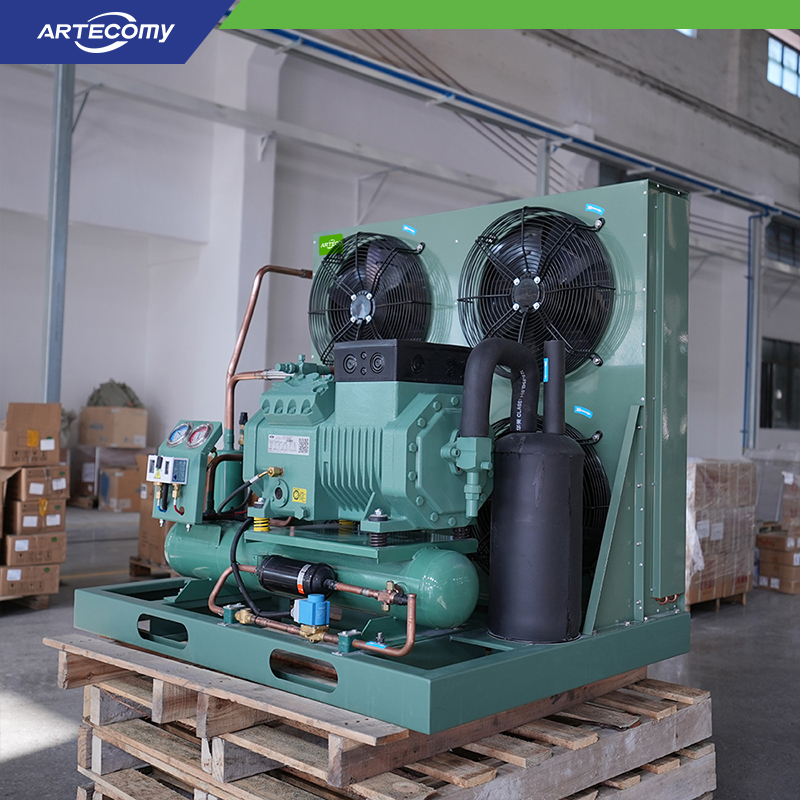

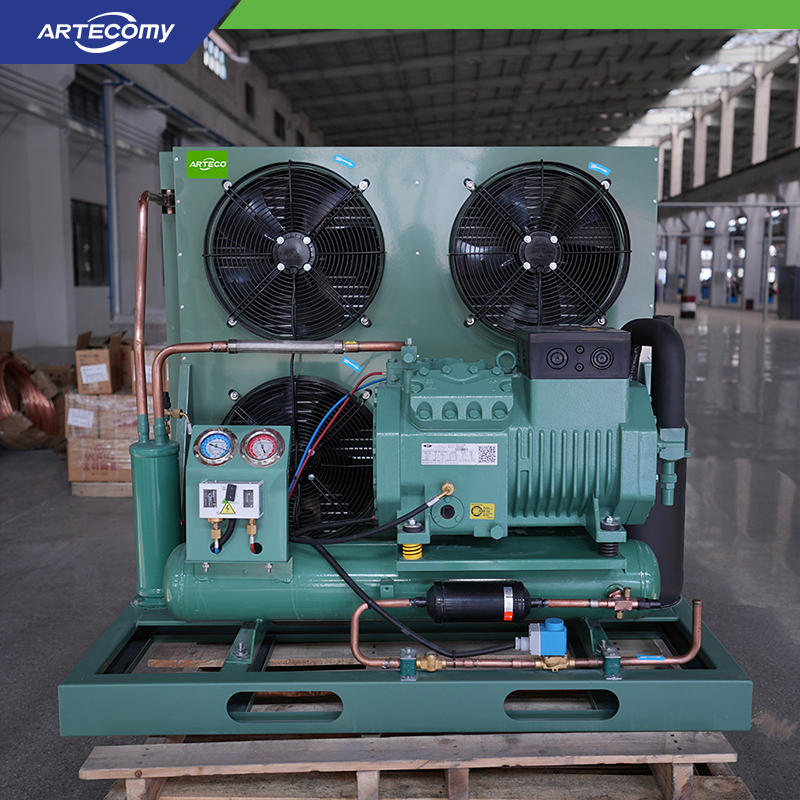

CP Series Open-Type Air-Cooled Condensing Units.
The CP Series offers a powerful and efficient solution for commercial refrigeration. Its integrated design and reliable components make it a smart choice for businesses seeking to optimize their cold storage operations. Temperature -5°C to 5°C.
Product Parameter
| Model | CPBBF12M | CPBBF15M | CPBBF20M | CPBBF25M | CPBBF30M | CPBBF35M | CPBBF40M |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -5℃~5℃ |

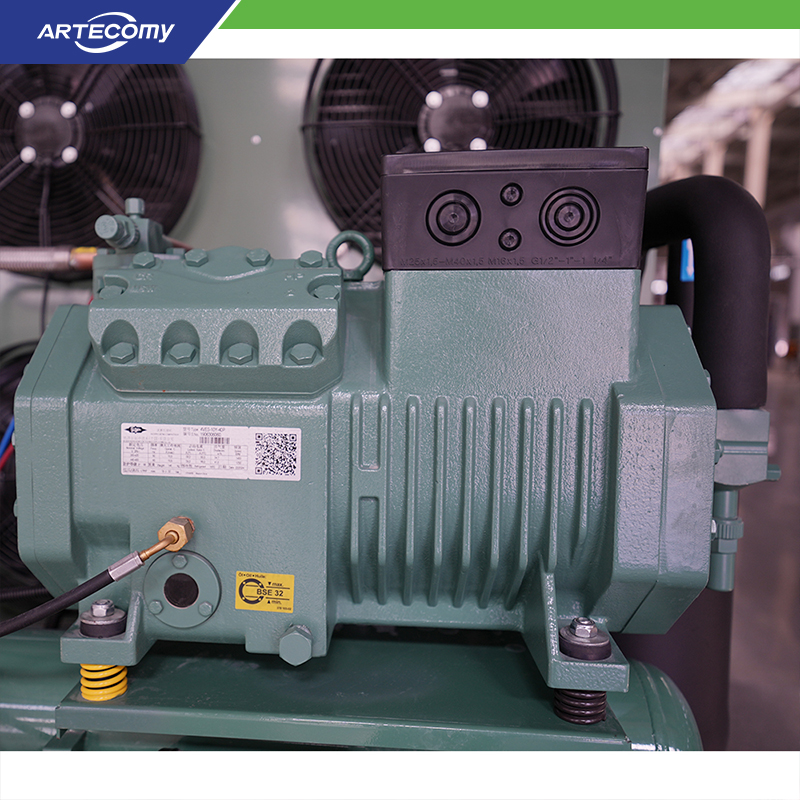

| Compressor | Model | 4TES-12Y | 4PES-15Y | 4NES-20Y | 4HE-25Y | 4GE-30Y | 4FE-35Y | 6GE-40Y |
| Max.I(A) | 25.1 | 28.2 | 33.2 | 44.0 | 51.2 | 62.1 | 73.9 |
| Capacity/Power KW) | Evap. | R22 | -5℃ | 25.6/8.8 | 29.3/10.1 | 34.6/11.8 | 46.1/15.9 | 53.6/18.3 | 63.8/22.0 | 79.5/27.4 |
| -8℃ | 22.6/8.4 | 25.8/9.5 | 30.5/11.2 | 40.8/15.1 | 47.7/17.4 | 56.5/20.9 | 70.3/26.1 |
| -10℃ | 20.8/8.1 | 23.7/9.2 | 28.1/10.8 | 37.6/14.5 | 43.7/16.8 | 52.1/20.1 | 64.8/25.1 |
| R404A R507A | -5℃ | 25.0/9.9 | 28.4/11.2 | 34.0/13.3 | 44.9/17.6 | 51.5/20.3 | 61.7/25.3 | 74.9/30.3 |
| -8℃ | 22.0/9.3 | 24.9/10.5 | 30.0/12.6 | 39.8/16.7 | 45.7/19.3 | 54.9/24.0 | 66.5/28.8 |
| -10℃ | 20.2/8.9 | 22.9/10.1 | 27.6/12.1 | 36.7/16.1 | 42.2/18.6 | 50.9/23.1 | 61.6/27.8 |
| Fan | Voltage (V) | 3P/380V/50Hz |
| Current(A) | 1.8 | 2.4 | 2.4 | 4.4 | 4.4 | 5.1 | 6.6 |
| Power(W) | 216×4 | 290×4 | 290×4 | 548×4 | 548×4 | 670×4 | 548×6 |
| Rev.(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Suction Line(mm) | φ35 | φ42 | φ42 | φ54 | φ54 | φ54 | φ54 |
| Liquid Line(mm) | φ16 | φ22 | φ22 | φ22 | φ22 | φ22 | φ22 |
| Weight | kg | 305 | 336 | 349 | 451 | 468 | 489 | 593 |
| Size | L (mm) | 1260 | 1260 | 1260 | 1650 | 1650 | 1650 | 2350 |
| W (mm) | 950 | 1050 | 1050 | 1180 | 1180 | 1180 | 1180 |
| H (mm) | 1340 | 1340 | 1340 | 1630 | 1630 | 1630 | 1630 |
|
