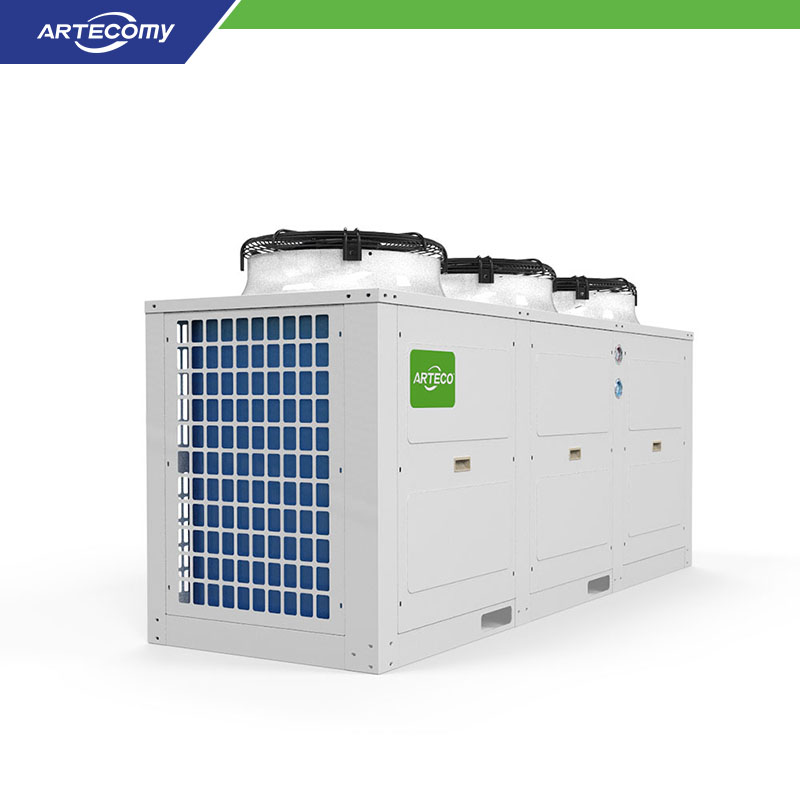

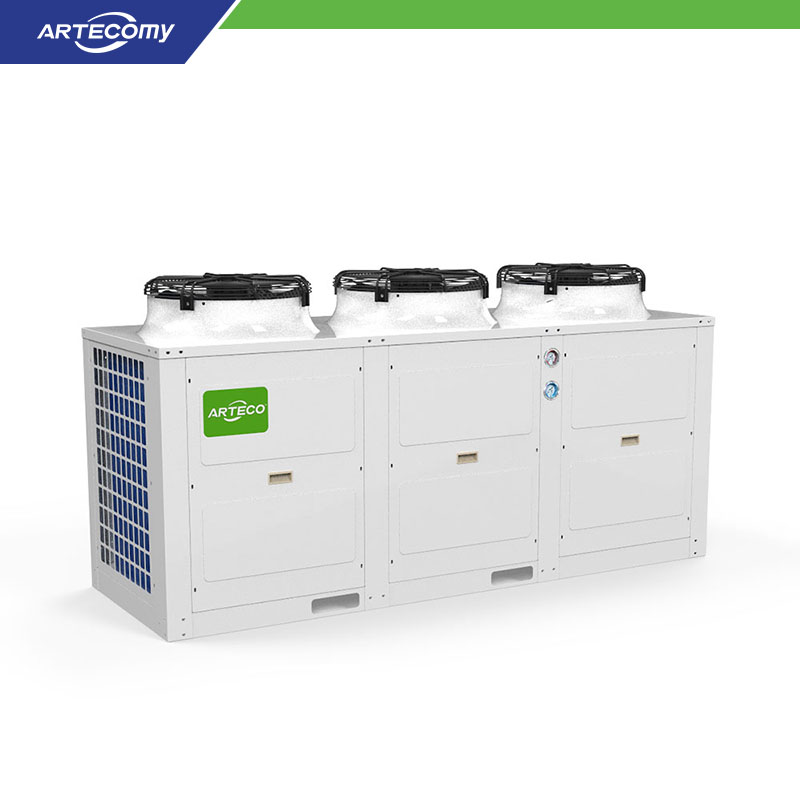

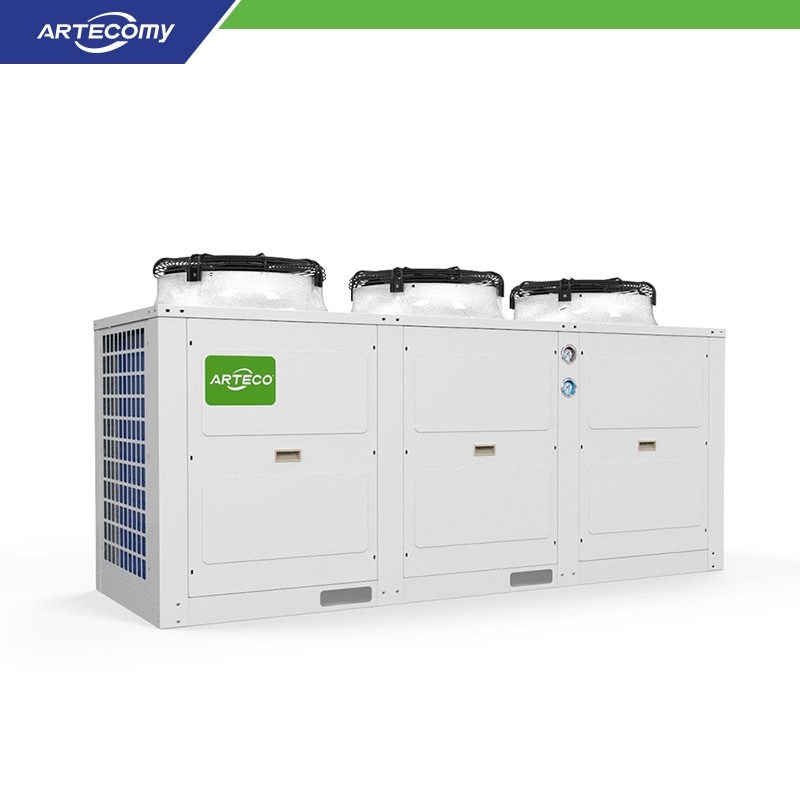

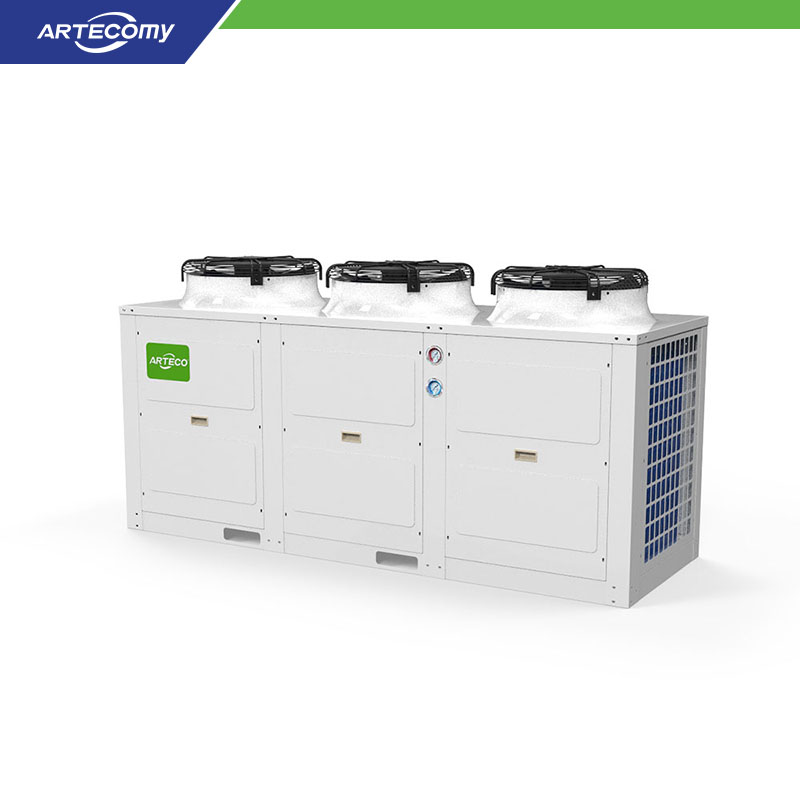

The BT series condenser adopts a U-shaped structure design, with three sides for air inlet and the top for air outlet, with a larger windward side, low wind resistance, and good heat transfer effect.
Adopting a box shaped structure, the wind ring adopts a high wind ring design with large rounded corners that are stretched as a whole, which has good air guiding effect and clean appearance.
1. Heat exchange tubes: High efficiency internally threaded copper tubes with a diameter of 9.52 are used, arranged in a triangular pattern with a tube spacing of 25 x 21.65, resulting in high heat exchange efficiency.
2. Hydrophilic aluminum foil corrugated aluminum sheet; The fin space is 1.8mm.
3. The fan specifications adopt external rotor fans with diameters of 450, 500, and 630; Product test pressure: 30bar.
4. Can meet the needs of refrigerants such as R404A, R507A, R448A, R449A, R134A, R22, etc.
Product Parameter
|
Model
|
Heat Exchange (KW)
|
Area (m²)
|
Tube Volume (dm³)
|
Fan
|
Noise dB(A)
|
Take Over Specifications
|
Weight (kg)
|
|
ΔT=15K
|
Air Volume (m³/h)
|
Power (W)
|
Electric Current (A)
|
Intake
|
Transudate
|
|
BT32/451AF
|
14.0
|
32.5
|
3.7
|
4500
|
290
|
0.6
|
68
|
Φ19
|
Φ16
|
88
|
|
BT43/451AF
|
16.3
|
43.0
|
4.9
|
4500
|
290
|
0.6
|
68
|
Φ19
|
Φ16
|
92
|
|
BT59/452AF
|
26.5
|
59.4
|
6.8
|
9000
|
580
|
1.2
|
69
|
Φ28
|
Φ19
|
135
|
|
BT76/452AF
|
30.5
|
75.8
|
8.7
|
9000
|
580
|
1.2
|
69
|
Φ28
|
Φ19
|
140
|
|
BT55/501AF
|
22.9
|
55.2
|
6.3
|
7000
|
548
|
1.1
|
72
|
Φ28
|
Φ19
|
123
|
|
BT70/501AF
|
26.0
|
70.4
|
8.1
|
7000
|
548
|
1.1
|
72
|
Φ28
|
Φ19
|
131
|
|
BT103/502AF
|
44.0
|
102.6
|
11.8
|
14000
|
1096
|
2.2
|
73
|
Φ28
|
Φ22
|
180
|
|
BT133/502AF
|
50.7
|
133.6
|
15.4
|
14000
|
1096
|
2.2
|
73
|
Φ28
|
Φ22
|
190
|
|
BT164/632AF
|
68.4
|
164.3
|
18.9
|
21000
|
1874
|
3.5
|
78
|
Φ35
|
Φ28
|
239
|
|
BT193/632AF
|
74.5
|
193.4
|
22.2
|
21000
|
1874
|
3.5
|
78
|
Φ35
|
Φ28
|
248
|
|
BT196/633AF
|
89.4
|
196.0
|
22.6
|
30500
|
2811
|
5.2
|
79
|
Φ35
|
Φ28
|
321
|
|
BT232/633AF
|
99.1
|
232.0
|
26.7
|
30500
|
2811
|
5.2
|
79
|
Φ35
|
Φ28
|
333
|
|
Model
|
External Dimensions (mm)
|
Installation Size (mm)
|
|
L
|
W
|
H
|
A
|
B
|
Mounting Hole
|
|
BT*/451AF
|
880
|
715
|
870
|
380
|
665
|
Φ13
|
|
BT*/452AF
|
1420
|
715
|
1070
|
700
|
665
|
Φ13
|
|
BT*/501AF
|
1050
|
815
|
1102
|
500
|
765
|
Φ13
|
|
BT*/502AF
|
1650
|
815
|
1202
|
800
|
765
|
Φ13
|
|
BT*/632AF
|
1850
|
915
|
1329
|
900
|
865
|
Φ13
|
|
BT*/633AF
|
2500
|
915
|
1329
|
900
|
865
|
Φ13
|
