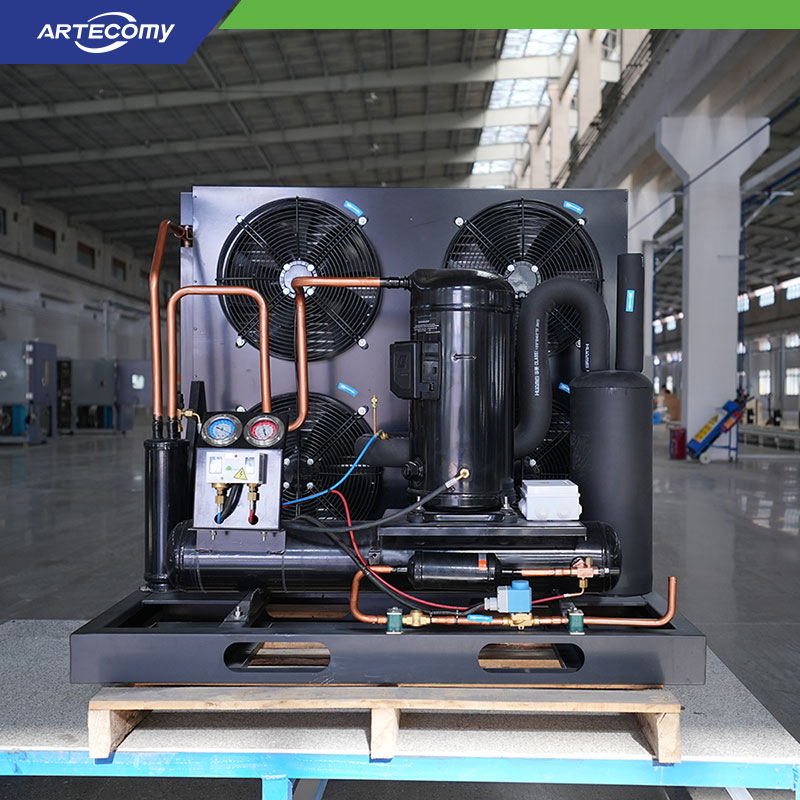

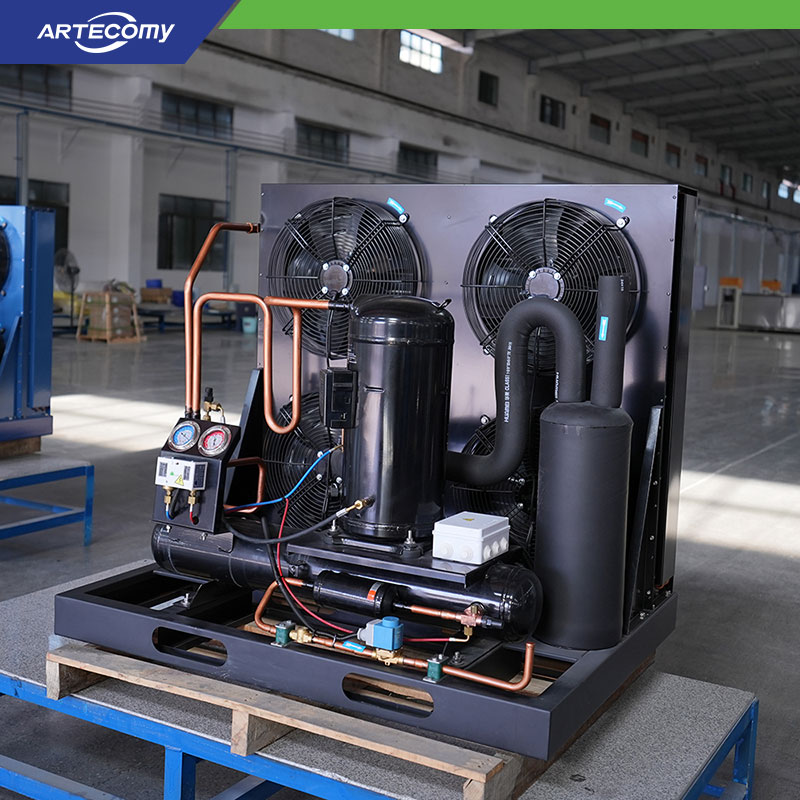

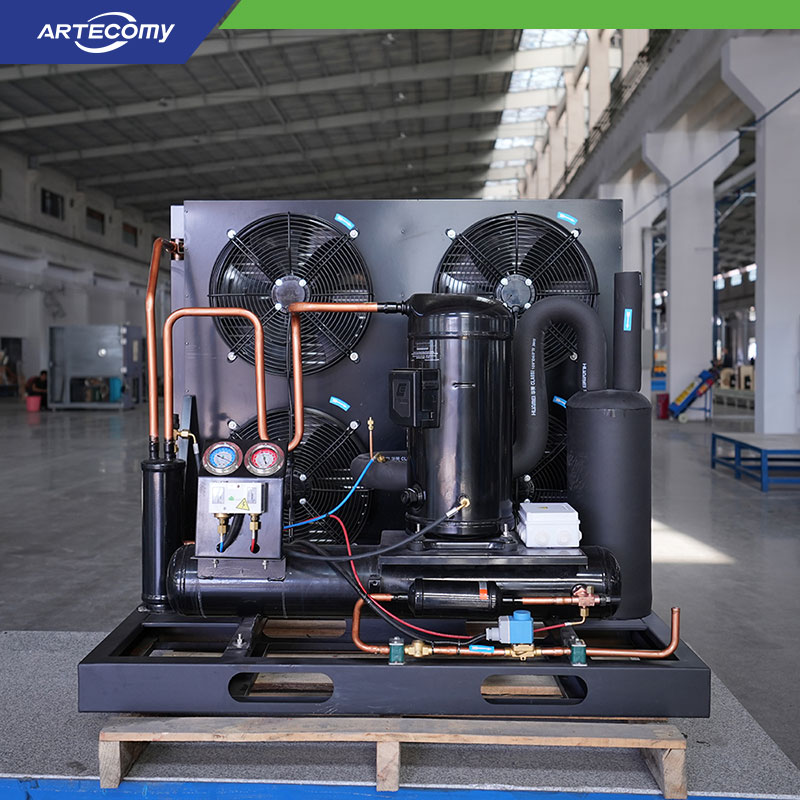

Engineered for demanding applications, our CV series open-type air-cooled condensing units deliver precise temperature control from -15℃ down to a frigid -35℃.
Powered by industry-leading Emerson Copeland ZB/ZFI scroll compressors, these units guarantee exceptional reliability and longevity.

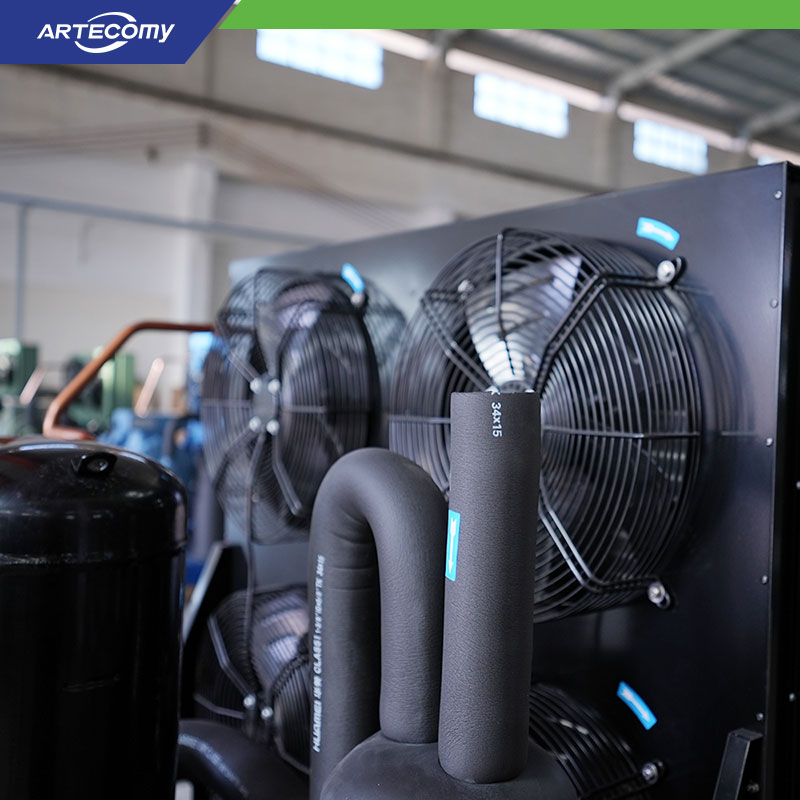

Designed for efficiency, the compact, single-frame construction simplifies maintenance while external rotor fans minimize noise and maximize airflow.
Versatile refrigerant compatibility (R22, R404A, R507A, R448A, R449A) ensures seamless integration into diverse cold storage setups.
Product Parameter
| Model | CVEBF15L | CVEBF18L | CVEBF20L | CVEBF25L | CVEBF30L | CVEBF40L |
| Power Supply | 3P/380V/50Hz |
| Apply Temp. | -15℃～-35℃ |
| Compressor | Model | ZFI59KQE | ZFI68KQE | ZFI81KQE | ZFI96KQE | ZFI122KQE | ZFI140KQE |
| Max.I(A) | 27.0 | 28.3 | 40.0 | 52.0 | 65.4 | 67.8 |
| Capacity/Power KW) | Evap. | R404A R507A | -15℃ | 24.1/10.7 | 27.3/12.6 | 32.1/15.3 | 41.5/18.4 | 52.3/22.4 | 57.6/24.4 |
| -20℃ | 20.5/10.2 | 23.2/11.8 | 27.3/14.4 | 35.0/17.6 | 44.0/21.4 | 48.3/23.3 |
| -25℃ | 17.4/9.4 | 19.6/10.8 | 23.1/13.3 | 29.5/16.3 | 37.2/19.8 | 40.7/21.6 |
| -30℃ | 14.5/8.8 | 16.3/10.2 | 19.2/12.4 | 24.6/15.3 | 31.0/18.6 | 33.9/20.4 |
| -35℃ | 12.1/8.2 | 13.6/9.5 | 16.1/11.6 | 20.4/14.4 | 25.7/17.6 | 28.1/19.2 |
| -40℃ | 10.4/7.6 | 11.6/8.8 | 13.7/10.7 | 16.8/13.5 | 21.2/16.4 | 23.2/17.9 |
| Fan | Voltage (V) | 3P/380V/50Hz |
| Current(A) | 1.8 | 2.4 | 2.4 | 4.4 | 4.4 | 5.1 |
| Power(W) | 216×4 | 290×4 | 290×4 | 548×4 | 548×4 | 670×4 |
| Rev.(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Suction Line(mm) | φ35 | φ35 | φ35 | φ42 | φ42 | φ42 |
| Liquid Line(mm) | φ19 | φ19 | φ19 | φ22 | φ22 | φ22 |
| Weight | kg | 217 | 239 | 248 | 416 | 435 | 458 |
| Size | L (mm) | 1260 | 1260 | 1260 | 1650 | 1650 | 1650 |
| W (mm) | 950 | 950 | 950 | 1100 | 1100 | 1100 |
| H (mm) | 1340 | 1340 | 1340 | 1630 | 1630 | 1630 |
|
